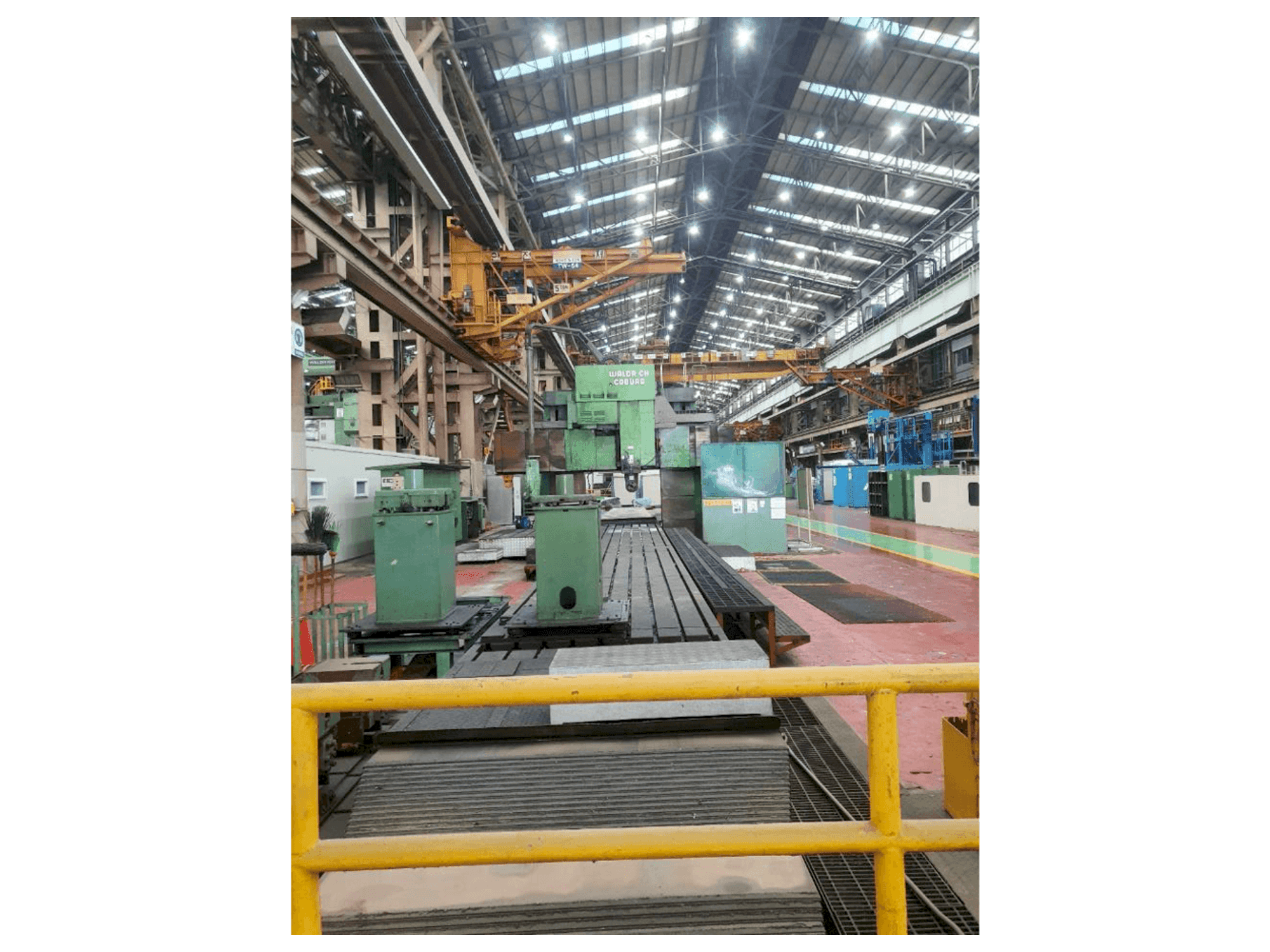

- WALDRICH COBURG plano milling machine
This WALDRICH COBURG plano milling machine was built was refurbished in 1999. It is equipped with a Siemens 840D control unit. The machine has a spindle speed of 6 - 750 rpm and a distance between columns of 2105mm.
Overview
- brand: WALDRICH COBURG
- year: 1999
- MODEL: -
- application type: Milling
- Location: South Korea
- machine type: Gantry Milling Machine
- control unit brand: SIEMENS
Technical Information - WALDRICH COBURG -
Control Unit
- Control Brand: SIEMENS
- Control Model: 840C
Movement
- X-axis Travel: 13741 mm
- Y-axis Travel: 2760 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 75 kW
- Spindle Speed: 750 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Distance between columns 2,105mm
- Distance between spindle nose and table surface 2,035mm
- Spindle torque 8,000nm
- Table size (table 1, table 2 separate) 1,800 x 6,500mm
- Table size (table 1, table 2 coupled) 1,800 x 13,000mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
