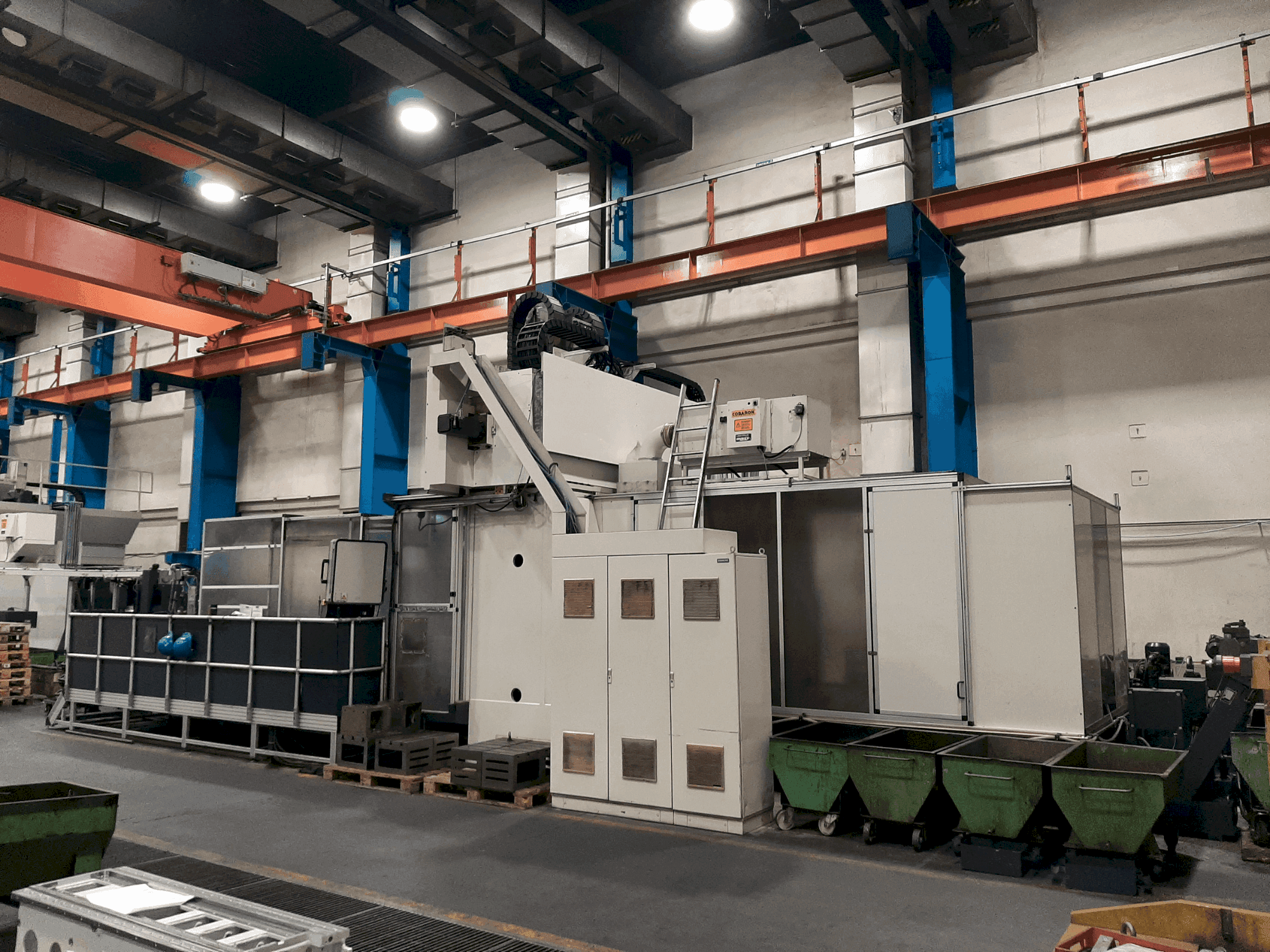

MIKROMAT - 20VDE-MIL-MIK-1998-00002

Additional equipment

• Automatic Tool Changer: Included / Number of Places in the Magazine: 90 / Max. Tool Diameter: 125 mm (300 mm with free secondary positions) / Max. Tool Length: 450 mm/ Max. Tool Weight: 30 kg /Tool Change Time: Approx. 5 sec
• Compressed Air Connection / Air Volume: 6 bar - 5 m³/h / Nominal Voltage: 3 AC 400 V / Control Voltage: DC 24 V / Connected Load: Basic machine 65 kW
• Cooling Lubricant Supply and Filter System: Included / Tank Capacity: 1500 l / Pump for External Cooling: Q= 20/40/60 l/min switchable / Pump for Internal Cooling: Q= 35 l/min at 50 bar Work Area Guard with Lighting: Included / Set of Chip Conveyors: Included, with scraper belt type, discharge height 1000 mm

Machine Benefits

Technical Machine Benefits

• Traverse path: x (table): 5200 mm/ y (slide): 3400 mm /z (spindle): 1250 mm
• Traverse path: x (table): 5200 mm y (slide): 3400 mm /z (spindle): 1250 mm
• Max. Feed force (x, y, z): 15 kn
• Clamping surface: 2000 x 5000 mm / max. Table load: 100 kn / width / spacing of table grooves: 22 / 160 mm / passage width: 2400 mm / distance between spindle nose and table surface: 500 to 1750 mm
• Spindle speeds: 10 to 5000 rpm / max. Power of the spindle motor: 37/46 kw / max. Spindle torque: 1000/1250 nm / spindle head for tool shank: sk 50
• Control type: microprocessor control siemens sinumerik 840d / screen: colour screen 10. 4 inch tft display / number of axes: 3 (x, y, z)
• Control system: integrated with various functionalities including spindle orientation, interpolation, and an electronic handwheel
• Programming and data transfer: includes comprehensive programming capabilities and data transfer options via the universal interface v24/rs-232
• Accessories: multiple accessories and additional device functionalities included, focusing on enhanced efficiency and safety
