➤ Used WAGNER FCL 3280 For Sale | gindumac.com

Show in original language

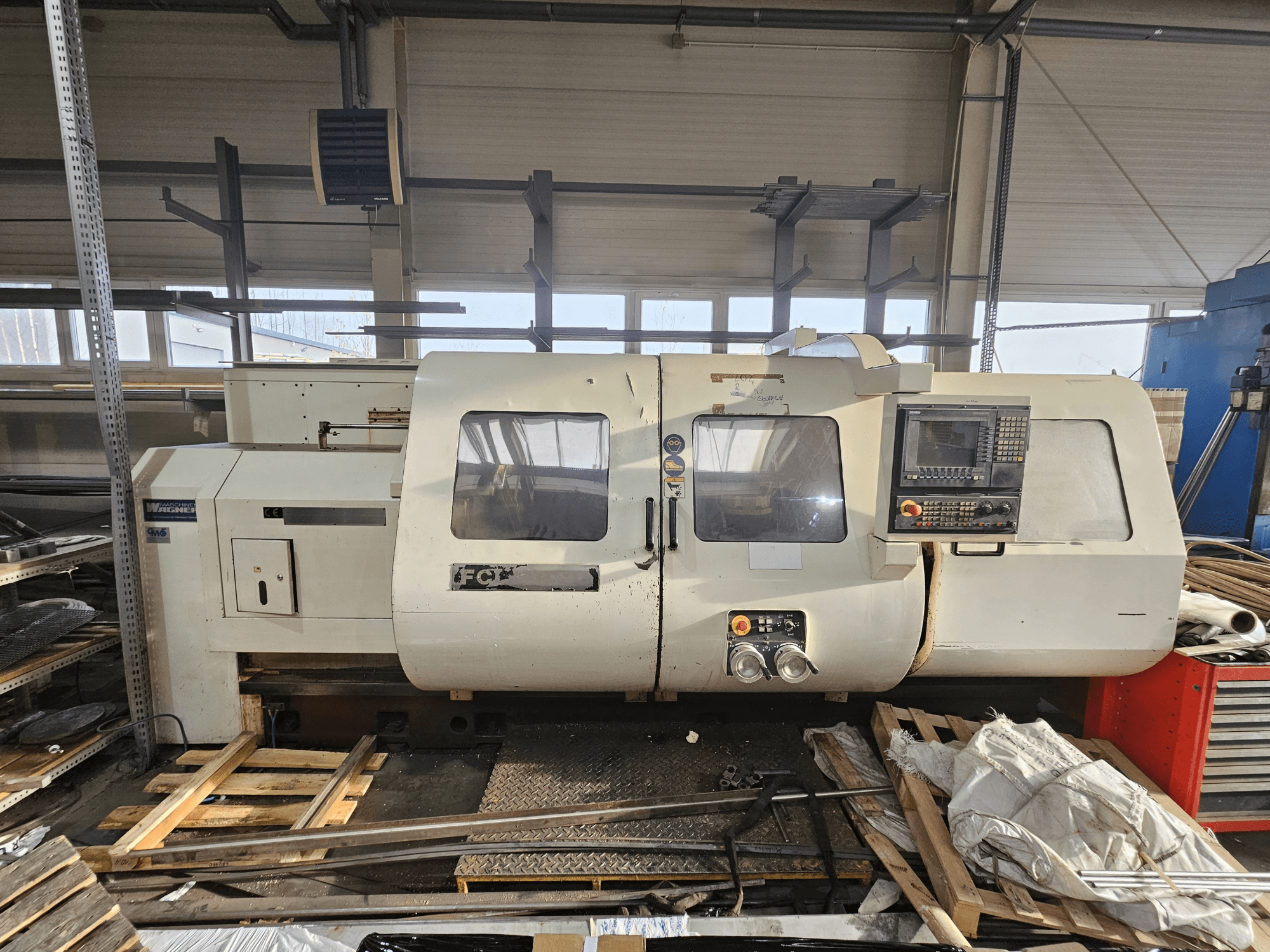

This WAGNER FCL 3280 was manufactured in 2002. It features a spindle bore of 134 mm and a spindle speed range up to 1200 rpm. The machine supports a maximum workpiece weight of 1800 kg with tailstock and steady rest. It offers rapid traverse rates of 10,000 mm/min for both Z and X axes. If you are looking to get high-quality turning capabilities, consider the WAGNER FCL 3280 machine we have for sale. Contact us for more information.

Overview

brand: WAGNER
year: 2002
MODEL: FCL 3280
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - WAGNER FCL 3280

Control Unit

Control Brand: SIEMENS

Dimensions

Machine Height: 2200 mm
Machine Length: 4660 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 1200 RPM

Additional Information

Turning capacity
- Center height: 405 mm
- Max. swing over bed: 815 mm
- Max. swing over cross slide: 470 mm
Spindle
- Spindle bore: 134 mm
Bed & tailstock
- Bed width: 510 mm
- Tailstock adjustment: Manual (Yes)
- Tailstock taper: MK6
- Quill travel: 250 mm
- Quill diameter: 100 mm
Feed & rapid traverse
- X-axis feed rate: 0–5000 mm/min
- Z-axis feed rate: 0–5000 mm/min
- X-axis rapid traverse: 10,000 mm/min
- Z-axis rapid traverse: 10,000 mm/min
Workpiece capacity
- Max. workpiece weight without tailstock & steady rest: 500 kg
- With tailstock: 1200 kg
- With tailstock & steady rest: 1800 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
