➤ Used TSUGAMI M08SYE-II For Sale | gindumac.com

Show in original language

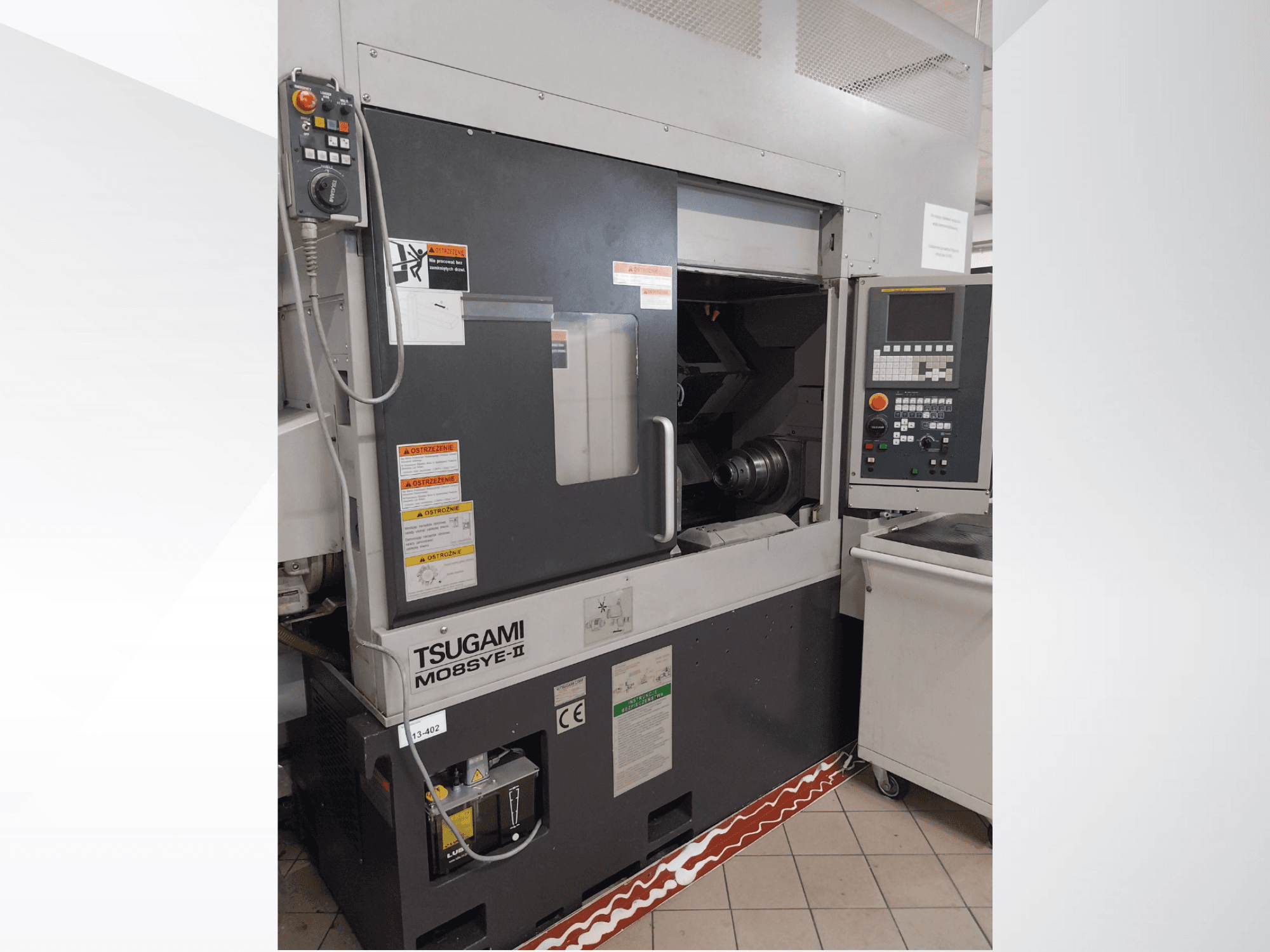

This 4-axis TSUGAMI M08SYE-II turn-mill centre was manufactured in 2017. It features a maximum machinable diameter of 280 mm, a machining length of 380 mm, and dual spindle speeds up to 4500 rpm. Equipped with a 12-station turret and a robot for part feeding, it offers efficient processing capabilities. Consider the opportunity to buy this TSUGAMI M08SYE-II turn-mill centre. Contact us for more information about this machine.

Overview

brand: TSUGAMI
year: 2017
MODEL: M08SYE-II
production hours: 25919
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - TSUGAMI M08SYE-II

Control Unit

Control Brand: FANUC
Control Model: Series 0i-TF

Dimensions

Machine Depth: 2470 mm
Machine Height: 1930 mm
Machine Weight: 6000 kg

Movement

X-axis Travel: 221 mm
Z-axis Travel: 400 mm

Additional Information

Additional information

Maximum machinable diameter: 280 mm / 65 mm (bar)
Maximum machining length: 380 mm
Number of turret stations: 12
Max. speed of driven tool: 5000 rpm
Driven tool motor power: 1.5 / 3.7 kW
Main spindle speed: 4500 rpm
Main spindle bore / bearing diameter: 73 / 100 mm
Main spindle motor: 7.5 / 11 kW
Back spindle speed: 4500 rpm
Back spindle bore / bearing diameter: 59 / 80 mm
Back spindle motor: 5.5 / 7.5 kW
Coolant pump power: 520 / 815 W (50 / 60 Hz)
Required electric capacity: 30 kVA
Equipped with a robot that feeds raw parts for processing
Full machine documentation + service reports available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
