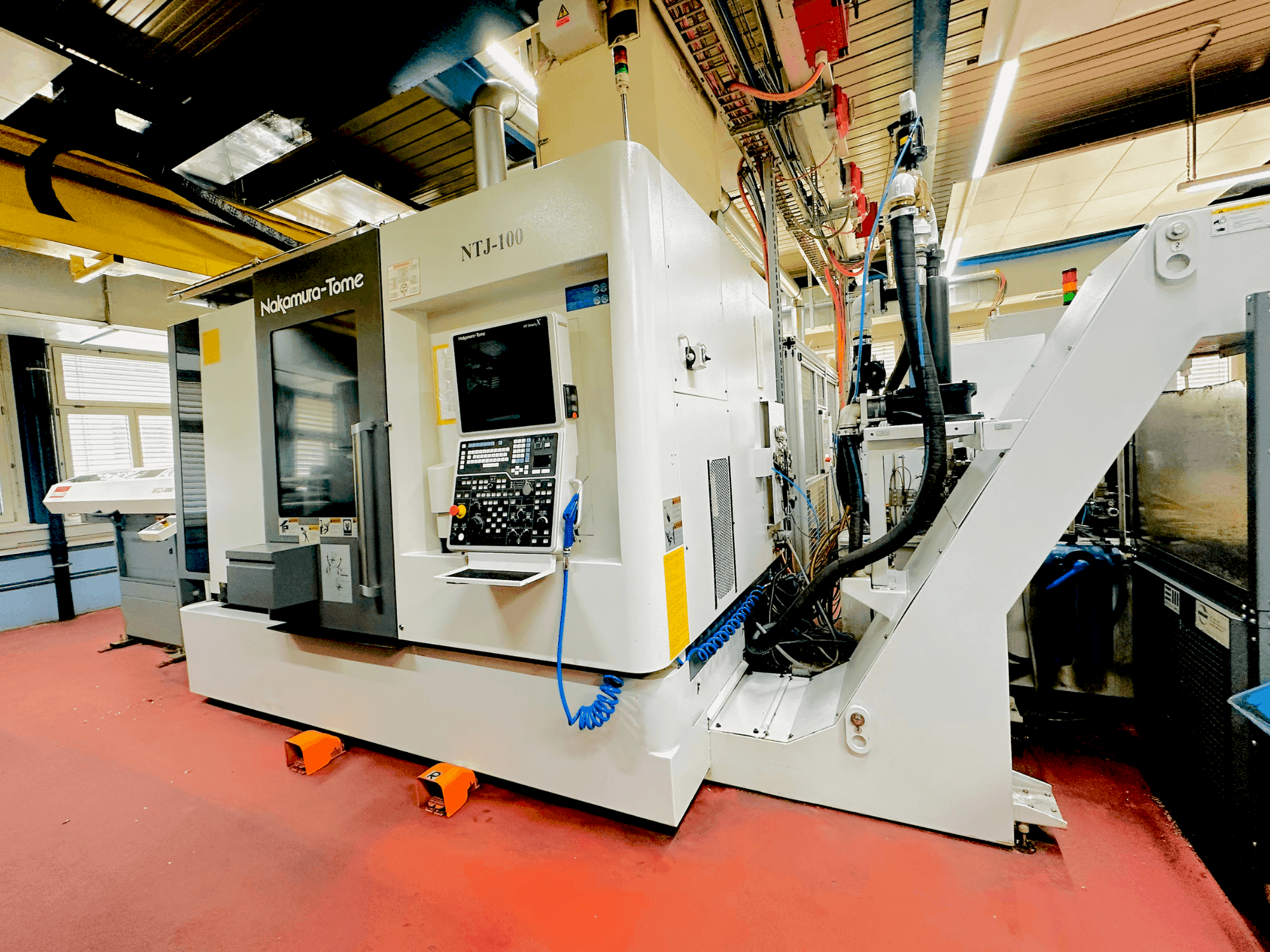

NAKAMURA - NTJ100CH-TUR-NAK-2017-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Increased bar capacity: 65 mm left, 51 mm right
  • - Workpiece measurement: han-bei measuring probe for automatic workpiece measurement (infrared or radio type) for left and right spindle
  • - Left + right, with auto swing-in type and 2x 4 measuring directions for quick and precise tool setting via the nc function.
  • - Operating time 43399h

Extra information

• - A Samsys bar loader including an extension and an Absolent extraction system are included. Additional Equipment Coolant System: Coolant supply through the spindle, bar capacity & 51 mm Coolant float switch for machine stop in case of insufficient coolant level Additional coolant flushing via the spindle left and right Chip Conveyor: Slat-belt chip conveyor interface with time interval control and alarm evaluation Parts Handling: Parts catcher type A, with collecting tray max. @ 65 x 150 mm long, 3.0 kg on the spindle side mounted on the left including plastic lining Safety and Environmental Control: Chuck blow-out device for left spindle Automatic power shut-off Preparation for oil mist extraction system with connection nozzle @ 150 mm Robot Handling: Pneumatic flap for robot handling installed on top of the door, opening approx. 400 × 400 mm Miscellaneous: Handwheel for manual tracking of defined contours Data server including 1 GB ATA memory card Interface for Knoll system Triple signal light
