➤ Used TRUMPF TrumaBend V85 Press For Sale | gindumac.com

Show in original language

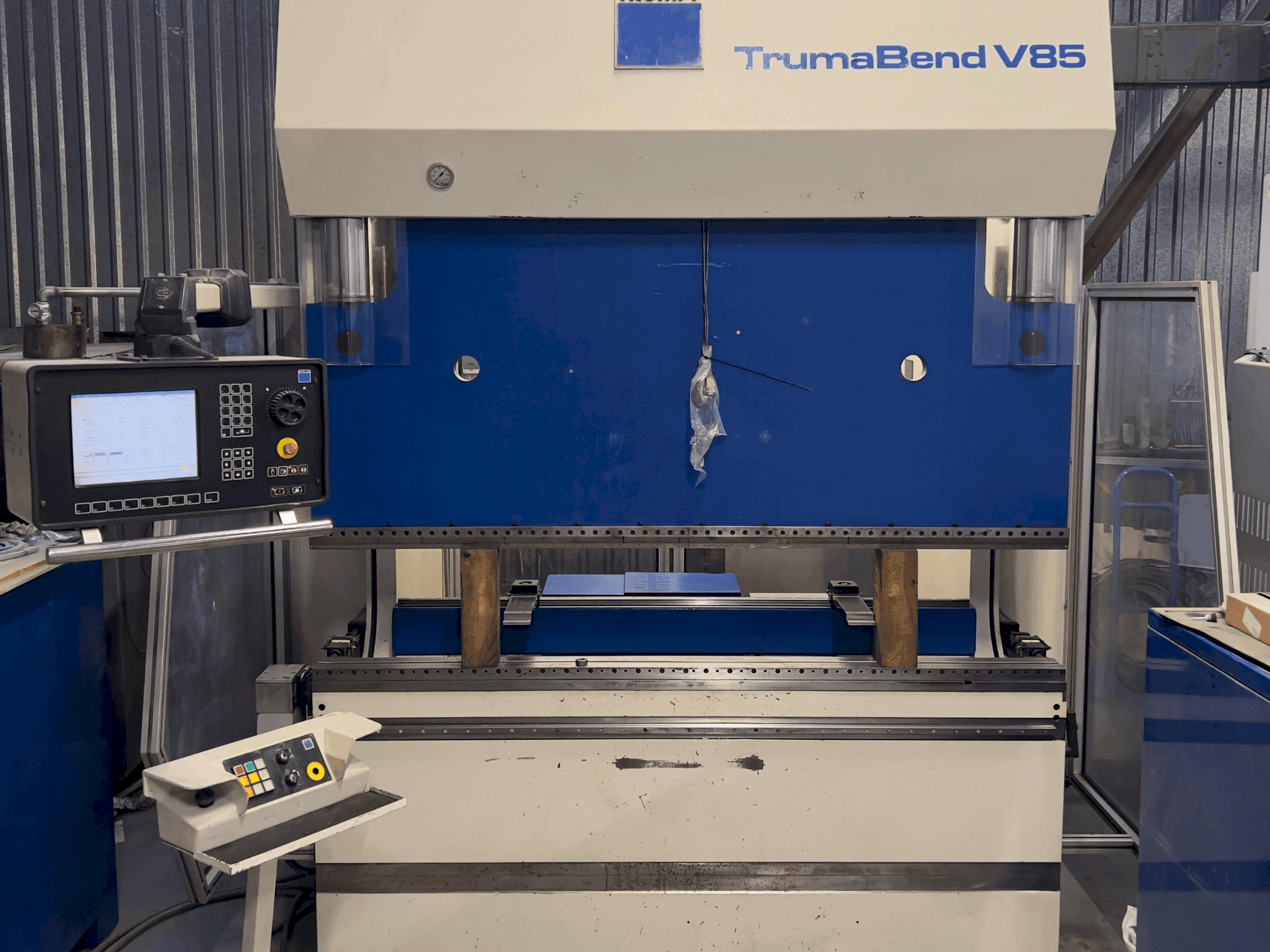

This TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features a pressing force of 85 tons, a stroke of 365 mm, and a bending length of 2050 mm. Equipped with DALEM CNC 3D software, it offers high working speed and precise control. Additional features include hydraulic clamping and motorized CNC back gauge systems. Consider the opportunity to buy this TRUMPF TrumaBend V85 press brake. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2001
MODEL: TrumaBend V85
production hours: 35900
application type: Bending
Location: Latvia
machine type: Press Brake
control unit brand: TRUMPF

Technical Information - TRUMPF TrumaBend V85

General Data

Measurements width: 2100 mm
Measurements depth: 2700 mm
Measurements height: 2900 mm
Machine weight: 9050 kg

Control Unit

Brand: TRUMPF
Model: n/a

Main drive

Pressing force: 850 kN
Bending length: 2050 mm
Stroke: 365 mm

Additional Information

Software: DALEM CNC 3D with extensive tool and program library
Max. operating pressure: 340 bar
Safety distance: 96 mm
Stopping time: 60 ms
Increased installation height / piston stroke
Motorized CNC back gauge system (X-axis)
Motorized CNC adjustment of back gauge height (R-axis)
Motorized CNC positioning of stop fingers (Z-axes)
Pneumatic CNC-controlled die displacement (I-axis)
Hydraulic clamping, top and bottom WILA TRUMPF
Integrated lighting inside working area
Side and rear protection (doors, laser-type safety)
Two foot pedals for flexible operation
Table support arms: 2 pcs.
High working speed with precise control
Power supply: 3 × 400 V / 50 Hz
Connected load: 13.0 kVA
Nominal current: 32.5 A
Control voltage: 24 V
Air connection: 6 bar

Additional equipment

Original manuals and wiring diagrams

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
