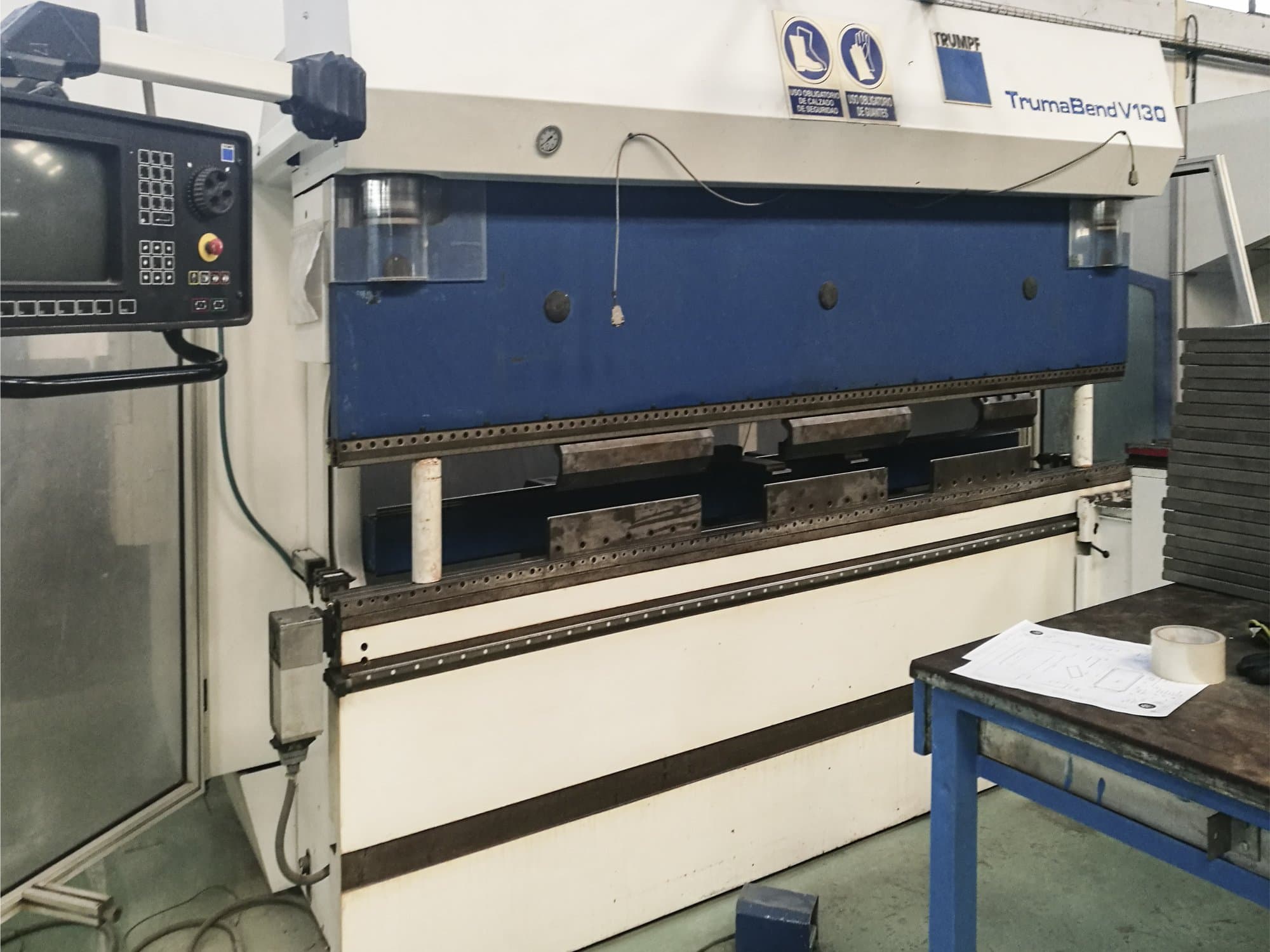

This Trumpf TrumaBend V130 Bending Machine was manufactured in 2001 in Austria and has a working record of 32195 production hours. Equipped with a Dalem DA-65 Control unit, this precise and easy-to-use machine stands out due to its hydraulic tool clamping system and comes in very good working condition as Trumpf maintenance was performed regularly. As additional equipment, several matrices as well as a punch are included.
Overview
- brand: TRUMPF
- year: 2001
- MODEL: TrumaBend V130
- production hours: 32195
- application type: Bending
- Location: Spain
- machine type: Bending machines
- availability: Sold
- control unit brand: Delem
- GINDUMAC ID: ES-BEN-TRU-2001-00001
Technical Information
General Data
- Measurements width: 3640 mm
- Measurements depth: 2210 mm
- Measurements height: 2885 mm
- Machine weight: 11250 kg
Control Unit
- Brand: Delem
- Model: DA-65
Main drive
- Pressing force: 1300 kN
- Bending length: 3060 mm
Movement
- Backgauge-X Movement: 860 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 16 kVA
- Air pressure: 6 bar
Additional Equipment
- - Punch, radius 1°
- - Matrix 8x3000mm 30°
- - Matrix 12x3000mm 30°
- - Matrix 16x3000mm 30°
- - Matrix 20x3000mm 30°
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
