TRUMPF - TruBend V5050DE-BEN-TRU-2007-00004

Name: TRUMPF TruBend V5050
Brand: TRUMPF
SKU: DE-BEN-TRU-2007-00004
Price: 43600 GBP
Availability: InStock

£ 43,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TruBend V5050 Press For Sale | gindumac.com

Show in original language

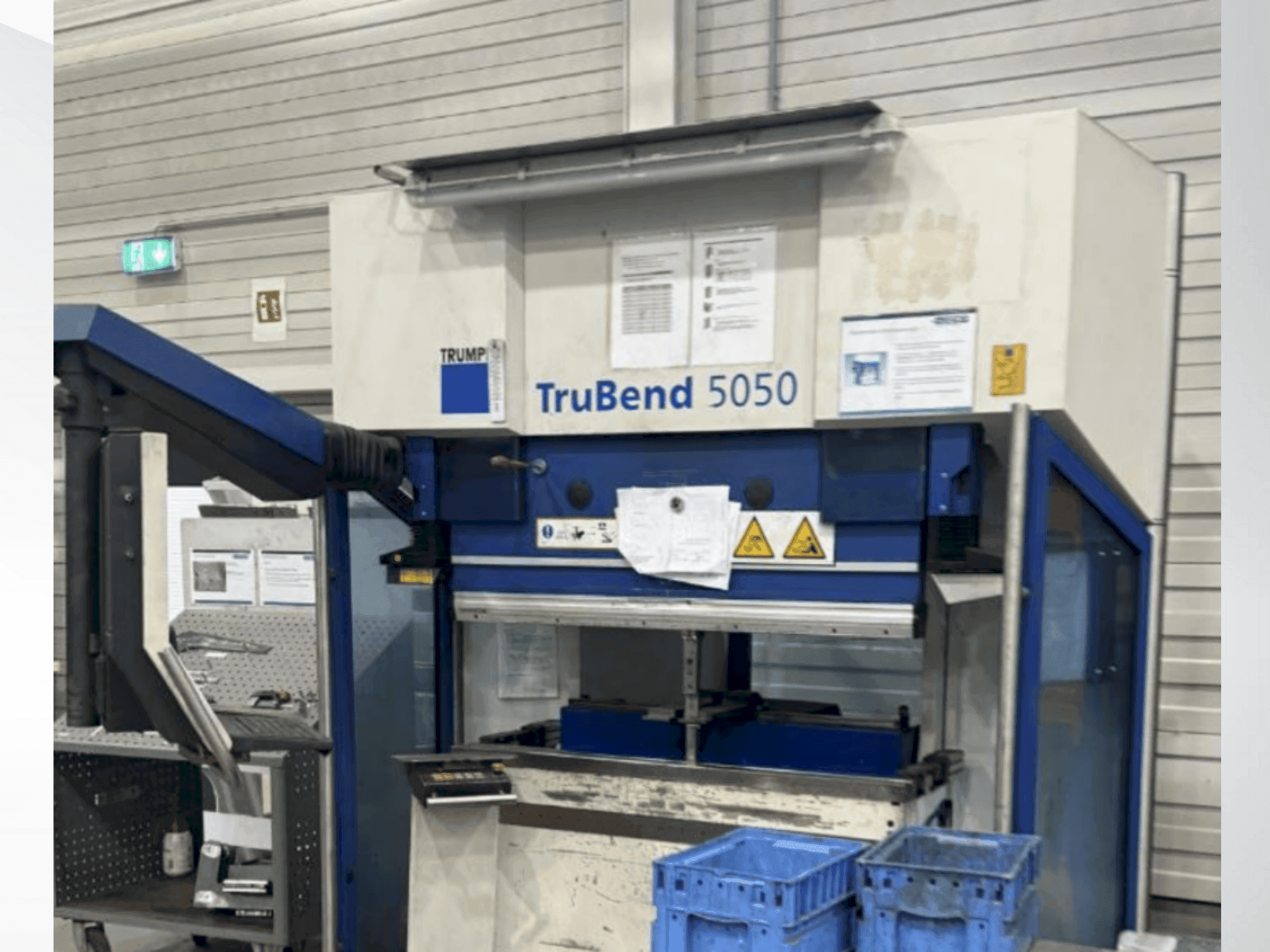

This TRUMPF TruBend V5050 press brake was manufactured in 2007. It features a press force of 500 kN and a bending length of 1275 mm. Equipped with a stable machine frame, electro-hydraulic upper drive, and a 2-axis backgauge system, it ensures precision and efficiency. Ideal for high-quality bending operations. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2007
MODEL: TruBend V5050
application type: Bending
Location: Germany
machine type: Press Brake

Technical Information - TRUMPF TruBend V5050

Additional Equipment

- Stable machine frame as a welded construction in all-steel construction / Pressure beam with high bending strength / Spherical bearing of the pressure beam with pressure beam inclined position / Electro-hydraulic upper drive with 2-cylinder technology / Proportional valve technology and switchable double pump / Modern block hydraulics with control valves mounted on the cylinder / Electronic pressure compensator / Measuring system with centrally mounted glass scales and temperature compensation / Upper tool holder system "New Standard Clamping" manual, hardened, self-centering, for vertical tool changes / Lower tool holder with hydraulic clamping, hardened / Programmable lower tool displacement (pneumatic, 2 positions) / 2-axis backgauge system with rack and pinion drive for X and R axes, 2 stop fingers with secure front adjustment / Machine control: TRUMPF TASC 6000 / Control panel with LCD keypad, foot switch for emergency up, down, and emergency stop / Safety device: integrated side doors / Control cabinet cooling (air-to-air heat exchanger) / Oil cooler / Network-capable / Modern machine design / Installation, commissioning, and instruction / Hydraulic upper tool clamping / BendGuard / TruBend documentation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Press force: 500 kn
- - Bending length: 1275 mm / free column clearance: 1040 mm / installation height: 385 mm
- - The machine was serviced annually by trumpf.
- - Trumpf maintenance contract.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
