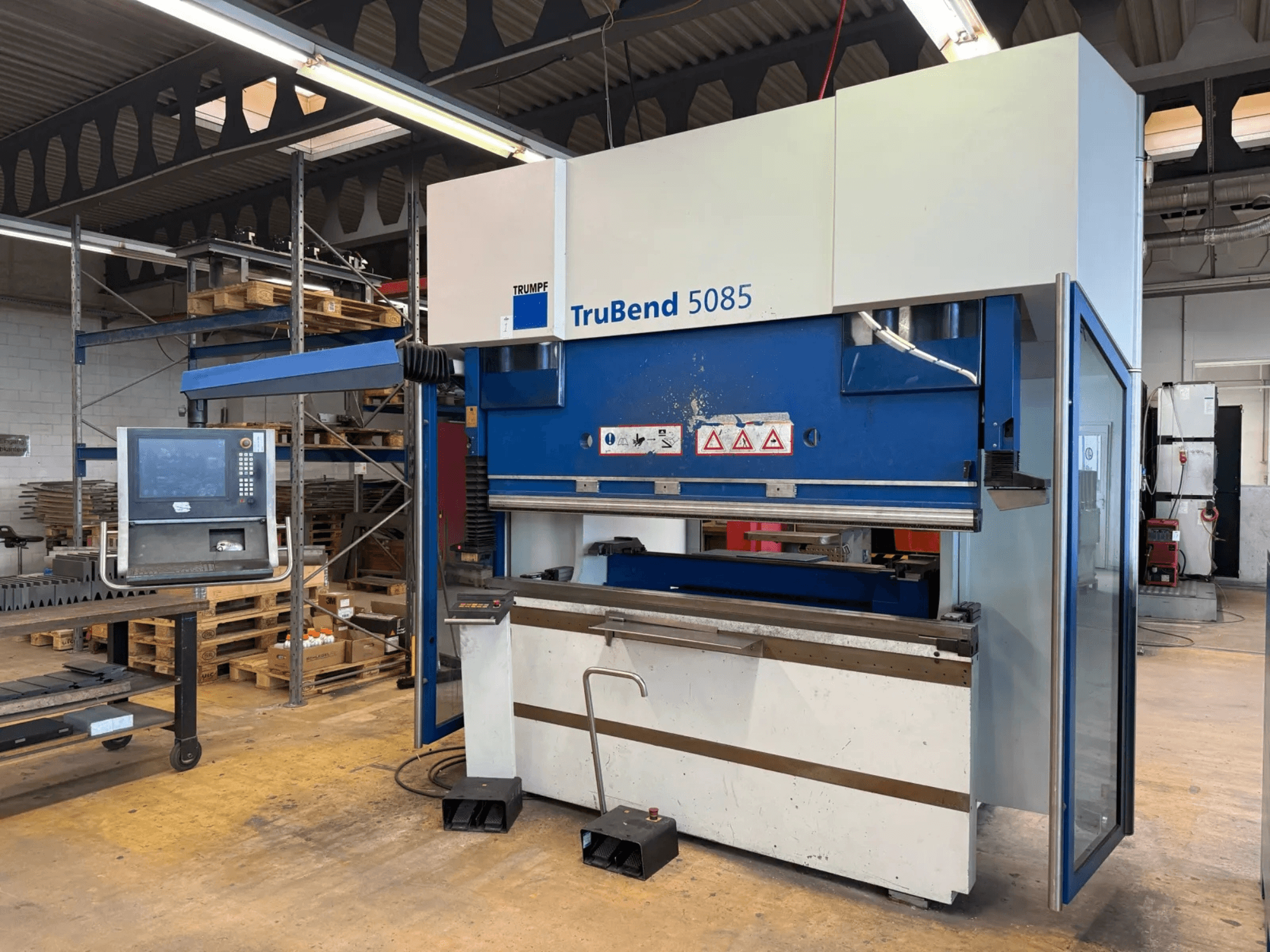

TRUMPF - TruBend 5085PL-BEN-TRU-2008-00002

CE marking: Yes

Distance between columns: approx. 1,750 mm

Throat depth: approx. 420 mm

Open height: approx. 385 mm

Operating pressure: 300 bar

CNC control: TRUMPF CNC control / TASC 6000

Backgauge: 5-axis CNC backgauge

• Axes: X, X5, R, Z1, Z2

• X-axis travel: approx. 600 mm

• R-axis travel: approx. 250 mm

Tooling/clamping: WILA hydraulic upper and lower tool clamping; Tooling system: WILA

Axis speeds:

• Y-axis rapid: approx. 220 mm/s

• Y-axis working: up to approx. 25 mm/s

• Y-axis return: approx. 220 mm/s

• X-axis: approx. 1,000–1,750 mm/s

• R-axis: approx. 330 mm/s

• Z-axis: approx. 1,750–2,500 mm/s

Ram/beam working hours: 1,932.8 h

Electrical:

• Supply voltage: 3 × 400 V

• Frequency: 50 Hz

• Nominal current: 24.0 A

• Connected load: 17.0 kVA

• Control voltage: 24 V DC

Pneumatics: Compressed air connection 6 bar

Safety:

• Stopping time: max. 95 ms

• Stopping distance at 220 mm/s: max. 10 mm

• Stopping distance at 160 mm/s: max. 8.5 mm

• Minimum safety distance: 190 mm
