➤ Used TRUMPF TruBend 5085 - Press For Sale | gindumac.com

Show in original language

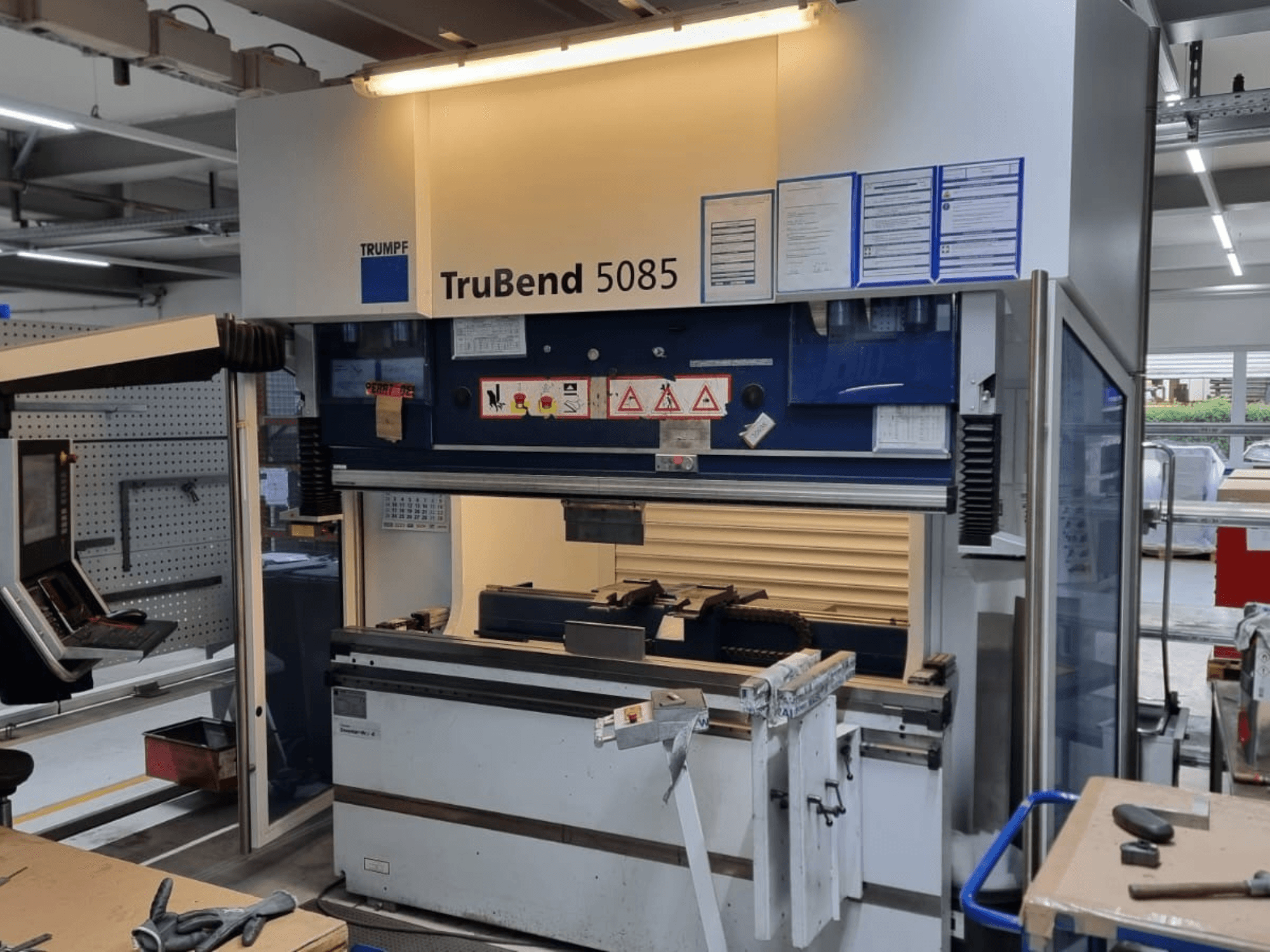

This 5 axis TRUMPF TruBend 5085 was manufactured in 2012. It features a press force of 850 kN and a bending length of 2,210 mm, making it suitable for various bending applications. With an operating interface of Touchpoint TruBend, it offers user-friendly operation. Consider the opportunity to buy this TRUMPF TruBend 5085 press brake. Contact us for further details.

Overview

brand: TRUMPF
year: 2012
MODEL: TruBend 5085
production hours: 33318
application type: Bending
Location: Germany
machine type: Press Brake
control unit brand: TRUMPF

Technical Information - TRUMPF TruBend 5085

Control Unit

Control Brand: TRUMPF
Control Model: TASC 6000

Dimensions

Machine Height: 2840 mm
Machine Length: 3020 mm
Machine Weight: 8300 kg
Machine Width: 1800 mm

Movement

Number of Axes: 5

Technical Specification

Bending Length: 2210 mm
Pressing Force: 850 Kn

Additional Information

Machine Type: Hydraulic Press Brake
Clearance: 1,750 mm
Usable installation height: 385 mm (optional increased: 615 mm)
Throat depth: 420 mm
Operating interface: Touchpoint TruBend
Max. Y-axis speed (operating step, optional): 25 mm/s
Press Force: Max. 850 kN (85 Tons)
Stroke: Max. 445.0 mm
Operating Pressure: Max. 300 bar
Press Mass: 8,200 kg
Nominal Current: 24.0 A
Voltage: 3x400 V
Frequency: 50 Hz
Connected Load: 17.0 kVA
Control Voltage: 24 V DC
Pneumatic Connection: 6.0 bar
Total Machine Working Hours: 33,318 h (As of Feb 2025)
Hydraulic System Working Hours: 15,786 h (As of Feb 2025)
Control System: TASC 6000
Backgauge System: 2-finger stop 5-axis system
Tool Clamping: Hydraulic upper and lower tool clamping via Trumpf tool clamping system
Tool Holder: Standard Trumpf tool holder system
Maintenance History: Annual maintenance carried out by TRUMPF; records available from 2019 to 2025

Last Maintenance Date: February 13, 2025
Estimated Dimensions: Length: 3,020 mm, Width: 1,800 mm, Height: 2,840 mm, Weight: 8,300 kg

Included Items: Press brake and foot switch only
Tools/dies are excluded from the scope of delivery

Safety Equipment: BendGuard laser safety system alignment and function verified in working order
Control System: IPC control unit with backup clone successfully generated, buffer battery and air filters recently replaced

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
