TRAUB - TNA 300DE-TUR-TRA-2000-00003

£ 10,393
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

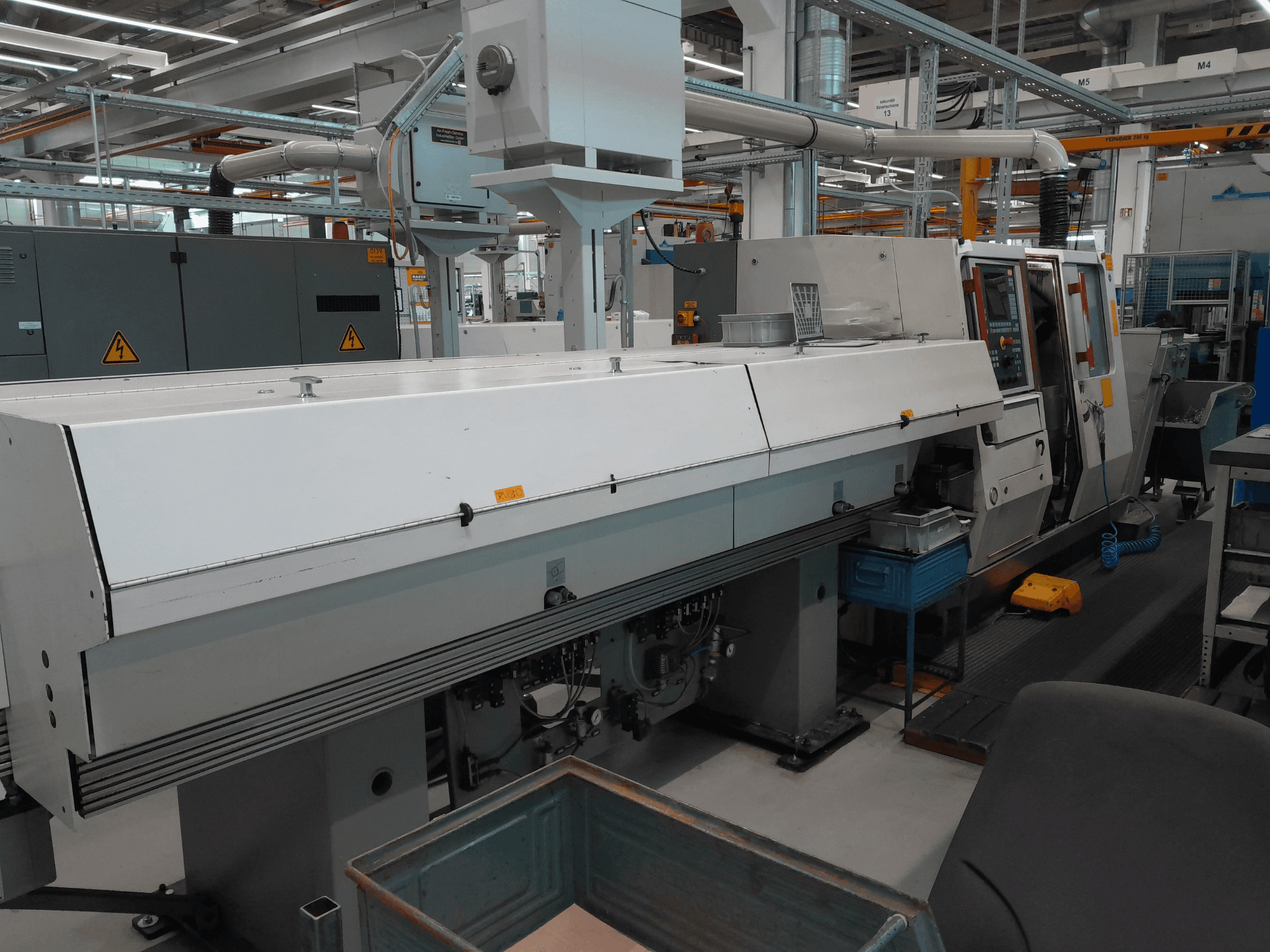

This 3-axis TRAUB TNA 300 horizontal turning machine was manufactured in 2000. It features a spindle diameter of 65 mm and includes a high-pressure coolant system, driven tools with 4 kW power, and an automatic bar change system. The machine is equipped with a chip conveyor and tool monitoring systems for enhanced efficiency. If you are looking to get high-quality turning capabilities, consider the TRAUB TNA 300 machine we have for sale. Contact us for further details.

Overview

  • brand: TRAUB
  • year: 2000
  • MODEL: TNA 300
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand:

Technical Information - TRAUB TNA 300

Movement

  • Number of Axes: 3
  • X-axis Travel: 210 mm
  • Z-axis Travel: 450 mm

Technical Specification

  • Counter Spindle: No
  • Driven Tools: No

Additional Information

  • Spindle diameter: 65 mm

  • Machine version: without tailstock

  • Basic configuration: included

  • Hydraulic hollow clamping cylinder: included

  • High-pressure coolant system: 12 bar / 3 bar

  • Control system: TX8H, 32-bit technology; processor latest generation (at time of build); parameter data on diskette

  • Axes/functions:

    • C-axis: included (numerically controlled spindle positioning and turning axis)

    • Y-axis: not included

    • Driven tools: included; power 4 kW

  • Monitoring and safety:

    • Tool breakage monitoring: included

    • Tool wear monitoring: included

    • Automatic drive shutdown after material end: selectable via parameter

    • Error message via parameter: selectable

    • Guideway cover: included

  • Workholding:

    • Collet clamping system: ROHM

    • Collet system compatibility:

      • DIN 6343 size 185E, max diameter 60 mm

      • DIN 6343 size 48, max diameter 42 mm

      • Rubberflex series 52 compatible

      • Rubberflex series 36 compatible

      • Fahrion collet FM 1149 MB compatible

      • Fahrion collet FM 1148 MB compatible

  • Electrical:

    • Electrical system according to: VDE / EN 60204

    • Operating voltage: 400 V / 50 Hz

    • Accessory voltage: 230 V / 50 Hz

    • Control voltage: 24 V DC

    • Multi-voltage transformer: 460 / 400 / 380 / 220 / 200 V

  • EMC:

    • Compliance: industrial class A

    • Standards: EN 50081 / EN 50082 / EN 55011 / EN 55022

  • Machine standards: DIN EN 292; DIN EN 294; DIN EN 418; DIN EN 60204-1

  • Pneumatic system: Mannesmann Rexroth ISO

Additional equipment

  • Chip conveyor: included

  • Workpiece removal device: included; via conveyor, left side discharge

  • Bar feeder preparation: included

  • Bar feeder: TRAUB DNH 61-3000 (automatic)

    • Feeding: telescopic pusher system

    • Bar shapes: round / hexagonal / square

    • Maximum bar length: 3200 mm

    • Maximum bar diameter (long bars): 63 mm

    • Maximum bar diameter (short pieces): 65 mm

    • Automatic bar change: included

    • Residual piece removal: forward

    • Central adjustment of bar diameter: included

    • Stepless feed force adjustment: included

    • Central magazine adjustment: included

    • No guide channel change required

    • No clamping sleeve change required

    • Short remnant pieces possible

    • Transverse loading system

    • Transport weight: approx. 2100 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
