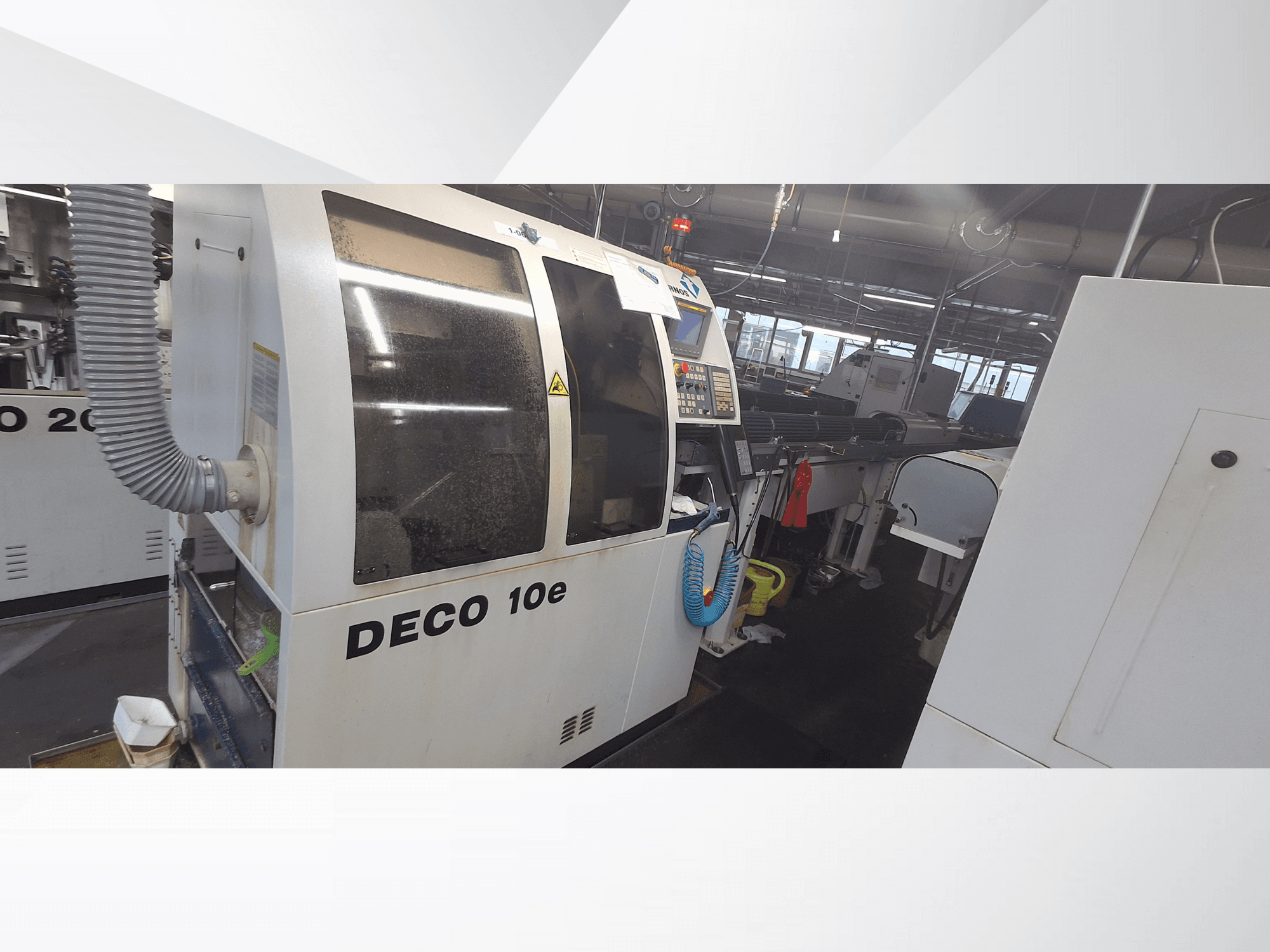

This Tornos DECO 10e was manufactured in 2010. A Swiss type turning machine featuring a movable headstock, directional spindle stop, and independent counter spindle. It includes a loading magazine with drum and an integrated 25-liter hydraulic unit. Ideal for precise small-scale turning, this machine also supports bar sizes from 1 to 10 mm without preparation up to 8 mm. Contact us for more information about this machine.
Overview
- brand: TORNOS
- year: 2010
- MODEL: DECO 10e
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
Technical Information - TORNOS DECO 10e
Movement
- Number of Axes: 7
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 10 mm
Additional Information
Additional information
Electrical control box
Cross slide with 4 tool holders T11-T24 with vertical and horizontal movement
3 pre-settable turning tool holders
4 fixed tool holders
Tapping attachment for collet chuck ESX 12
Movable headstock
Independent counter spindle
Pivoting workpiece holder on the counter spindle
Lubrication device for guide bushing with filter
Loading magazine with drum
Integrated 25-liter hydraulic unit with filter
Front/rear support foot, center height 1100 mm
"HYBRIDE 10+5" drum with 14 guide tubes for 1-4 mm bars and 14 guide tubes for 4.1-10 mm bars without bar preparation up to 8 mm
Motor voltage 400 V
Control voltage 24 V
Drive motor n = 12000 rpm
Optional: Comprehensive package of measuring instruments
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
