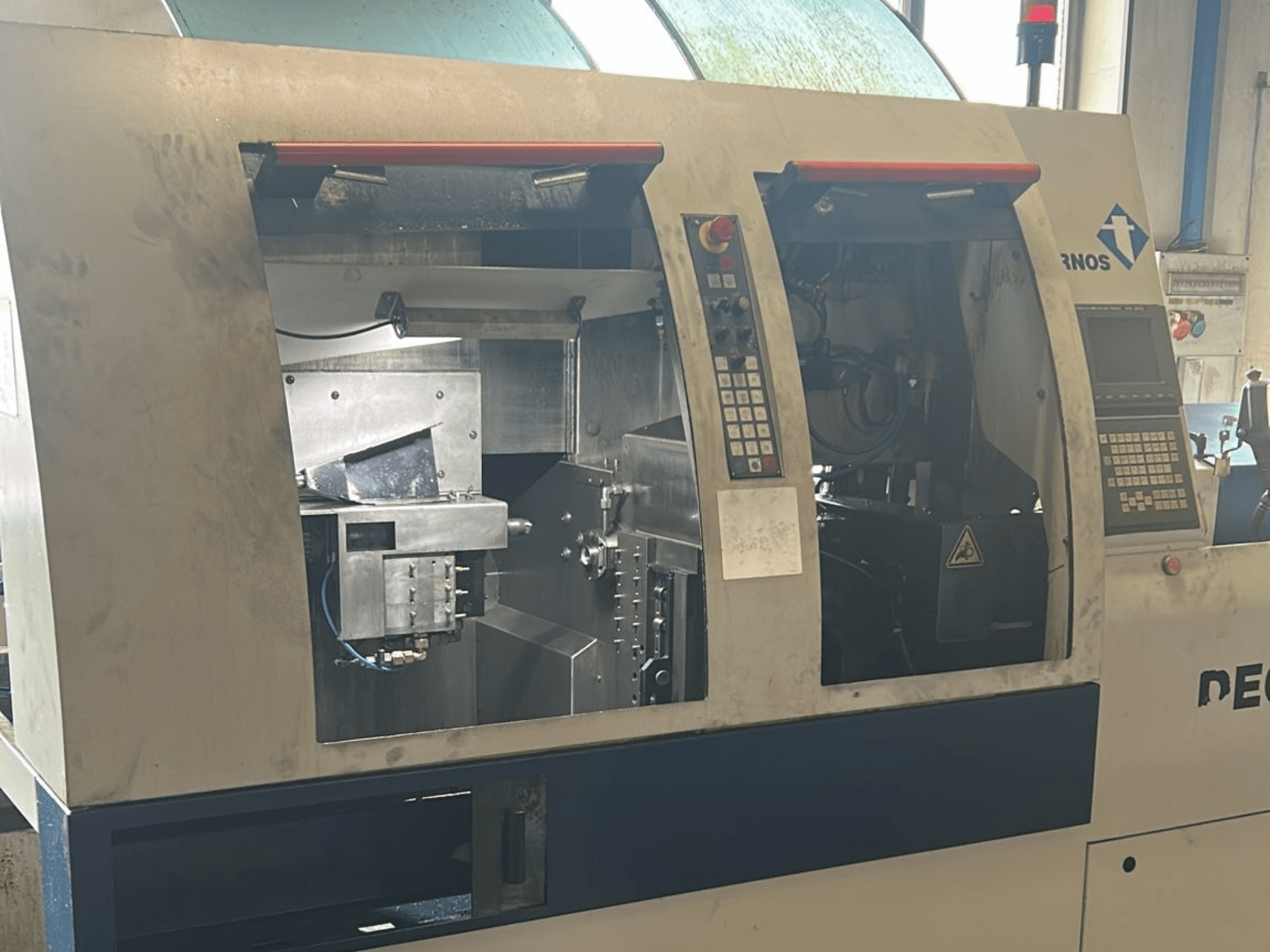

TORNOS - Deco 13 bIT-TUR-TOR-2004-00001

• Capacity:

  • Max bar diameter: 13 mm

• Axes:

  • Number of axes: 6 (X1, Y1, Z1, X2, Y2, Z2)

• Main spindle (S1):

  • Max bar capacity: 16 mm

  • Recommended min bar diameter: 3 mm

  • Max workpiece length: 160 mm

  • Collet type: Schaublin F20

• Subspindle (S2):

  • Max part diameter: 16 mm

  • Max part length (counter-operation): 160 mm

  • Spindle speed: 100–12,000 rpm

  • Clamping force: 730 daN

• Axes travels:

  • X1: 35 mm, Y1: 158 mm, Z1: 187 mm

  • X2: 118 mm, Y2: 160 mm, Z2: 174 mm

• Feed rates:

  • Max axis speed: 20 m/min

• Guide bushing:

  • Max bar passage: 16 mm

• Tooling system:

  • Linear tool system (front + rear)

  • Number of tool positions: 6 (3 axial + 3 transversal)

  • Tool spacing: 38 mm

  • Max rotating tools: up to 3

• Driven tools (S3):

  • Max speed: 8,000 rpm

  • Power: up to 1.1 kW

  • Drilling capacity: up to 8–10 mm

  • Tapping capacity: M6–M8

• Counter operations:

  • 3 working positions

  • Full machining capability (turning, drilling, tapping, threading)

• Cooling system:

  • Oil capacity: 200 L

  • Chip tank: approx. 100 L

Additional equipment

• Bar feeder (integrated):

  • Max bar length: 3.3 / 3.85 / 4.2 m

  • Min bar length: 1.2 m

  • Bar diameter range: 3–16 mm

• Parts unloader

• Oil bath system

• RS232 interface

• Work area lighting
