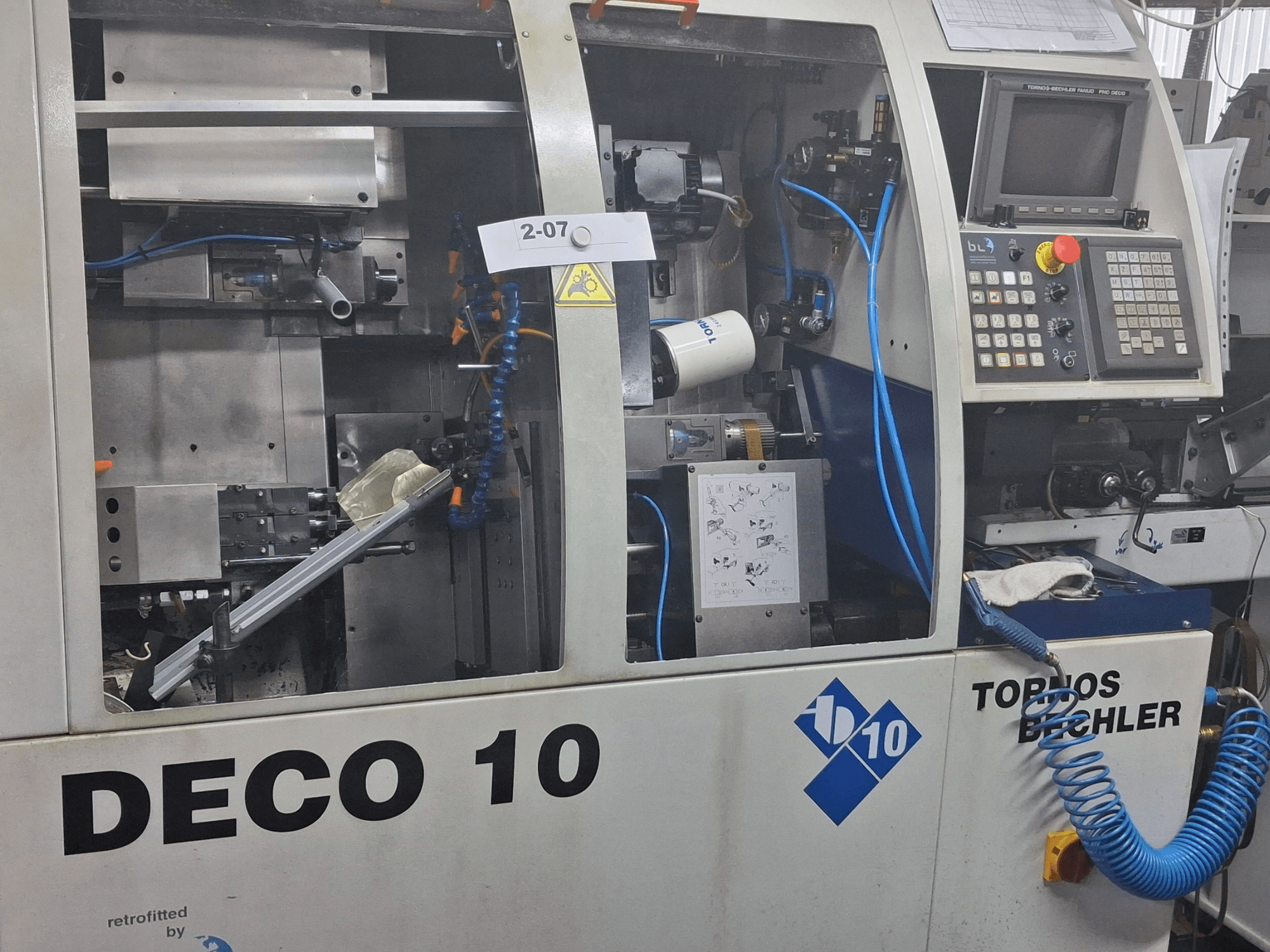

Swiss type turning machine manufactured in 2000. This TORNOS Deco 10a features a movable headstock, independent counter spindle, and a pivoting workpiece holder. It includes a loading magazine with a drum and a lubrication device for guide bushing. If you are looking to get high-quality turning capabilities, consider the TORNOS Deco 10a machine we have for sale. Contact us for further details.
Overview
- brand: TORNOS
- year: 2000
- MODEL: Deco 10a
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
Technical Information - TORNOS Deco 10a
Movement
- Number of Axes: 9
Technical Specification
- Counter Spindle: No
- Max. Bar Diameter: 7 mm
Additional Information
Movable headstock
Directional spindle stop S1
Cross slide with 4 tool holders T11–T24 with vertical and horizontal movement
Independent counter spindle
Pivoting workpiece holder on the counter spindle
Lubrication device for guide bushing with filter
Motorization S2
Integrated 25-liter hydraulic unit with filter
Electrical control box
Motor voltage 400 V
Control voltage 24 V
Drive motor n = 12,000 rpm
Additional equipment
Loading magazine with drum (bar feeder)
“HYBRIDE 10+5” drum with 14 guide tubes for 1–4 mm bars and 14 guide tubes for 4.1–10 mm bars (no bar preparation up to 8 mm)
3 pre-settable turning tool holders
4 fixed tool holders
Tapping attachment for collet chuck ESX 12
Front/rear support foot, center height 1100 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
