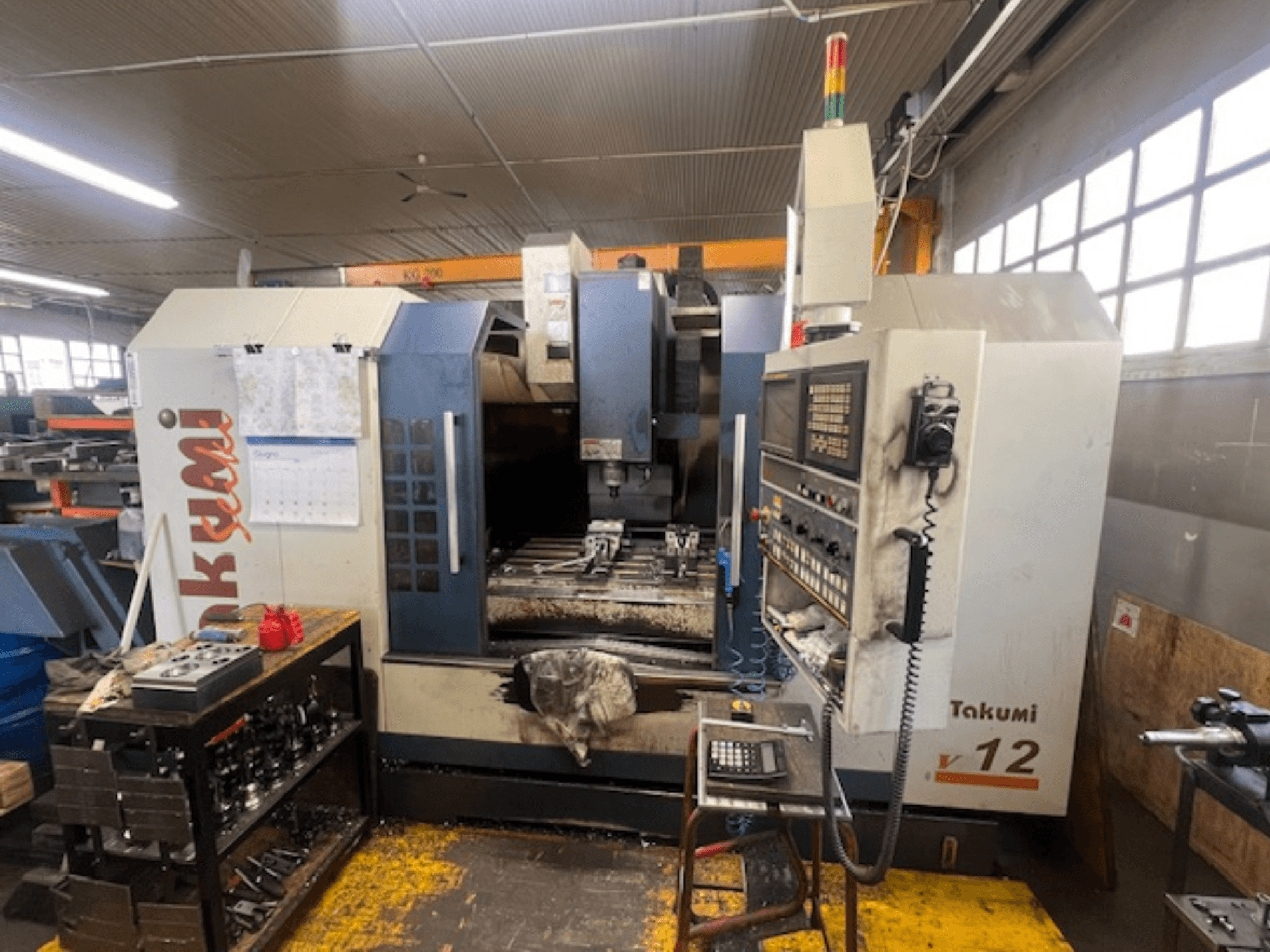

Takumi V12 CNC milling machine in side view, showing control panel, cutting area, and tools on the workstation.
Takumi V12 CNC milling machine in side view, showing control panel, cutting area, and tools on the workstation.

Takumi - V12IT-MIL-TAK-2007-00001

£ 21,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Takumi V12 vertical machining center was manufactured in 2007. It features a Fanuc 18i CNC control, with travel dimensions of X-axis 1200 mm, Y-axis 660 mm, and Z-axis 610 mm. The spindle offers 15 kW power and speeds up to 10,000 rpm. It includes a 32-tool magazine and a high-pressure coolant system at 20 bar. If you are looking to get high-quality milling capabilities consider the Takumi V12 machine we have for sale. Contact us for more information.

Overview

  • brand: Takumi
  • year: 2007
  • MODEL: V12
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Takumi V12

Main drive

  • Spindle speed range: 10000 rpm 1/MIN
  • Spindle motor power: 15 kW
  • Tool taper: BT 40

Movement

  • X-AXIS Movement: 1200 MM
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 660 MM
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 610 MM
  • Z-AXIS Rapid traverse: 25 m/min

Additional Information

Additional information

  • Spindle-to-table distance: 150 – 660 mm

  • Dimensions: 1350 × 690 mm

  • 4th–5th Axis Rotary Table: TJR
    Tool Magazine Capacity: 32 tools

  • Tool Change Time: 2.2 sec

  • Max Tool Weight: 7 (15) kg

  • Max Tool Length: 250 mm

  • Max Tool Diameter: 65 (130) mm

  • Dimensions of Machine (LxWxH): 3100 × 2050 × 2640 mm

  • Weight (kg): 7500 kg

  • Coolant System: High-pressure coolant at 20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
