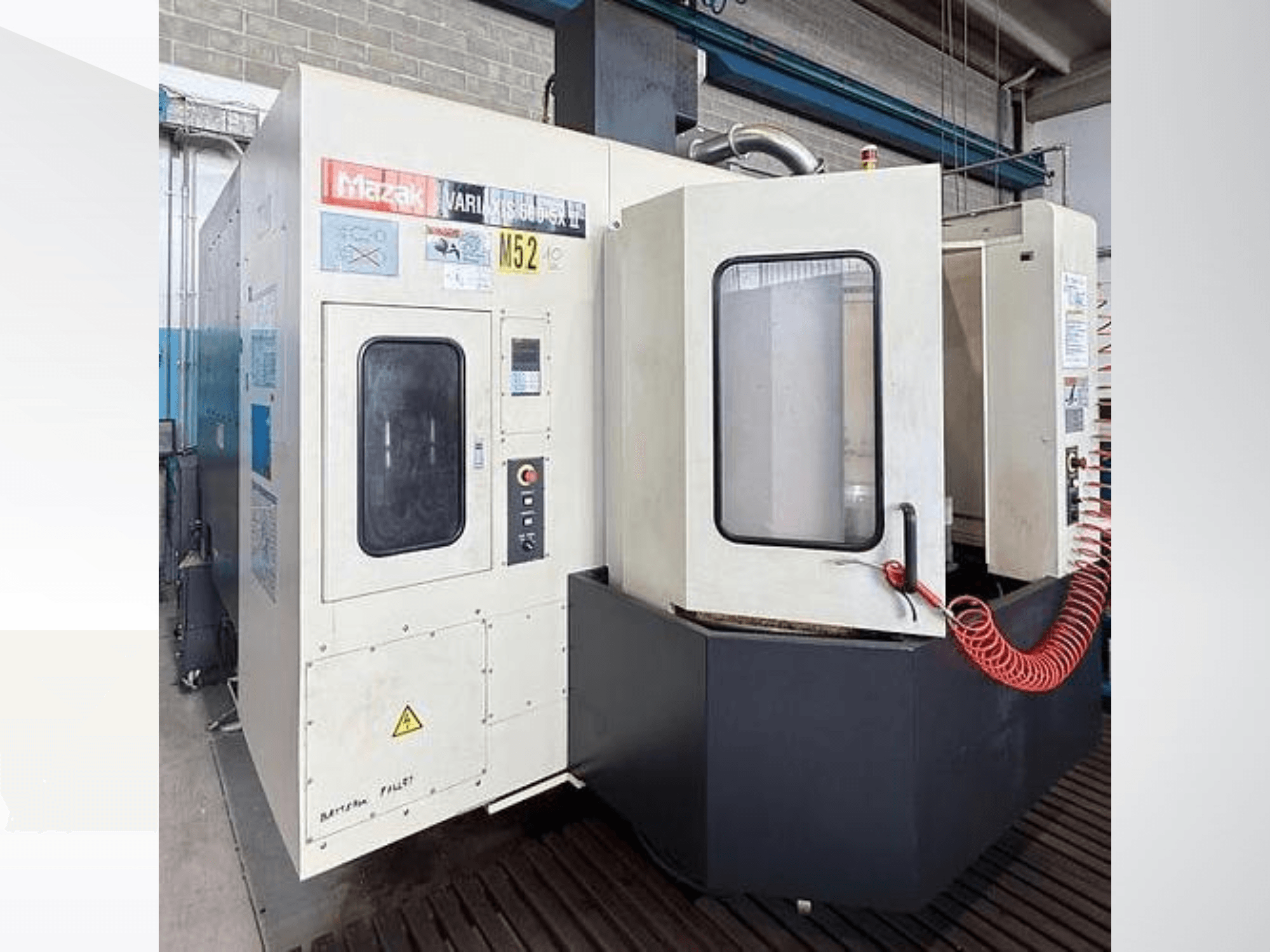

Mazak - VARIAXIS500-5XIIIT-MIL-MAZ-2006-00003

Outer length: 500 mm

Outer width: 400 mm

Table load: 300 kg

Max distance between vertical spindle and table: 140 - 600 mm

Number of tool slots: 60 positions

Chip conveyor: Belt type (with chip pan preparation)

Cooling pressure: 15 kg

Controlled Axes: 5 continuous

Table Dimensions: 500 x 400 mm (x 2 pallets)

Distance Spindle Nose to Horizontal Table: 190 - 650 mm

Spindle Torque: 252 Nm (186 ft.lbs)

Operating Hours (Power On): 57,979 hrs 58 min 25 sec

Operating Hours (Auto Cut): 31,273 hrs 09 min 14 sec

Operating Hours (Cutting Time): 27,810 hrs 53 min 42 sec

Total Time: 57,979 hrs 58 min 24 sec

Installed Software Options: Auto Pecking Cycle with Load Detection, Synchronized Tapping, EIA Dynamic Compensation 2, Additional M-Code Function (2 M-Codes), G00 Slope Constant, Mazacc-3D High-Speed Software Package, Shape Compensation for Rotary Axes, Tilted Working Plane, Simultaneous 5 Axis Control

Visual Observations: Internal chamber shows normal surface wear and minor coolant staining on enclosure walls, no visible major mechanical damage
