Brother - TC 32B IT-MIL-BRO-2007-00001

Name: Brother TC 32B
Brand: Brother
SKU: IT-MIL-BRO-2007-00001
Price: 39328 GBP
Availability: InStock

£ 39,328

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Brother TC 32B Vertical Machining Center

Show in original language

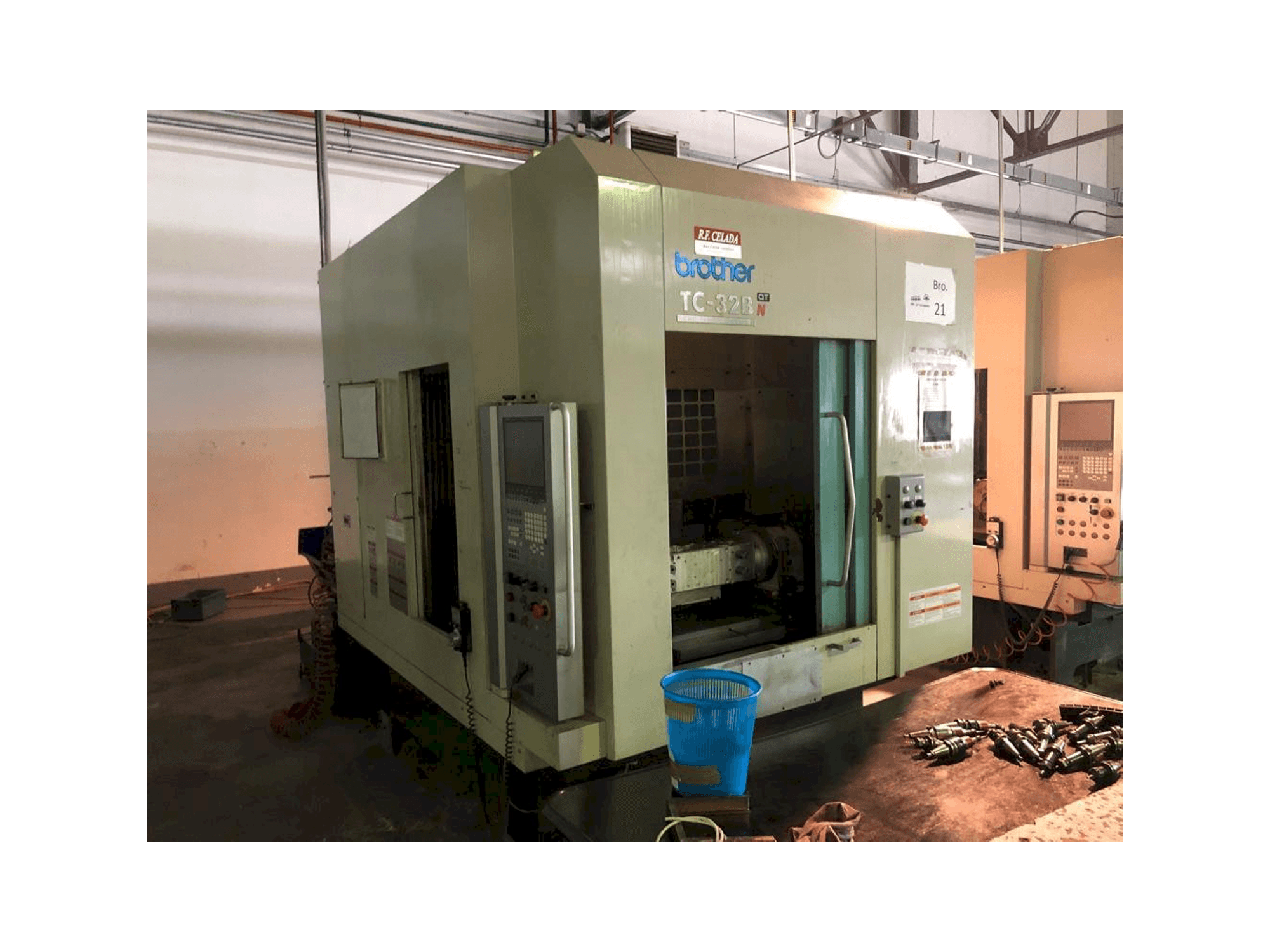

This Brother TC 32B Vertical Machining Center was built in Japan in 2007. Equipped with a Brother control unit, this machine incorporates 3 + 1 axis and a rotary table. Its BT30 spindle can operate with a speed up to 12000 rpm.

Overview

brand: Brother
year: 2007
MODEL: TC 32B
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC 32B

Control Unit

Control Brand: BROTHER

Dimensions

Machine Depth: 3700 mm
Machine Height: 2360 mm
Machine Weight: 4600 kg
Table Load: 200 kg

Movement

X-axis Travel: 550 mm
Y-axis Travel: 400 mm
Z-axis Travel: 415 mm

Technical Specification

Spindle Speed: 12000 RPM

Additional Information

Additional equipment

chip conveyor
remote flyer
Kitagawa rotary plate

Machine Benefits

Technical Machine Benefits

3 + 1 axis
Toolholders: random 26 positions
Fast forwards: 70-70-70 m/min
Pallets: 2 / 600 x 425

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
