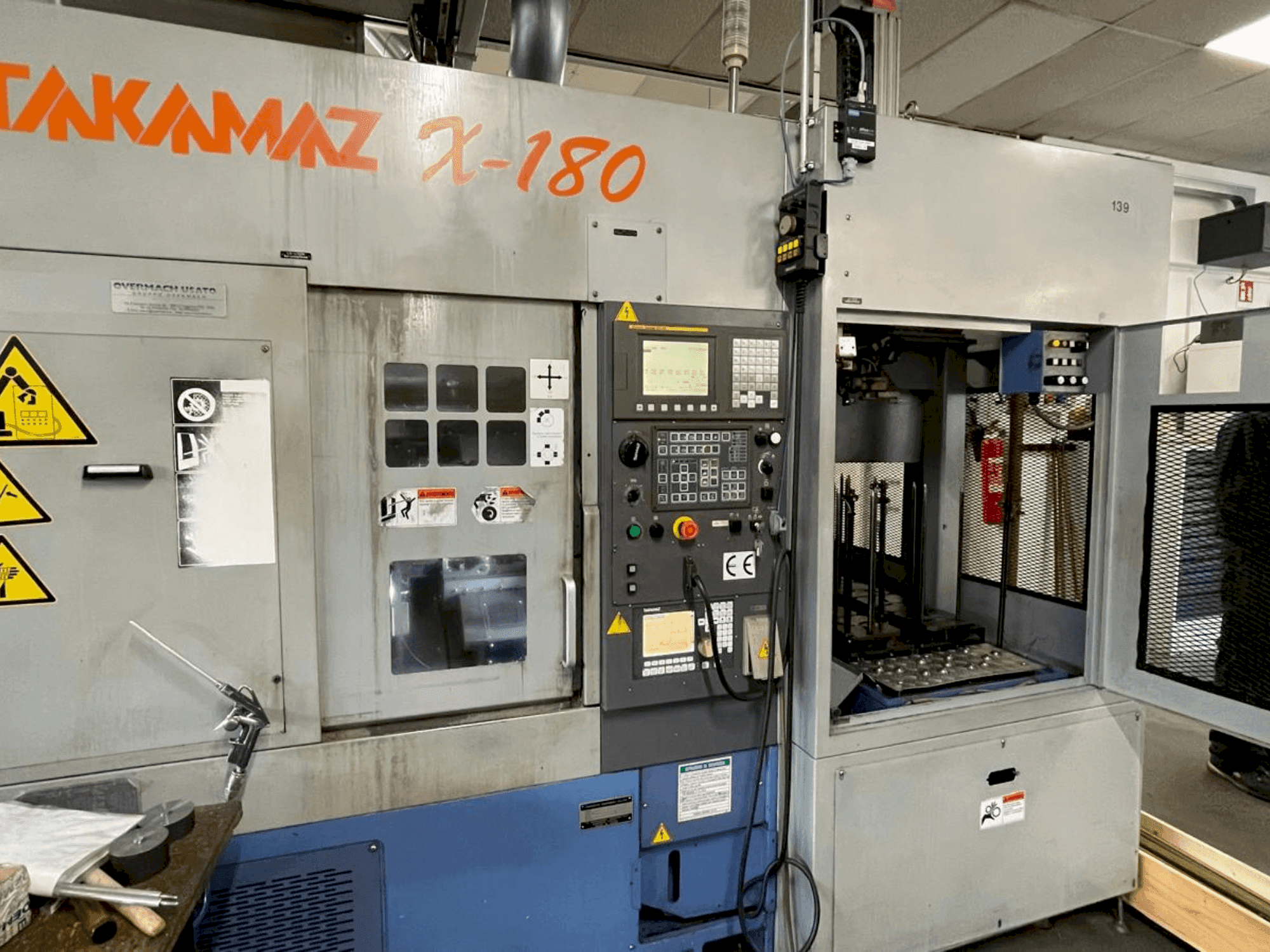

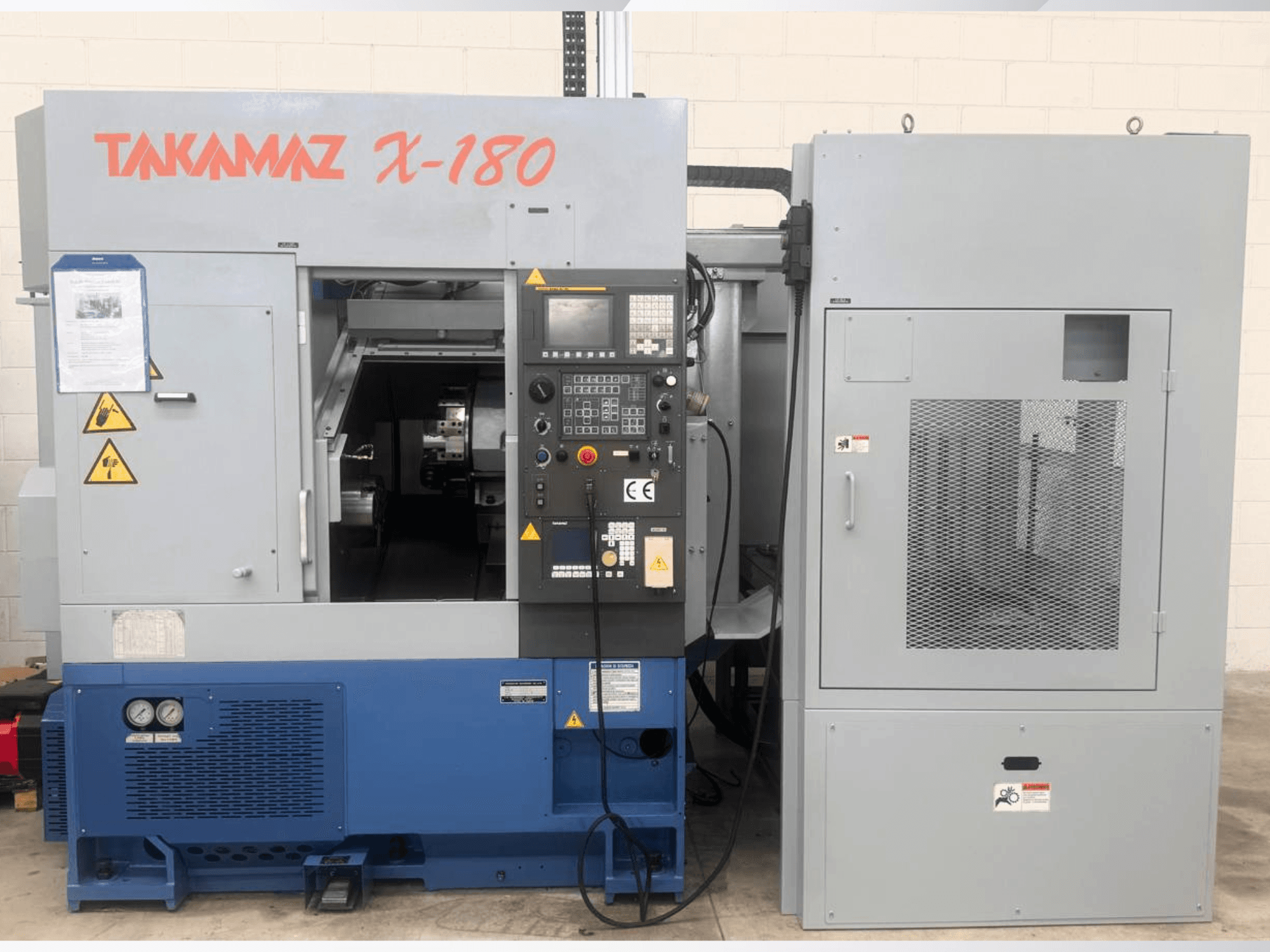

This 3-axis Takamaz X-180 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of Ø 210 mm, a turning length up to 230 mm, and a bar diameter capacity of Ø 51 mm. The spindle supports speeds up to 3,500 RPM, enhancing productivity. Ideal for precision machining, it includes a 12-station revolver turret and rapid traverse speeds of 24 m/min on both X and Z axes. Contact us for more information about this machine.
Overview
- brand: Takamaz
- year: 2008
- MODEL: X-180
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Takamaz X-180
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TC
Dimensions
- Machine Depth: 1835 mm
- Machine Height: 1525 mm
- Machine Weight: 3500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 175 mm
- Z-axis Travel: 330 mm
Technical Specification
- Spindle Speed: 3500 RPM
Additional Information
Additional equipment
- Chuck dimensions: 8 inches
Machine Benefits
Technical Machine Benefits
- Maximum turning diameter: Ø 210 mm // maximum turning length: 230 mm (collet 278 mm)
- Maximum bar diameter: Ø 51 mm (Ø 42 mm)
- Spindle nose: jis a2-6
- Spindle bearing internal diameter: Ø 100 mm
- Type: revolver with 12 stations
- Tool dimensions: 25 mm²
- Internal diameter of boring toolholder: Ø 32 mm
- Tools maximum speed: max. 3600 min⁻¹
- Drilling capacity: Ø 12 mm // milling cutter capacity: Ø 16 mm
- Tapping capacity: m8
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
