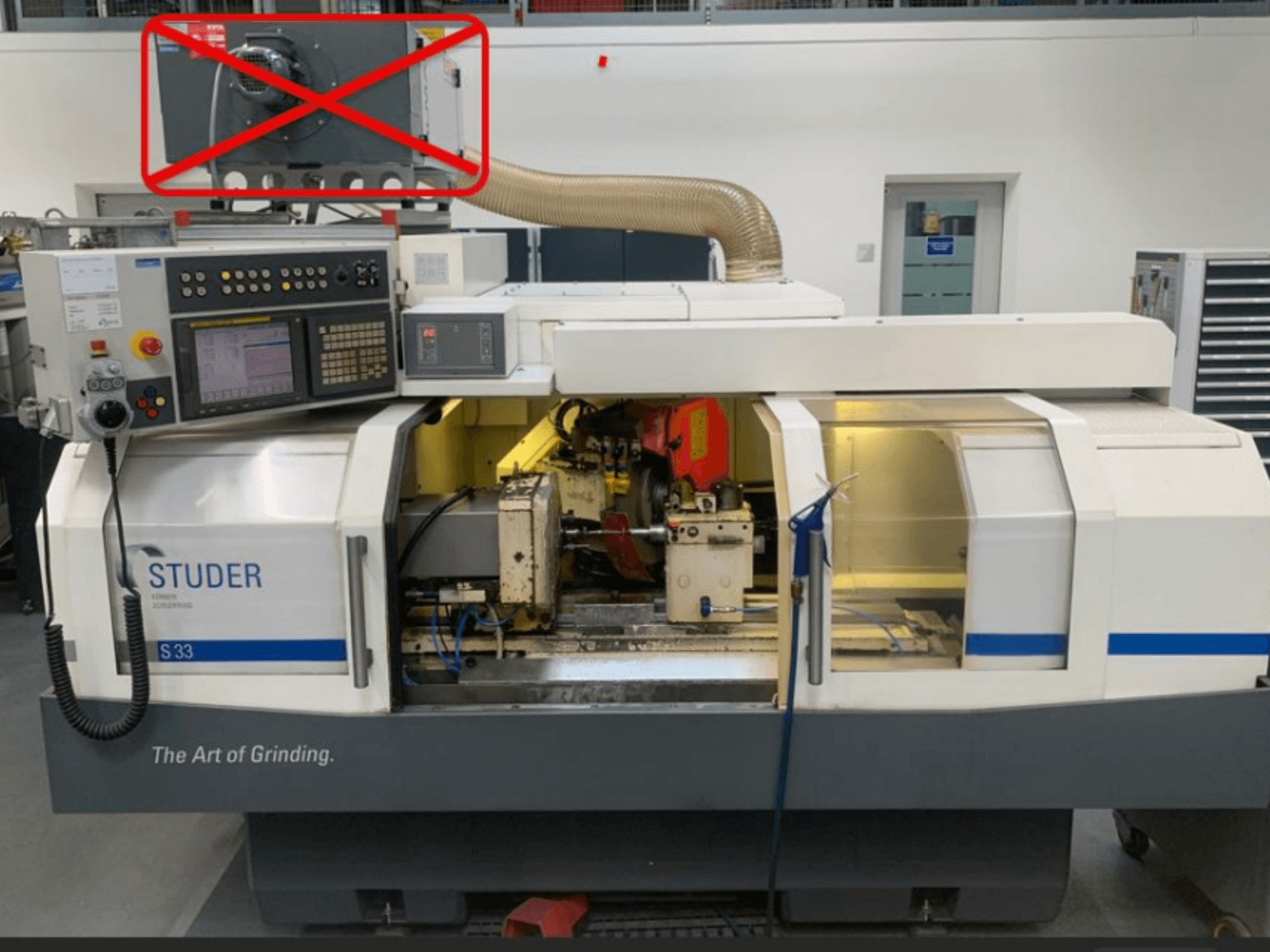

Studer S33 cylindrical grinding machine, front view showing control panel and grinding components with visible electrical connections.
Studer S33 cylindrical grinding machine, front view showing control panel and grinding components with visible electrical connections.

STUDER - S33DE-GRI-STU-2005-00001

£ 60,837
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2005. It features a dynamic balancing unit, Marposs push button insert, and includes 2 CBN grinding discs. The machine also comes with approximately 20 internal grinding mandrels and 3 collets. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine.

Overview

  • brand: STUDER
  • year: 2005
  • MODEL: S33
  • production hours: 22640
  • application type: Grinding
  • Location: Germany
  • machine type: Cylindrical Grinding Machine
  • control unit brand: FANUC

Technical Information - STUDER S33

Control Unit

  • Control Brand: FANUC
  • Control Model: 21i-TB

Additional Information

  • Application: Prototype construction (no shift work)

  • Operating hours: approx. 24,000

  • Control: FANUC 21i-TB

  • Extraction system not included

  • Annual maintenance

  • Center height: 175 mm

  • Center distance: 650 mm

  • Machine stand: Granitan S 103

  • Grinding wheel: 500 x 63 x 203 mm

  • Linear measuring system

  • Spindle bore: 30 mm

  • Workpiece spindle speed: 1–1500 rpm

  • Workpiece table swivel: 8.5°

  • Infinitely variable taper angle (scale with 1° increments)

  • Grinding wheel dressing: radius, angle

  • Electrical interface for rotary dressing

  • Electronic handwheel

  • Maximum peripheral speed: 50 m/s

  • Constant cutting speed V

  • Pneumatic spindle lift

  • Pneumatic tailstock lift

  • Workpiece drive: 1.6 kW AC servo motor

  • Coolant pump: 100 L/min at 2.5 bar

  • Coolant supply via workpiece spindle

  • Changeover time internal/external grinding: 10 sec

  • Transition radius/chamfer/cylinder

  • Internal grinding spindle: 1–20,000 rpm

  • Foot pedal for movement with door open

Additional equipment

  • Tailstock removal device (included)

  • PCD dressing plate R 0.5

  • Dynamic balancing device with balancing sensors

  • Grinding detection

  • Marposs probe insert

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
