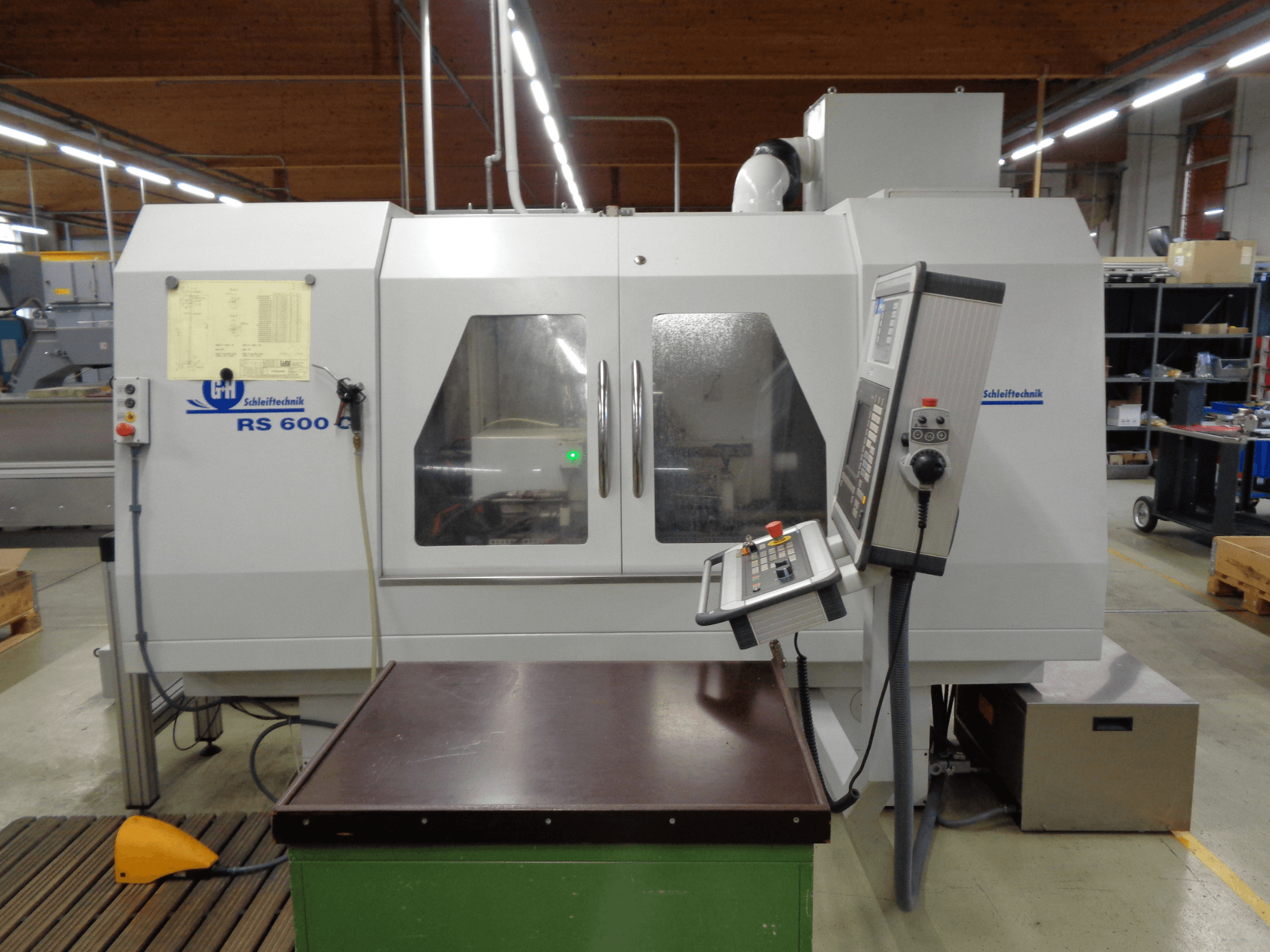

GEIBEL & HOTZ - RS 600 C DE-GRI-GEI-2015-00001

• Center distance: 600 mm

• Center height: 140 mm

• Max swing diameter: 275 mm

• Max workpiece weight between centers: 100 kg

• Max workpiece torque (flying): 40 Nm (including clamping devices)

Workpiece spindle

• Taper: MK4 and KK5

Tailstock

• System: Cylindrical screw pressure spring

• Operation: Manual via hand lever

• Quill stroke: approx. 40 mm

• Taper: MK4

Grinding spindle

• Arrangement: Left

• Motor power: 5.5 kW

• Speed: 700–2100 rpm

• Bearing: Precision rolling bearings

• Lubrication: Lifetime lubrication

Grinding wheel

• Standard size: 400 × 50 × 127 mm

• Bore: 127 mm

• Width: 20–50 mm

• Taper: 5°

• Max diameter: 55 mm (taper reference)

• Flange diameter: 175 mm

• Speed range: 15–35 m/s (constant cutting speed control)

Axes

X-axis (= FEEDBACK MOVEMENT)

• Drive: Electromechanical with ball screw

• Feed rate: 0.01–8000 mm/min

• Setup: Electric handwheel or direction push button

• Measuring system: Glass scale, internal resolution 0.0005 mm

Z-axis (= TABLE MOVEMENT)

• Drive: Electromechanical with ball screw

• Table speed: 0.01–12000 mm/min

• Setup: Electric handwheel or direction push button

• Measuring system: Rotary encoder, resolution 0.001 mm

Control / Electrical

• The control panel is mounted to the machine stand using a swivel bracket.

• Control system: Siemens 840D

• Drive system: Siemens SINAMICS

• Emergency stop components, safety integrated

• Motor protection switch, fuses: Siemens

• Connectors: WAGO Harting connectors in the work area

• Operating voltage: 400 V, 50 Hz, 3 phase

• Network type: TN network, without residual current device (RCD)

• Control voltage: 230/24 V

• Installed electrical power: approx. 14 kW / 18 kVA

• Compressed air: Oil-free compressed air, approx. 5 bar

• Control cabinet: Air conditioning unit

• Electrical cabinet equipment: Interior lighting

• Service socket: 230 V / 3 A

Pneumatics / Coolant

• Compressed air requirement: approx. 5 bar, oil-free

• Coolant tank capacity: approx. 300 L

• Coolant pump capacity: 50 L/min at 3.5 bar

• Cleaning pump capacity: 20 L/min at 1.5 bar

Operating data

• Operating hours: 2,420 hours

Additional equipment

• Air extraction unit

  • Capacity: approx. 1000 m³/h

  • Dimensions: approx. 460 × 840 × 580 mm

• Three-jaw chuck

  • Diameter: 160 mm

  • Operation: Manual

  • Weight: approx. 10 kg
