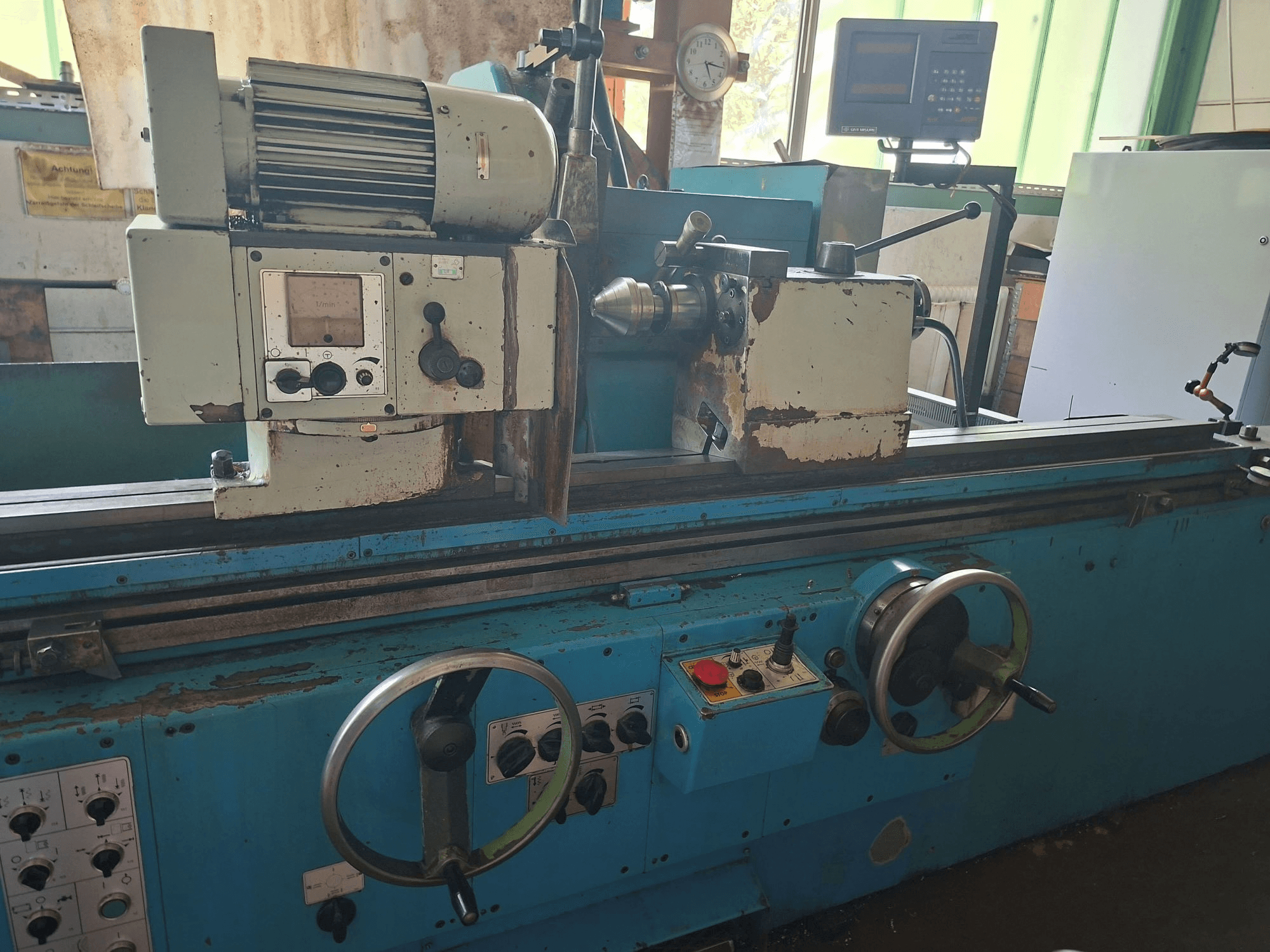

Cetos - BHU 50 A x 2000DE-GRI-CET-1999-00001

- Swing Diameter: 500 mm

- Center Distance: 2000 mm

- Grinding Wheel Dimensions (Diameter x Width x Bore): 500 x 80 x 203 mm

- Grinding Wheel Diameter After Partial Wear: 380 mm

- Minimum Ground Swing Diameter with Worn Wheel (380 mm): 70 mm

- Maximum Grinding Wheel Width: 200 mm

- Maximum Width of Multi-Piece Wheel Set: 200 mm

- Maximum Sum of Individual Wheel Widths in Multi-Piece Set: 200 mm

- Swing Diameter in Open Steady Rest: 110 mm

- Taper in Workhead Spindle: MORSE 5

- Taper in Tailstock Sleeve: MORSE 5

- Clamping Chuck Diameter: 200 mm

- Swing Diameter in Closed Steady Rest: 110 mm

- Bore in Sleeve for Internal Grinding Spindle: 100 mm

- Workhead Swivel Angle: +95° / -5°

- Wheelhead Swivel Angle: ±45°

- Upper Table Swivel Angle at 2000 mm Center Distance: +5° / -3°

- Machine Weight with Standard Accessories (at 2000 mm Center Distance): 6700 kg

- Workhead Spindle Speeds (Infinitely Variable): 18–112 min⁻¹ / 90–560 min⁻¹ (1st Row / 2nd Row)

- Smallest Table Longitudinal Travel: 1 mm

- Largest Table Longitudinal Travel (at 2000 mm Center Distance): 2290 mm

- Cross Movement of Wheelhead: 415 mm

- Hydraulic Rapid Traverse of Wheelhead: 60 mm

- Table Speed (Infinitely Variable): 0.05 - 4 m/min

- Cross Movement of Wheelhead per Automatic Infeed: 0.2 mm/ø

- Cross Movement of Wheelhead per Automatic Infeed for Fine Grinding: 0.15 mm/ø

- Automatic Infeed of Wheelhead at Table Reversals for Plunge Grinding: 0.0005–0.01 mm/ø

- Automatic Infeed of Wheelhead at Table Reversals for Traverse Grinding: 0.005–0.05 mm/ø

- Speed of Automatic Wheelhead Infeed During Plunge Grinding: 1 mm.min⁻¹

- Infeed Speed for Spark-Out Infeed: 0.015 mm.min⁻¹

- Total Power Requirement of Electric Motors: 16 kVA

- Wheelhead Motor Power: 9.5 kW

- Maximum Workpiece Weight Admitted Between Centers: 300 kg

- Maximum Overhanging Workpiece Weight (Including Clamping Device): 60 kg

- Table Infeed Advance: 6 m.min⁻¹
