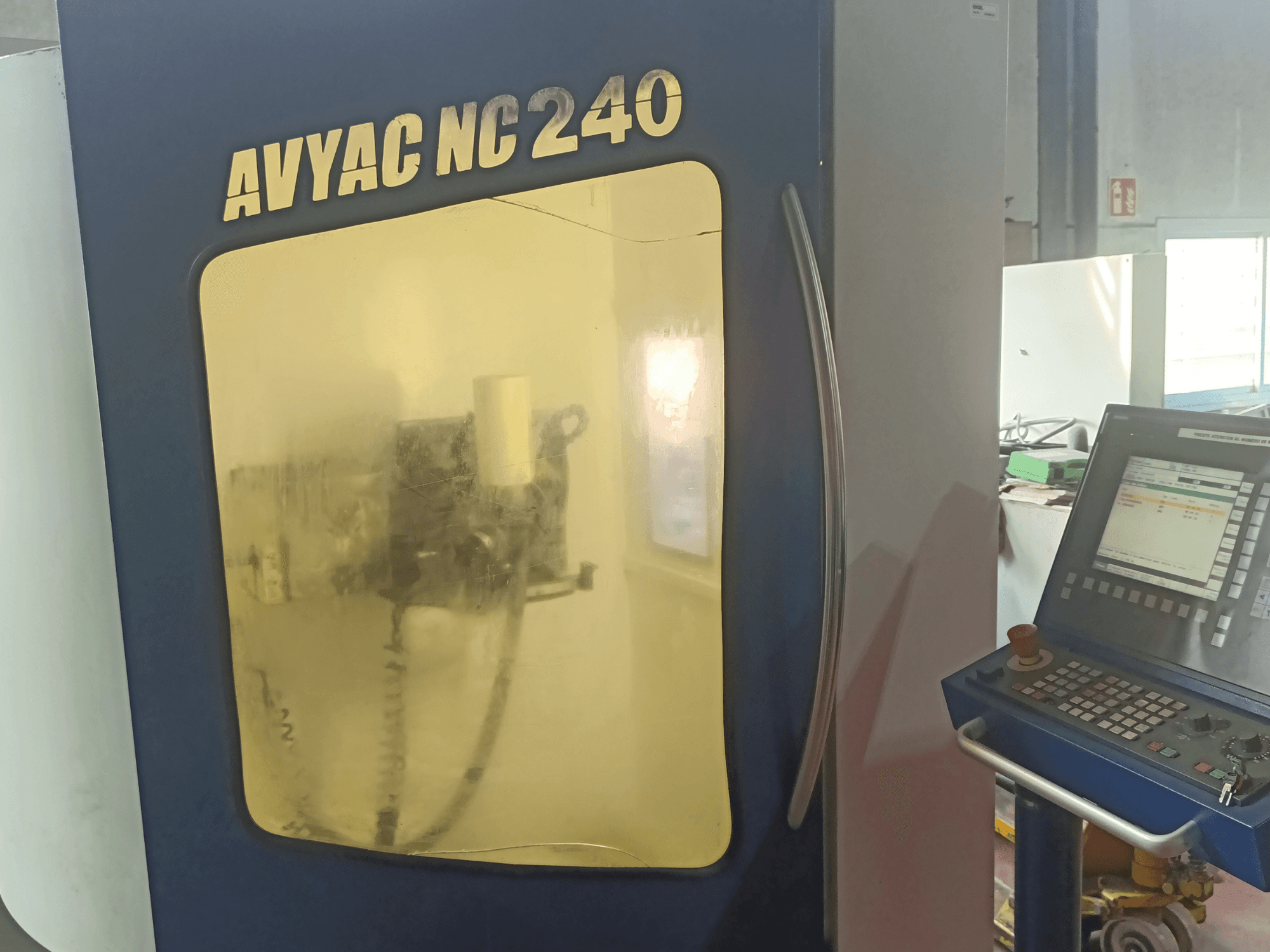

Cylindrical grinding machine manufactured in 2004. This AVYAC NC240 features a maximum tool diameter of 40 mm and a sharpening length of 950 mm. It is compatible with HSS and carbide materials, equipped with an automatic touch probe for precise tool positioning. The machine also includes programmable indexing for variable teeth/flutes and an integrated oil mist extractor for effective mist control. If you are looking to get high-quality grinding capabilities, consider the AVYAC NC240 machine we have for sale. Contact us for further details.
Overview
- brand: AVYAC
- year: 2004
- MODEL: NC240
- application type: Grinding
- Location: Spain
- machine type: Cylindrical Grinding Machine
- control unit brand: SIEMENS
Technical Information - AVYAC NC240
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL
Dimensions
- Machine Height: 2000 mm
- Machine Length: 1800 mm
- Machine Weight: 1800 kg
- Machine Width: 1800 mm
Movement
- Number of Axes: 2
- X-axis Travel: 350 mm
- Y-axis Travel: 300 mm
- Z-axis Travel: 200 mm
Technical Specification
- Spindle Power: 4 kW
- Spindle Speed: 8000 RPM
Additional Information
A (workhead rotation): 360° continuous
B (pivot): -45° to +45°
C (grinding wheel incline): 360°
Workpiece capacity:
Diameter range: 2–40 mm
Max length: 300 mm
Grinding wheel diameter: 150 mm
Number of CNC axes: 4 (A, B, C, X) + 1 manual (Y)
Resolution: 0.001 mm / 0.001°
Positioning accuracy: ±0.005 mm
Utilities:
Power supply: 400 V / 50 Hz
Compressed air: 6 bar (87 psi)
Coolant tank capacity: 150 L
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
