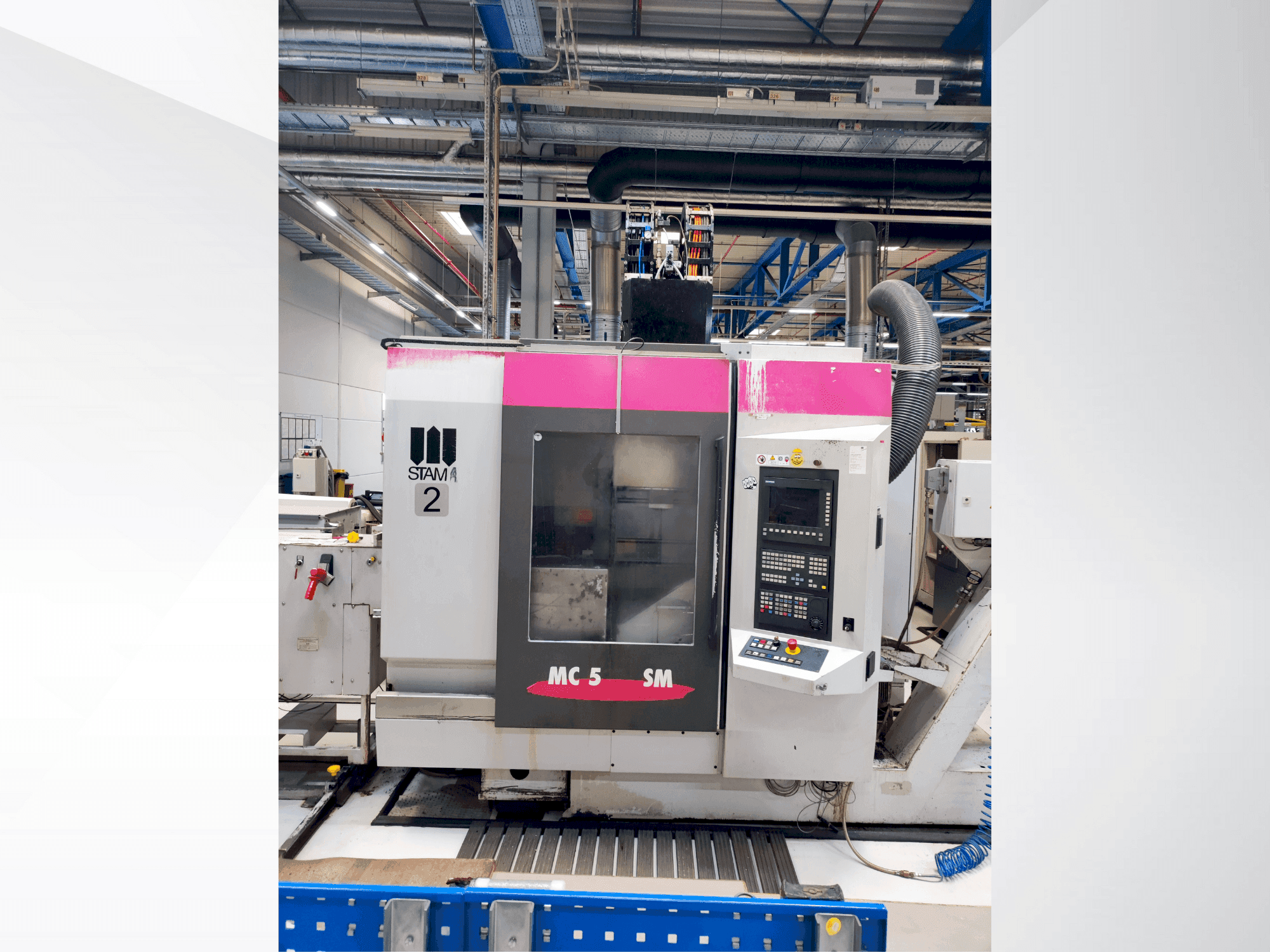

Front view of STAMA MC 531/SINGLE  machine

STAMA - MC 531/SINGLEDE-MIL-STA-2000-00002

£ 11,650
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis STAMA MC 531/SINGLE vertical machining center was manufactured in 2000. It features a robust single-spindle design, with traverse paths of 800/400/350mm and a quill stroke of 350mm. Equipped with a SK40 tool holder, it can handle a maximum tool diameter of 125mm and a tool length of 250mm. The machine includes a coolant cleaning system, chip conveyor, and a rotary swivelling device. Reach out for further details regarding this vertical machining center.

Overview

  • brand: STAMA
  • year: 2000
  • MODEL: MC 531/SINGLE
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS 840 D

Technical Information - STAMA MC 531/SINGLE

General Data

  • Measurements width: 4200 MM
  • Measurements depth: 6200 MM
  • Measurements height: 3300 MM
  • Machine weight: 7200 KG

Control Unit

  • Brand: SIEMENS 840 D

Main drive

  • Tool taper: SK40

Movement

  • X-AXIS Movement: 800 mm
  • X-AXIS Feed Force: 7000 N
  • X-AXIS Rapid traverse: 45 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Feed Force: 7000 N
  • Y-AXIS Rapid traverse: 45 m/min
  • Z-AXIS Movement: 350 mm
  • Z-AXIS Feed Force: 12000 N
  • Z-AXIS Rapid traverse: 45 m/min

Tools

  • Slots in storage: 60
  • Max tool diameter: 125 mmm
  • Max tool length: 250 mm

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Coolant cleaning system
    • - Rotary swivelling device
    • - Bar magazine
    • - Hydraulic unit
    • - The machine has a SIEMENS 840 D control and a working memory of 32 MB.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Spindle torque: 70 nm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
