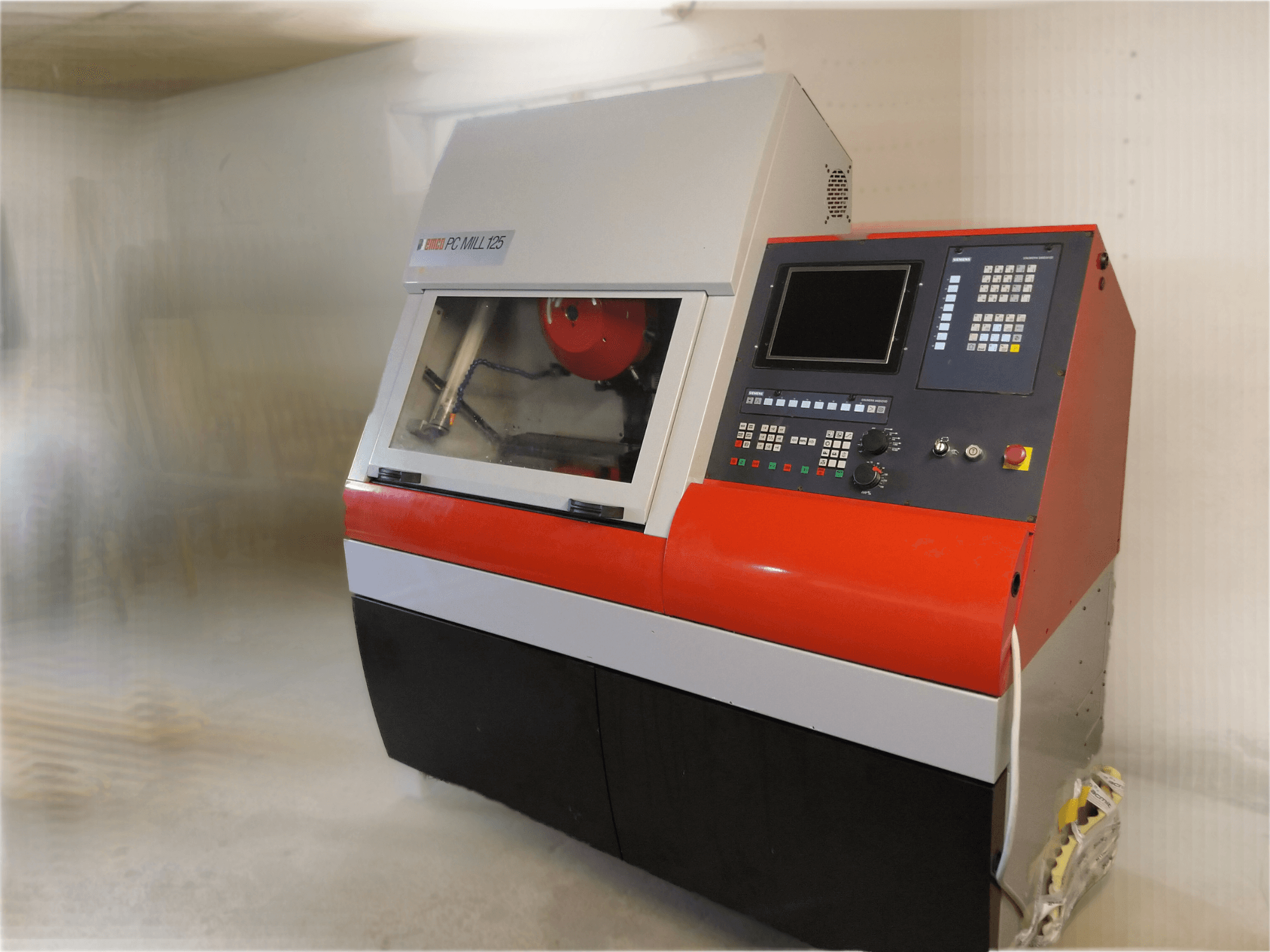

This 3-axis EMCO PC MILL 125 was manufactured in 2000. It features an X-axis travel of 185 mm, Y-axis travel of 125 mm, and Z-axis travel of 200 mm. The machine includes an automatic tool changer with 10 stations and a clamping area of 420 x 125 mm. If you are looking to get high-quality machining capabilities, consider the EMCO PC MILL 125 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 2000
- MODEL: PC MILL 125
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - EMCO PC MILL 125
Dimensions
- Machine Height: 850 mm
- Machine Length: 800 mm
- Machine Weight: 250 kg
- Machine Width: 780 mm
Movement
- Number of Axes: 3
- X-axis Travel: 185 mm
- Y-axis Travel: 125 mm
- Z-axis Travel: 200 mm
Technical Specification
- Spindle Power: 0.75 kW
- Spindle Speed: 2000 RPM
- Taper Size: SK 30
Additional Information
Tool changer: Automatic, 10 stations
Tool holder: SK 30 (DIN 2080 / DIN 69871)
Feed rate (X/Y/Z): 5–500 mm/min
Rapid traverse: 500 mm/min
Clamping area: 420 x 125 mm
Max. workpiece weight: 10 kg
Power supply: 230 V / 50 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
