IBARMIA - ZV 40 L2200DE-MIL-IBA-2000-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used IBARMIA ZV 40 L2200 For Sale | gindumac.com

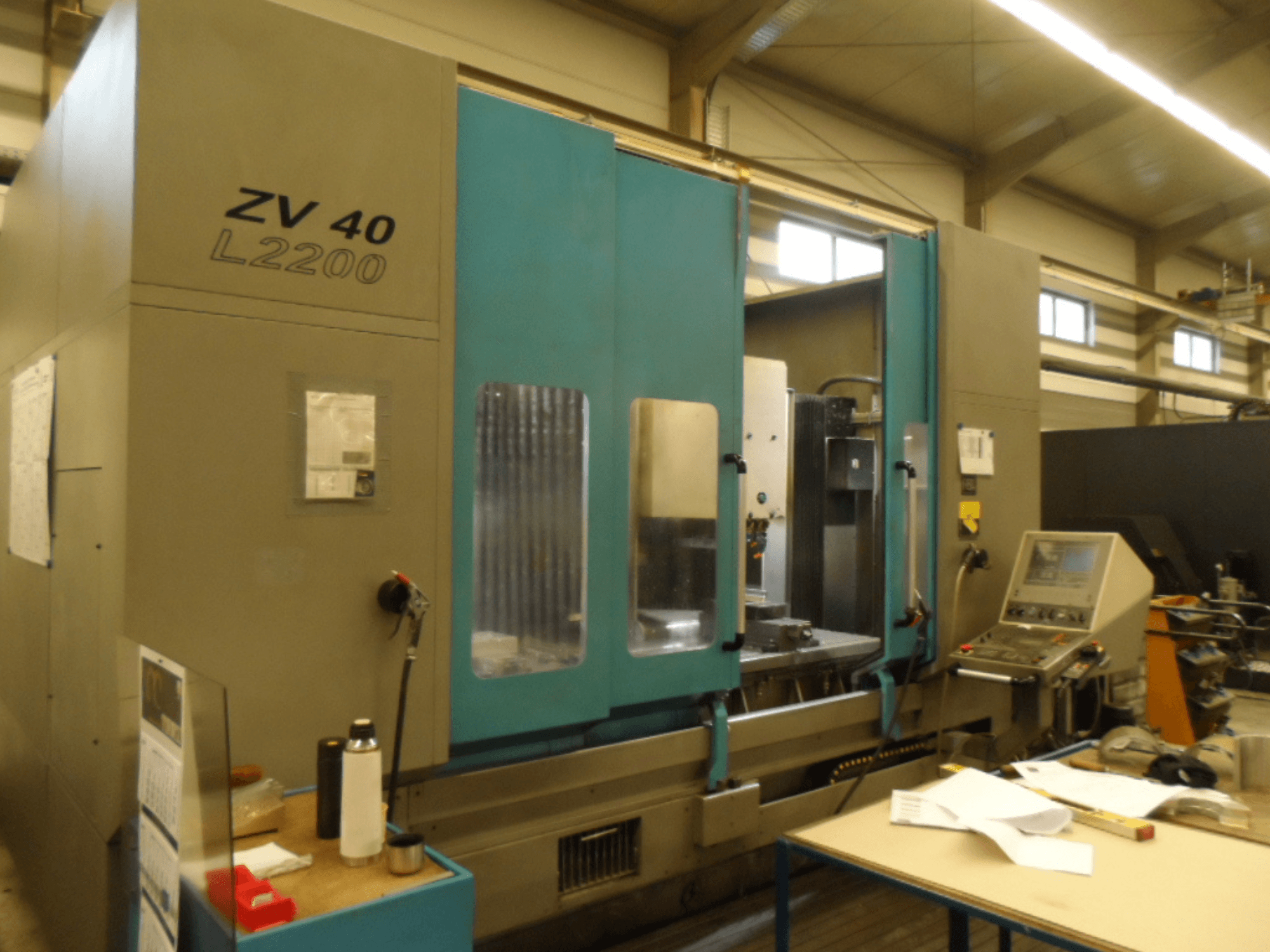

This 3-axis IBARMIA ZV 40 L2200 vertical machining centre was manufactured in 2000. It features an X-axis travel of 2200 mm, Y-axis travel of 600 mm, and Z-axis travel of 600 mm. The machine has a maximum table load capacity of 2300 kg and a rapid traverse rate of 30 m/min. If you are looking to get high-quality machining capabilities, consider the IBARMIA ZV 40 L2200 machine we have for sale. Contact us for further details.
Overview
- brand: IBARMIA
- year: 2000
- MODEL: ZV 40 L2200
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - IBARMIA ZV 40 L2200
Dimensions
- Machine Weight: 12000 kg
- Table Length: 2600 mm
- Table Load: 2300 kg
- Table Width: 650 mm
Movement
- Number of Axes: 3
- X-axis Travel: 2200 mm
- Y-axis Travel: 600 mm
Technical Specification
- Max. Tool Weight: 10 kg
- Spindle Power: 28 kW
- Spindle Speed: 6000 RPM
Additional Information
- X-axis travel in 2-station machining (shuttle operation): 720 mm
- Z-axis travel (vertical): 600 mm (Optional: 800 mm)
- Number of T-slots: 5
- T-slots size: 18 mm
- Distance between T-slots: 125 mm
- Min./Max. distance spindle nose to table: 200 / 800 mm (Optional: 1000 mm)
- Tool taper / holder: SK40 - DIN 69871 (Options: HSK A-63 DIN 69893 or HSK A-80 DIN 69893)
- Pull stud for SK tool holder: DIN 69672
- Clamping force of tool retention (SK): 12000 N (Options: HSK A-63: 18000 N / HSK A-80: 28000 N)
- Inner bearing diameter: 80 mm
- Max. standard spindle speed: 6000 rpm (Options: 4000 / 8000 / 10000 rpm)
- Main spindle motor power at 100%: 28 kW (Intermittent: 38.5 kW)
- Constant power for standard configuration from: 1500 rpm
- Max. torque at 100%: 178 Nm (Intermittent: 245 Nm)
- Feed force in X, Y, Z at 100%: 13000 N (Intermittent: 15600 N)
- Rapid traverse rate in X, Y, Z: 30 m/min
- Max. working feed rate in X, Y, Z: 10 m/min
- Positioning tolerance Tp X(1000mm)-Y-Z: 0.015 mm
- Max. positioning scatter Ps max.: 0.010 mm
- Measuring system in X-Y-Z: Linear glass scales
- Milling capacity in steel (St 60): 650 cm³/min
- Drilling capacity in steel (St 60): Ø 60 mm
- Tapping capacity in steel (St 60): M-36
- Number of tool pockets: 24 (Options: 40 - 52)
- Max. tool length: 300 mm
- Max. tool weight: 10 kg
- Max. tool diameter (full magazine): 85 mm
- Max. tool diameter (adjacent pockets free): 125 mm
- Tool management: Random
- Tool change time: 3.5 s
- Chip-to-chip tool change time: 7 s
- Floor space requirement: approx. 17 m²
- Coolant tank capacity: 370 liters
- Machine length (Dimension A): 4200 mm
- Textured paint structure (2 colors): RAL grey 7037 / blue 5012
- Electrical connection: 55 kW
- Operating voltage: 400 V / 50 Hz
- Compressed air connection: 6 bar
- Coolant pump power: 0.75 kW
- Standard equipment: CE machine enclosure protection, chip conveyor, coolant tank, linear glass scales in X/Y/Z axes, vertical interior cladding along X-axis, workspace lighting, automatic centralized lubrication, hydraulic counterweight balance for spindle head, automatic pneumatic spindle cleaning, mobile control panel, rigid tapping (tapping without compensation chuck).
- Factory options available: Internal coolant supply (IKZ), full machine enclosure, partition wall for shuttle operation, dividing heads/rotary tables for 1 or 2 additional machine axes, work tool touch probe, digitization systems, tool monitoring systems, portable electronic handwheel
- depending on the requirements, parts in the Y-axis would need to be replaced or repaired
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
