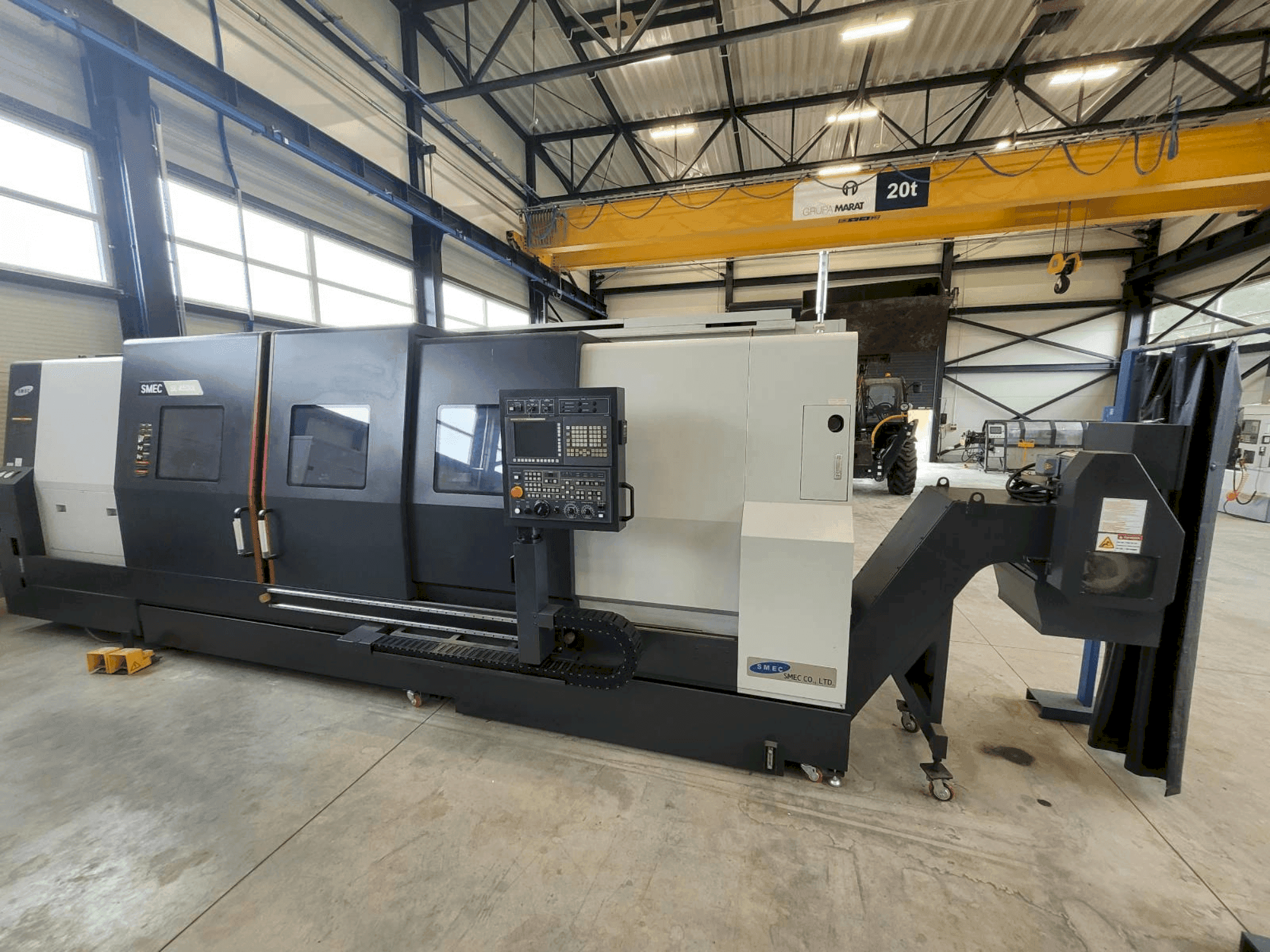

Front view of SMEC SL 4500 L  machine

SMEC - SL 4500 LPL-TUR-SME-2020-00001

£ 142,500
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This SMEC SL 4500 L was manufactured in 2020. It features an 18" chuck, a maximum turning diameter of 690 mm, and a machining length of 3,055 mm. The spindle supports speeds up to 1,800 rpm with a motor power of 30/37 kW. It includes a 12 station turret and a tailstock with a MT5 taper. Consider the opportunity to buy this SMEC SL 4500 L horizontal turning machine. Contact us for more information about this machine.

Overview

  • brand: SMEC
  • year: 2020
  • MODEL: SL 4500 L
  • application type: Turning
  • Location: Poland
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - SMEC SL 4500 L

General Data

  • Machine weight: 20000 kg

Control Unit

  • Brand: FANUC
  • Model: Series Oi-TF

Main drive

  • Spindle speed range: 1800 rpm 1/MIN
  • Spindle motor power: 30 / 37 kW
  • Spindle bore: 132 mm
  • Tool taper: MT5 (built-in)
  • Number of axis: 2

Movement

  • X-AXIS Movement: 350 mm
  • X-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 3130 mm
  • Z-AXIS Rapid traverse: 10 m/min

Workpiece

  • Workpiece drm over bed: 775 mm
  • Workpiece drm over support: 630 mm

Turret

  • Number of turrets: 1

Tail Stock

  • Pinol diameter: 160 mm

Tools

  • Number of stations: 1

    Additional Equipment

    • - Electric Power Supply Required: 59 / 220 kVA

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Chuck size: 18 inches
        • - Max turning diameter: 690 mm
        • - Max machining length: 3055 mm
        • - Turning tool shank size: 32 mm
        • - Boring bar diameter: 60 mm
        • - Turret index time (next station swivel): 0. 20 sec
        • - Quill stroke: 150 mm
        • - Spindle nose: asa a2-11
        • - Draw tube id: 117. 5 mm
        • - Coolant tank capacity: 600 l
      • Qualitative Machine Benefits:
        • - Very good technical condition

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
