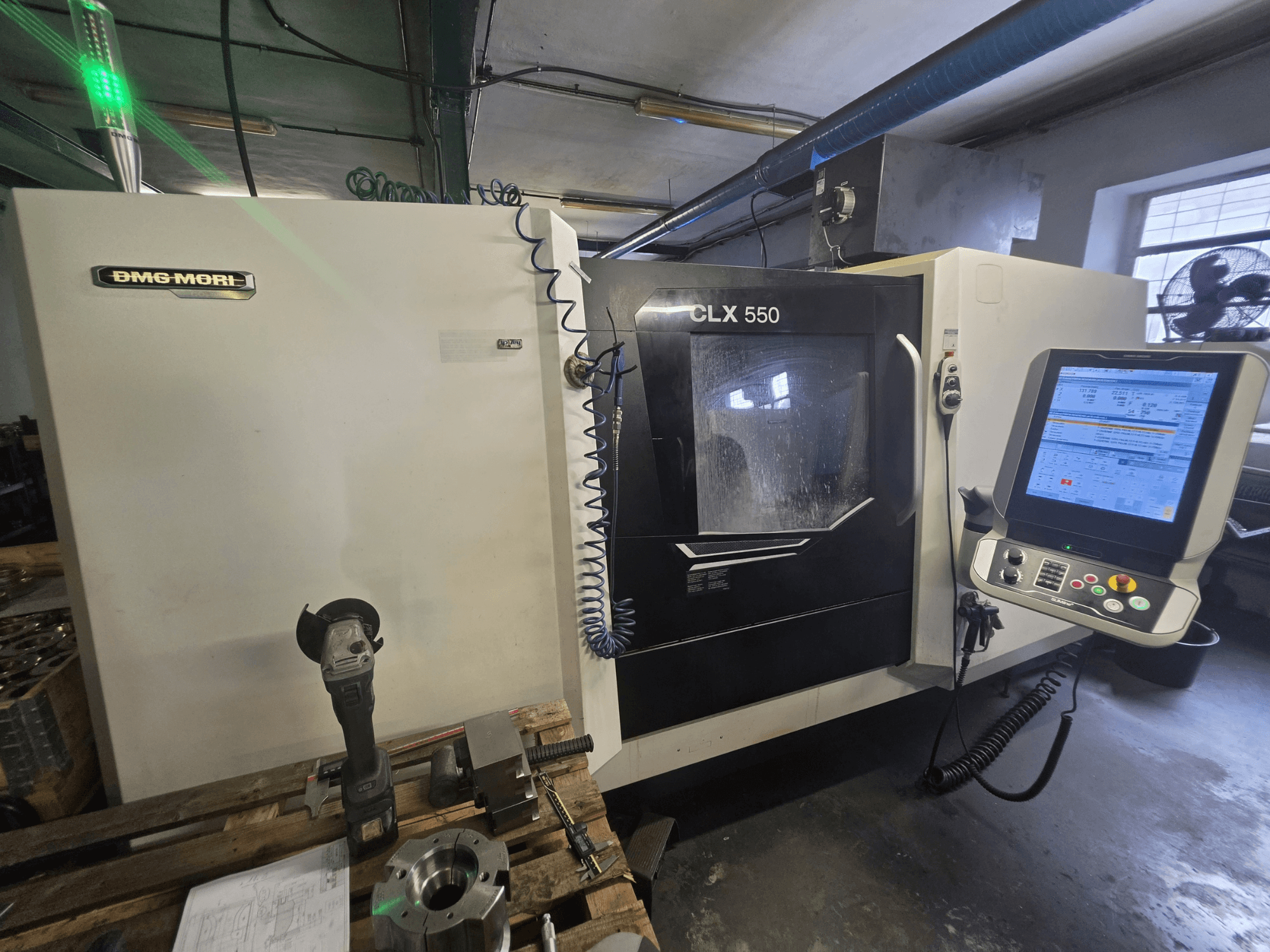

DMG MORI - CLX 550 V3PL-TUR-DMG-2023-00001

• Control panel: DMG MORI SLIMline Multi-Touch, 19" touchscreen

• Axes: 3 (X, Z, C); no Y-axis; no counter spindle

• Spindle operating hours: approx. 3613 h

Working capacity and axes

• Max turning diameter: 480 mm

• Max turning length: 1,240 mm

• Swing over bed: 700 mm

• Swing over cross slide: 500 mm

• Rapid traverse X/Z: 30 m/min

• C-axis: main spindle C

Main spindle and chuck

• Spindle nose: A2-8

• Bar capacity: 102 mm (upgraded main spindle)

• Spindle power: 33 kW @ 40% DC / 22 kW continuous

• Spindle torque: 630 Nm @ 40% DC / 420 Nm continuous

• Chuck: SMW BH-D 320 / A2-8, D103 mm (as specified)

• Function: differential clamping pressure

Turret and driven tools

• Turret: 12-position VDI40 with 6 additional BT stations

• Driven tools: up to 4,000 rpm

• Driven-tool power/torque: 5.44 kW @ 40% DC; 20 Nm @ 40% DC

Tailstock

• Travel: 1,200 mm

• Centre taper: MT5

• Max thrust: 12 kN

Equipment and options (machine)

• Setup package

• Tropical climate package

• 12-bar coolant supply

• Manual working-area washdown gun

• Variable spindle speed software option

• DMG MORI IoTconnector

• Digital Manufacturing Package

Construction

• Inclined cast-iron bed

• Linear guideways, 45 mm width

Additional equipment

• Mechanical oil mist extraction unit, 1,100 m³/h

• Tooling:

  • Set of 12 tool holders

  • Set of 6 boring tool holders

  • ALGra driven-tool holder set
