➤ Used SCM Record 110AL - 2005 - For Sale | gindumac.com

Show in original language

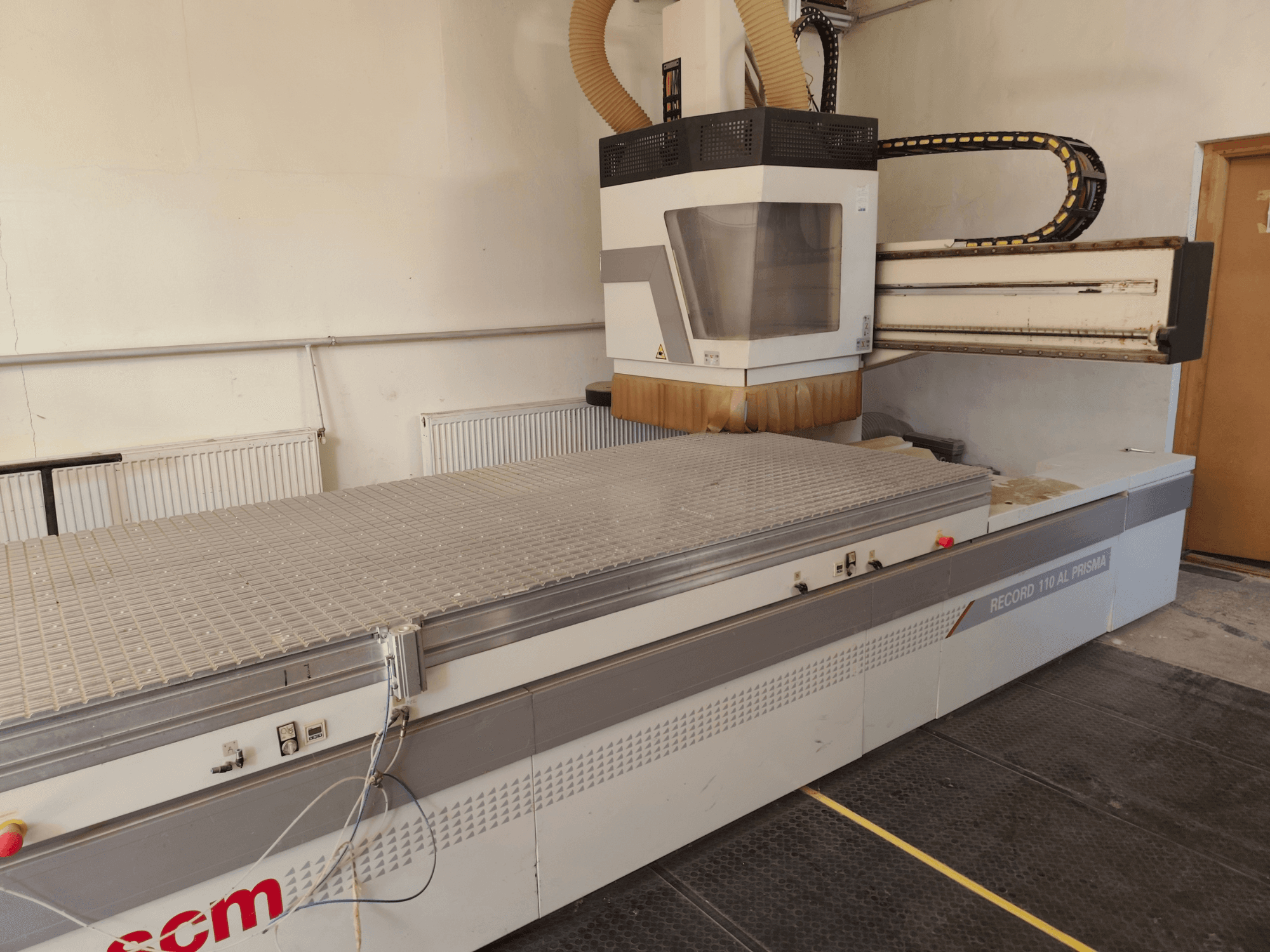

CNC Wood Machining Centre manufactured in 2005. This SCM Record 110AL features a working area of 3,060 mm in the X-axis and 1,240 mm in the Y-axis, with a maximum panel passage of 200 mm. It includes 18 total drilling spindles and a powerful 8.5 kW main electrospindle. If you are looking to get high-quality drilling and milling capabilities, consider the SCM Record 110AL machine we have for sale. Contact us for further details.

Overview

brand: SCM
year: 2005
MODEL: Record 110AL
application type: CNC Wood Machining
Location: Hungary
machine type: CNC Wood Machining Centre

Technical Information - SCM Record 110AL

Movement

Number of Axes: 5
X-axis Travel: 3060 mm
Y-axis Travel: 1240 mm
Z-axis Travel: 200 mm

Technical Specification

Spindle Power: 8.5 kW

Additional Information

Processing type: Drilling and milling
Max. panel passage: 200 mm
Number of working fields: 2
Table type: Flat table
Table configuration: Nesting
Table dimensions: 3,060 × 1,240 mm
Number of controlled axes: 5
Drilling units: 1
Vertical drilling spindles: 12
Horizontal drilling spindles, X-direction: 4
Horizontal drilling spindles, Y-direction: 2
Total drilling spindles: 18
Milling spindles: 1
Milling spindle controlled axes: 5
Spindle cooling: Liquid cooling
Grooving units: 1
Grooving unit: Fixed, X-direction
Main electrospindle power: 8.5 kW
Milling spindle power: 8.5 kW
Control: PC Control
Programming software: Xylog Plus
16-position tool magazine
Automatic tool changer
CE marking

Additional equipment

Vacuum pump: 1 (suction capacity 250 m³/h)
Suction cups for workpiece clamping
Front safety mats

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
