Reishauer - RZ 400DE-GRI-REI-2005-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Reishauer RZ 400 For Sale | gindumac.com

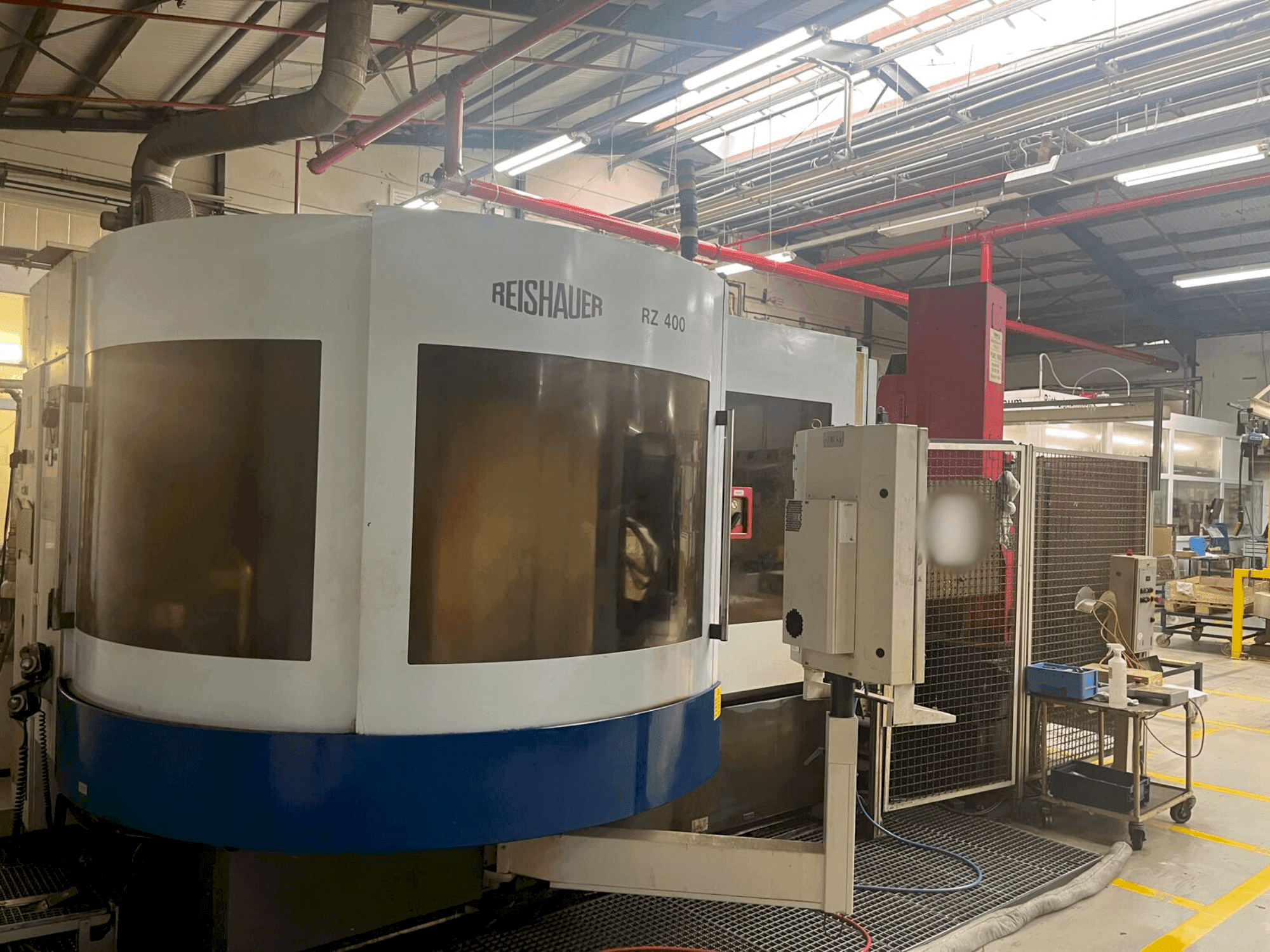

This Reishauer RZ 400 grinding machine was manufactured in 2005. It features a Siemens 840D control system, can handle wheel diameters up to 400 mm, and wheel widths up to 300 mm. With a maximum workpiece weight of 300 kg and spindle speeds up to 4,700 1/min, it's ideal for varied grinding tasks. Dimensions are 4.9 m x 3.7 m x 3.2 m, weighing 11.5 tons. For more information about this grinding machine, please reach out to us.
Overview
- brand: Reishauer
- year: 2005
- MODEL: RZ 400
- production hours: 25639
- application type: Grinding
- Location: Germany
- machine type: Grinding Machine
- availability: Immediately
- control unit brand: Siemens
Technical Information - Reishauer RZ 400
General Data
- Measurements width: 3700 MM
- Measurements depth: 4900 MM
- Measurements height: 3200 MM
- Machine weight: 11500 KG
Control Unit
- Brand: Siemens
- Model: 840D
Main drive
- Spindle speed range: 0 - 4700 1/MIN
- Spindle motor power: 10 KW
Additional Information
- Technical Machine Benefits:
- - Wheel diameter: 400 mm
- - Max wheel width: 300 mm
- - Module: 0. 2 - 8
- - Number of teeth: 5 - 999
- - Workpiece weight: 300 kg
- - Max helix angle: +- 45 degrees
- - Clamping length: 60 - 700 mm
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
