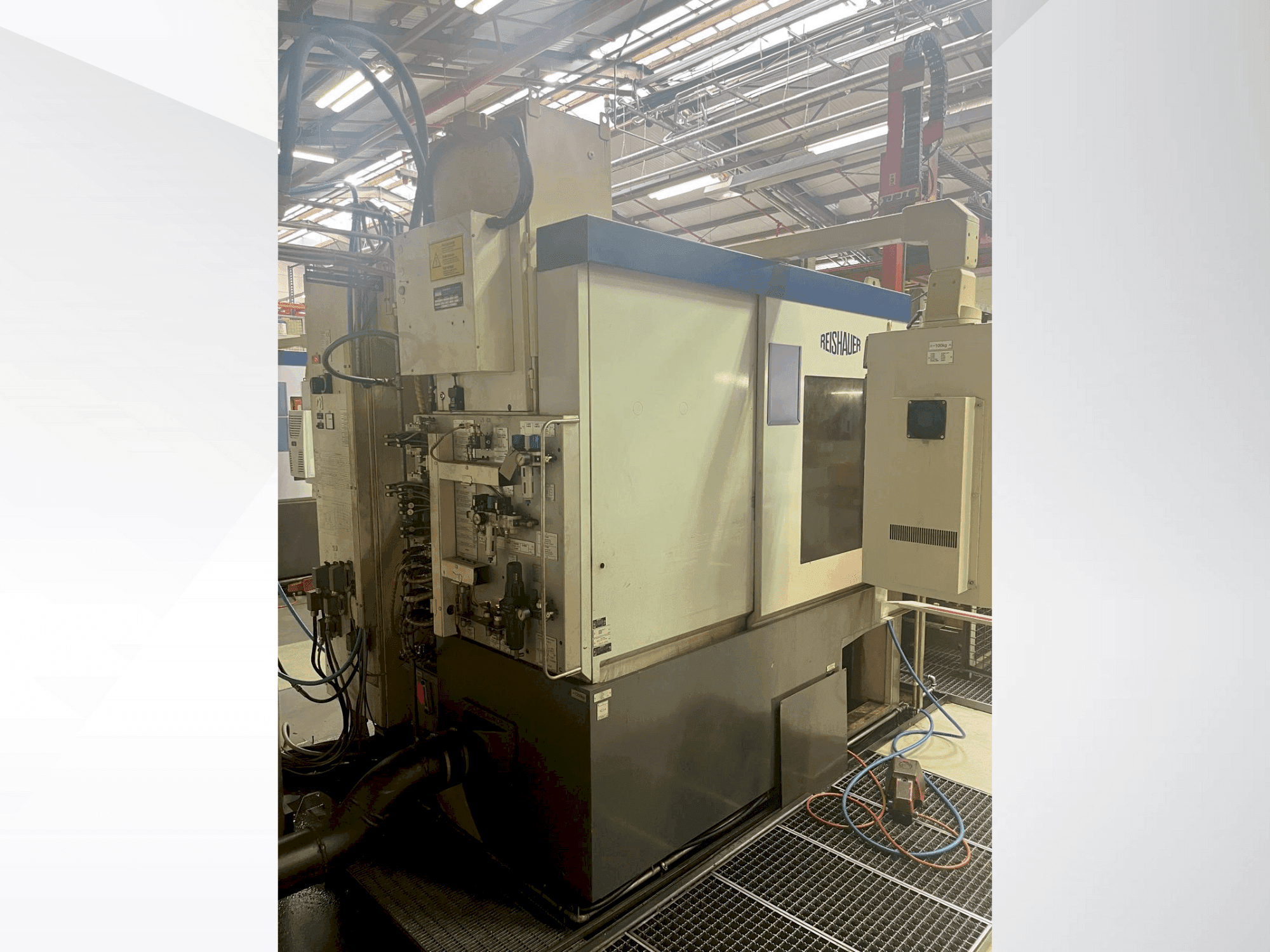

Reishauer RZ 150

Photo Gallery

Reishauer - RZ 150DE-GRI-REI-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Reishauer RZ 150 For Sale | gindumac.com

Show in original language

This Reishauer RZ 150 grinding machine was manufactured in 2007. It features a maximum wheel diameter of 150 mm, wheel width of 100 mm, and can handle workpieces up to 2 kg. The machine offers a grinding stroke of 100 mm and a clamping length up to 350 mm. It supports spindle speeds from 0 to 5200 1/min and includes Rice robot handling. For more information about this grinding machine, please reach out to us.

Overview

brand: Reishauer
year: 2007
MODEL: RZ 150
application type: Grinding
Location: Germany
machine type: Grinding Machine
control unit brand: SIEMENS

Technical Information - Reishauer RZ 150

Control Unit

Control Brand: SIEMENS
Control Model: 840 D

Technical Specification

Spindle Speed: 5200 RPM

Additional Information

Additional equipment

Shift axis (Y) / Pivot axis (A) / Feed axis (X) / Feed axis (Z)
Controlled dressing device (C4)
Grinding oil nozzle (P-axis)
RP 120 grinding worm profiling device
Hydraulic equipment: Tank capacity approx. 40 litres
Automatic CO2 extinguishing system FB 704
Tailstock nc-controlled
Pressure booster system
Control cabinet with Siemens S7-300 controller, pump capacity 160l/min at 20 bar,

Machine Benefits

Qualitative Machine Benefits

Rice robot handling

Technical Machine Benefits

Wheel diameter: 150 mm
Max wheel width: 100 mm
Module: 1 - 3
Number of teeth: 5 - 150
Max helix angle: +- 40 degrees
Top circle diameter: 10 - 145 mm
Base circle diameter: 10 - 145 mm
Grinding stroke: 100 mm
Clamping length: 350 mm
Workpiece turret (c3) / workpiece spindle (c1 and c2)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Technische Daten REISHAUER RZ 150 (2007).pdf
