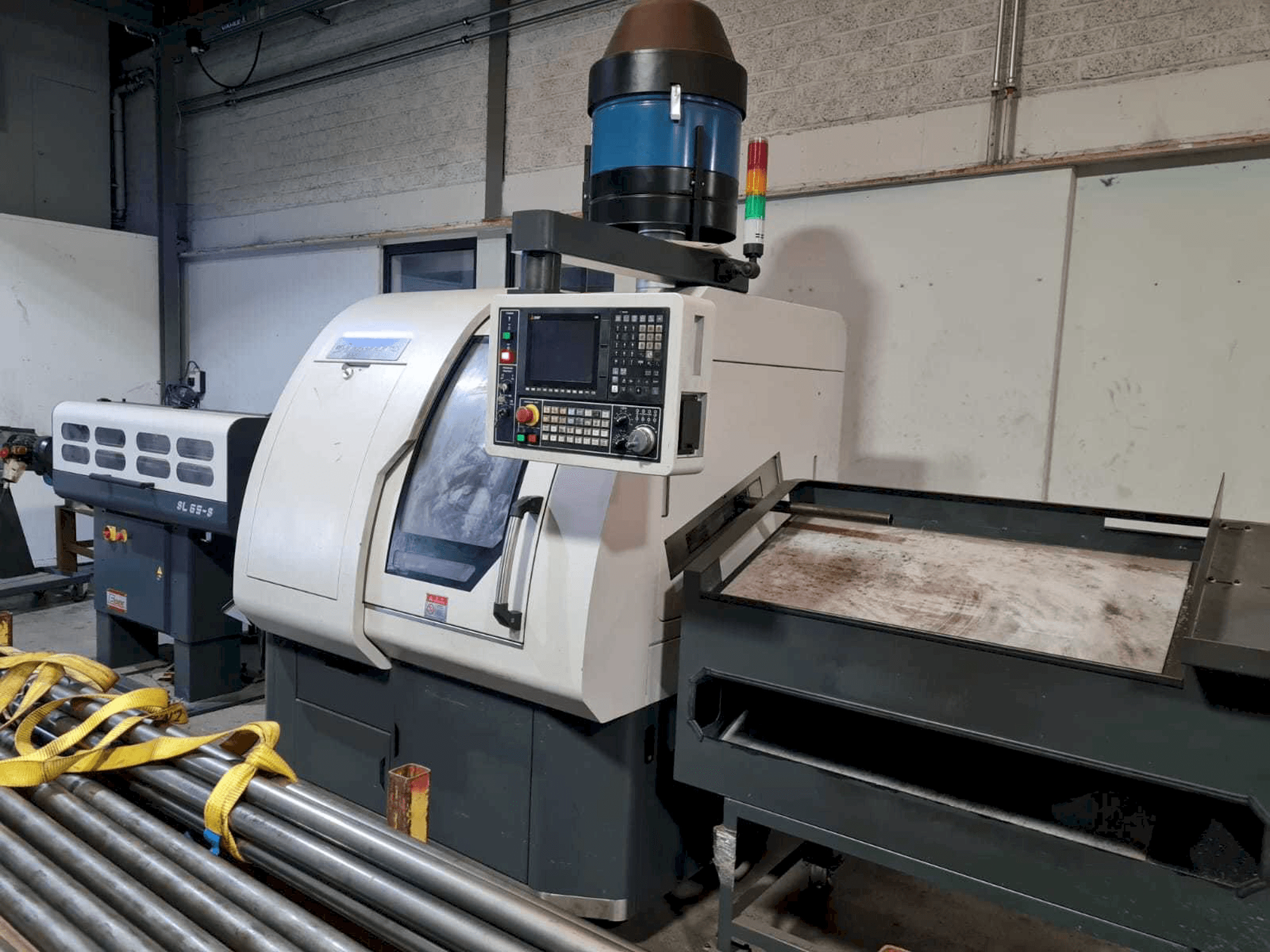

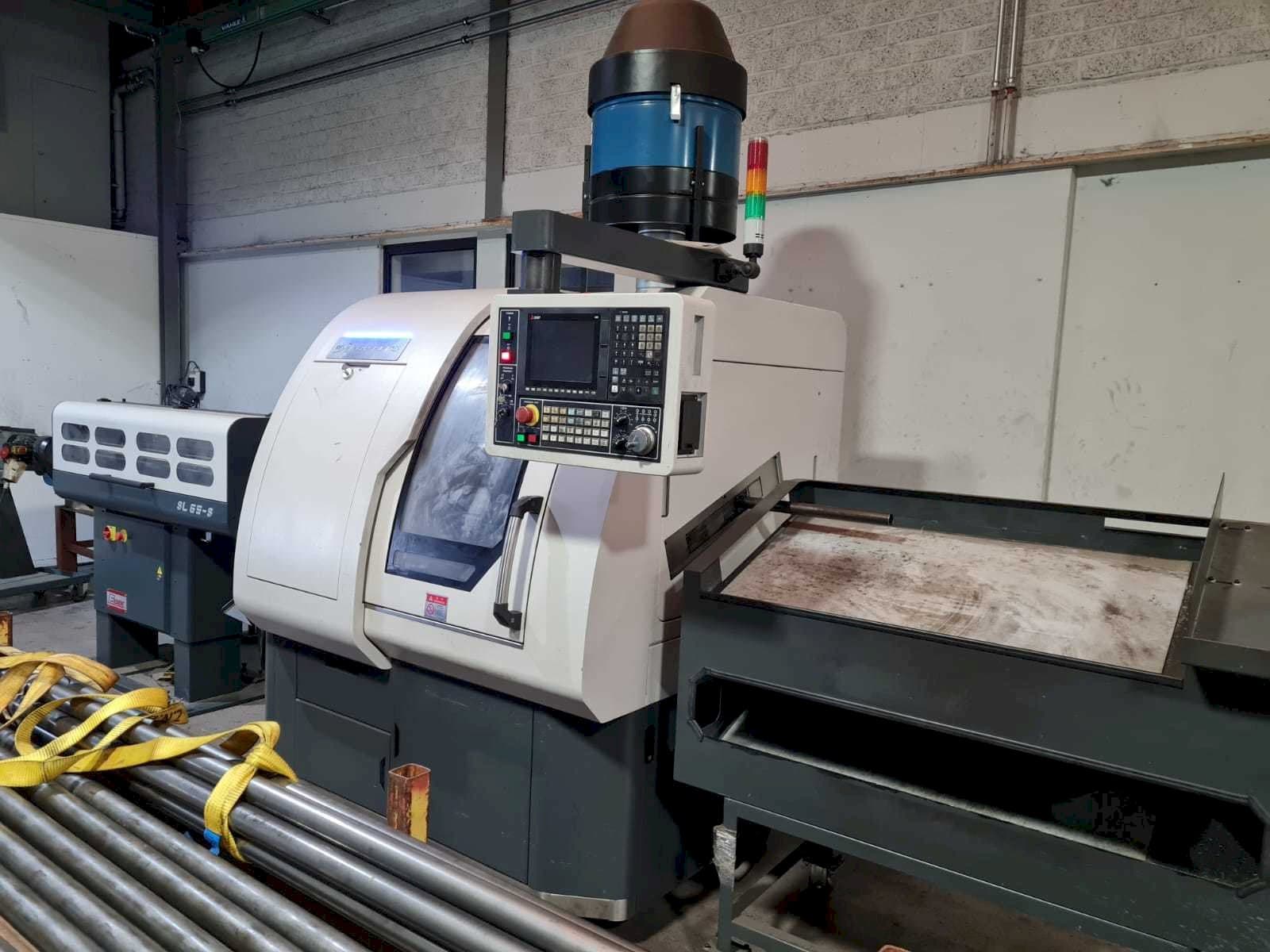

Ray Feng RC32 Lathe machine

Show in original language

This Ray Feng RC32 Lathe machine was manufactured in the year 2018. This can work with a spindle speed range up to 6000 rpm and a spindle speed of 5 kW. Also counts with a max. turning diameter of 33 mm and a max. turning length of 100 mm. Includes accesories.

Overview

brand: Ray Feng
year: 2018
MODEL: RC32
application type: Turning
Location: Netherlands
machine type: Swiss Type Turning Machine

Technical Information - Ray Feng RC32

Dimensions

Machine Depth: 1565 mm
Machine Height: 1835 mm
Machine Weight: 1800 kg

Technical Specification

Spindle Power: 5 kW
Spindle Speed: 6000 RPM

Additional Information

Additional equipment

Collet holder (1 collet) Foot switch for collet Machine lighting
4 drill holders
2 rotary holders
1 stop bar
Lubricate installation
User manual
Fedex LNS bar feeder type SL 65S (servo load)
Processed Pipe Collection Device (Right of Machine)
CE Compliance
Transformer 10Kva

Machine Benefits

Qualitative Machine Benefits

Workpiece collection device and mist cooling
Outside turning tool size: 16x16mm
Inside turning tool size: c20-er16

Technical Machine Benefits

Max. Turning diameter: 33 mm
Max. Turning length: 100 mm
Max. Across the transverse: 80 mm
X-axis displacement: 340 mm
Z-axis displacement: 150 mm
Rapid traverse displacement: 16 m/min
Max. Spindle passage: 32 mm
X/z engine: 0. 75 kw
Smallest date to be entered: 0. 001 mm
Cooling pump: 0. 56 hp

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
