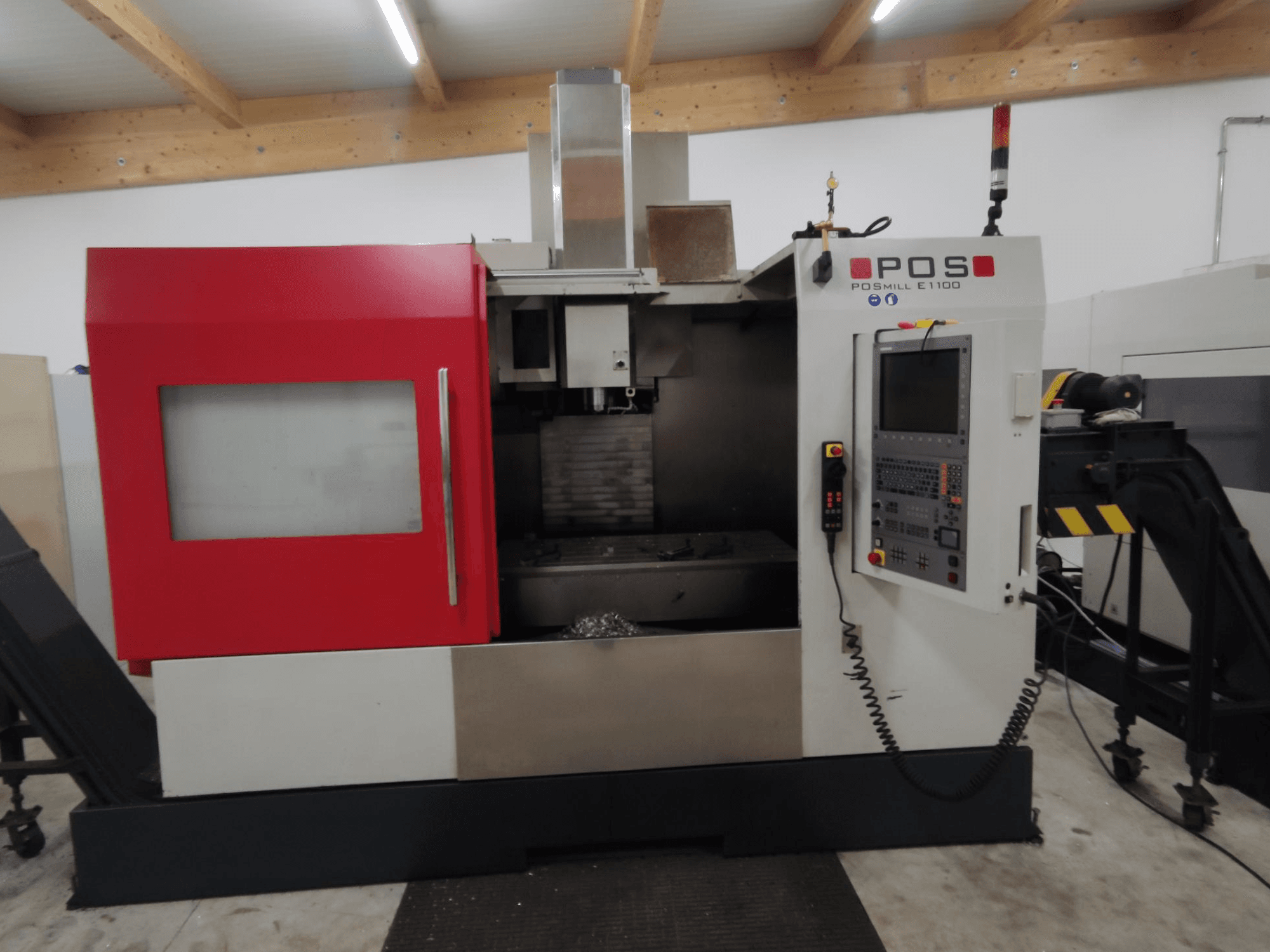

POS PSMILL E1100 CNC milling machine, front view, featuring red and silver housing, control panel, and safety indicator lights.
POS PSMILL E1100 CNC milling machine, front view, featuring red and silver housing, control panel, and safety indicator lights.

POSmill - E1100AT-MIL-POS-2013-00001

£ 30,465
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis POSmill E1100 was manufactured in 2013 and features a robust iTNC 530 control unit by HEIDENHAIN. It boasts a spindle speed of 10,000 RPM and a motor power of 25 kW. The machine offers X, Y, Z travels of 1100 mm, 600 mm, and 510 mm respectively, and supports a table load of 1000 kg. Consider the opportunity to buy this POSmill E1100 vertical machining centre. Contact us for more information about this machine.

Overview

  • brand: POSmill
  • year: 2013
  • MODEL: E1100
  • production hours: 70
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - POSmill E1100

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530

Dimensions

  • Machine Height: 3800 mm
  • Machine Length: 4300 mm
  • Machine Weight: 8500 kg
  • Table Load: 1000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1100 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 510 mm

Technical Specification

  • Max. Tool Weight: 8 kg
  • Spindle Power: 25 kW
  • Spindle Speed: 10000 RPM

Additional Information

  • Worktable: 1300 x 600 mm; spindle-to-table distance 120–630 mm

  • Tool magazine: 40 slots; max tool length 300 mm; tool holder ISO 40; tool changer TC40

  • Measurement: Linear measuring system on X, Y, Z

  • Safety/operation: Protective enclosure; Plexiglas hinged band; tool change door locking operation; tool change protection

  • Dimensions (with chip conveyor and coolant tank): 4.30 m x 3.80 m x approx. 3.80 m

Additional equipment

  • Chip conveyor

  • Lehmann rotary table S500 Edition 4

  • Internal coolant supply (20 bar) with belt filtration system

  • Mechanical coolant separator

  • Wash-down system and water gun

  • Workpiece measurement system 25 HDR

  • Lamella belt clamping device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
