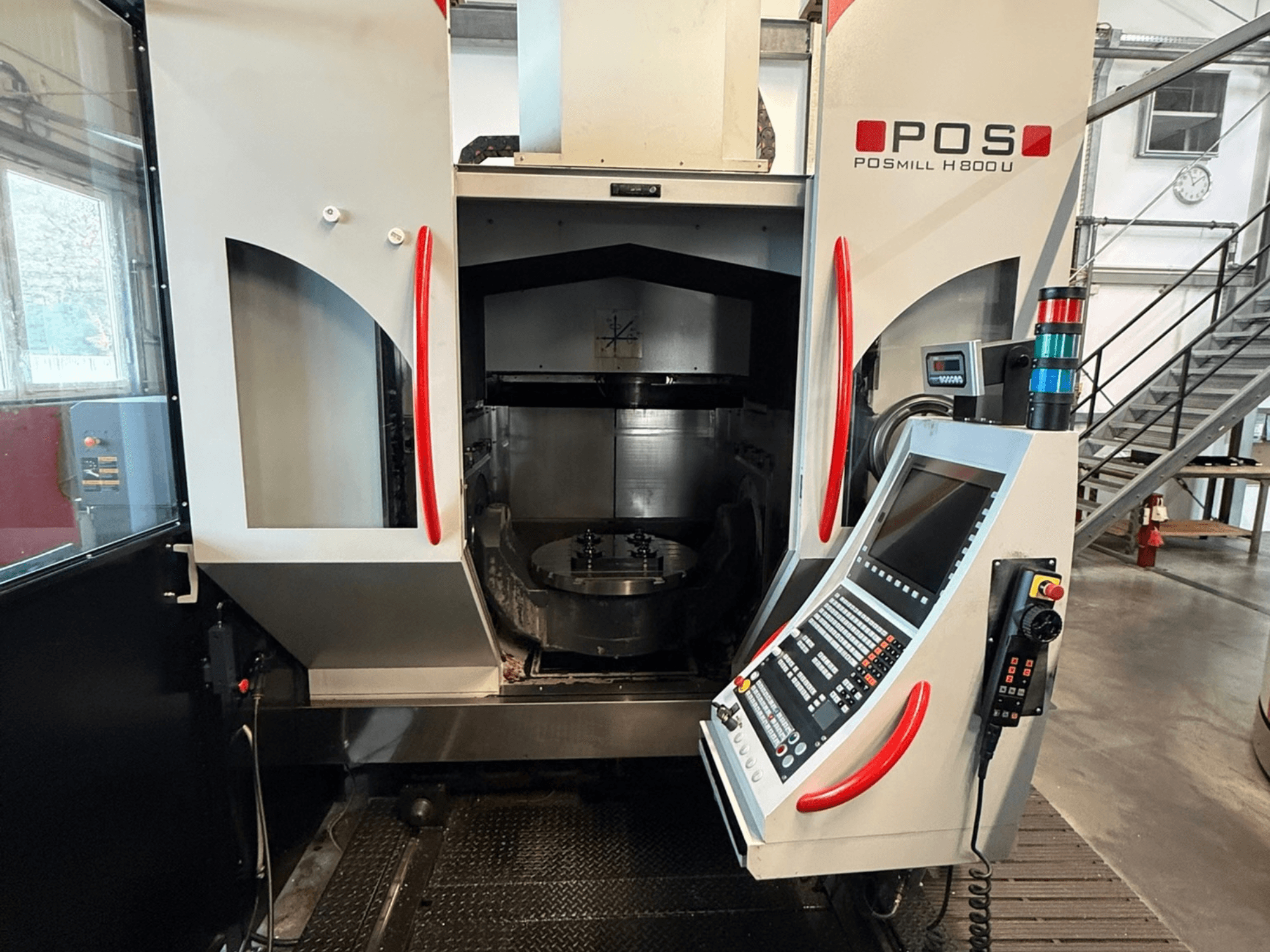

POSmill - H 800 UDE-MIL-POS-2015-00002

- Swivel Range: -120 to +120 degrees

- Rotary Table: 360 degrees continuous

- Spindle: Coolant Through Spindle (CTS / IKZ) 70 bar with belt filter unit

- Table Size: Ø 800 mm (Kessler Table)

- Tool Changer: 96-fold HSK-A 63

- Linear Measuring System: Heidenhain XYZ with purge air

- Switch Cabinet Cooler: Active Air-Air

- Connected Load: 90 kVA

- Full Load Current: 125 A

- Max Current Load: 200 A

- Voltage: 400 V, 50 Hz

- Operating Hours Control On: 27,157 h (as of end 2025)

- Operating Hours Program Run: 21,340 h (as of end 2025)

- Additional Equipment:

- Oil cooling for 4th and 5th axis, controlled

- Regulated spindle cooler

- Heidenhain Rotary Measuring System

- Heidenhain Kinematics Module incl. Reference Sphere

- External hinged belt chip conveyor

- Coolant pump at head via M-functions

- Chip flush device pump

- Electromechanical oil/coolant separator

- Automatic coolant level monitoring

- Tool changer rear operation with display

- Tool changer protective door

- 3-fold hydraulic connection in table center

- 1-fold air connection in table center

- Coolant unit temperature control

- Workpiece measurement preparation

- Infrared workpiece measurement - 3D Touch Probe

- Tool measurement via BLUM laser (Laser bridge)

- Heidenhain DCM collision module

- Automation System: FCS RP 400 Pallet Automation (Commissioned Early Sept 2018)

- Pallet Positions: 12

- Pallet Size: 400 x 400 mm

- Max Transfer Weight: 500 kg
