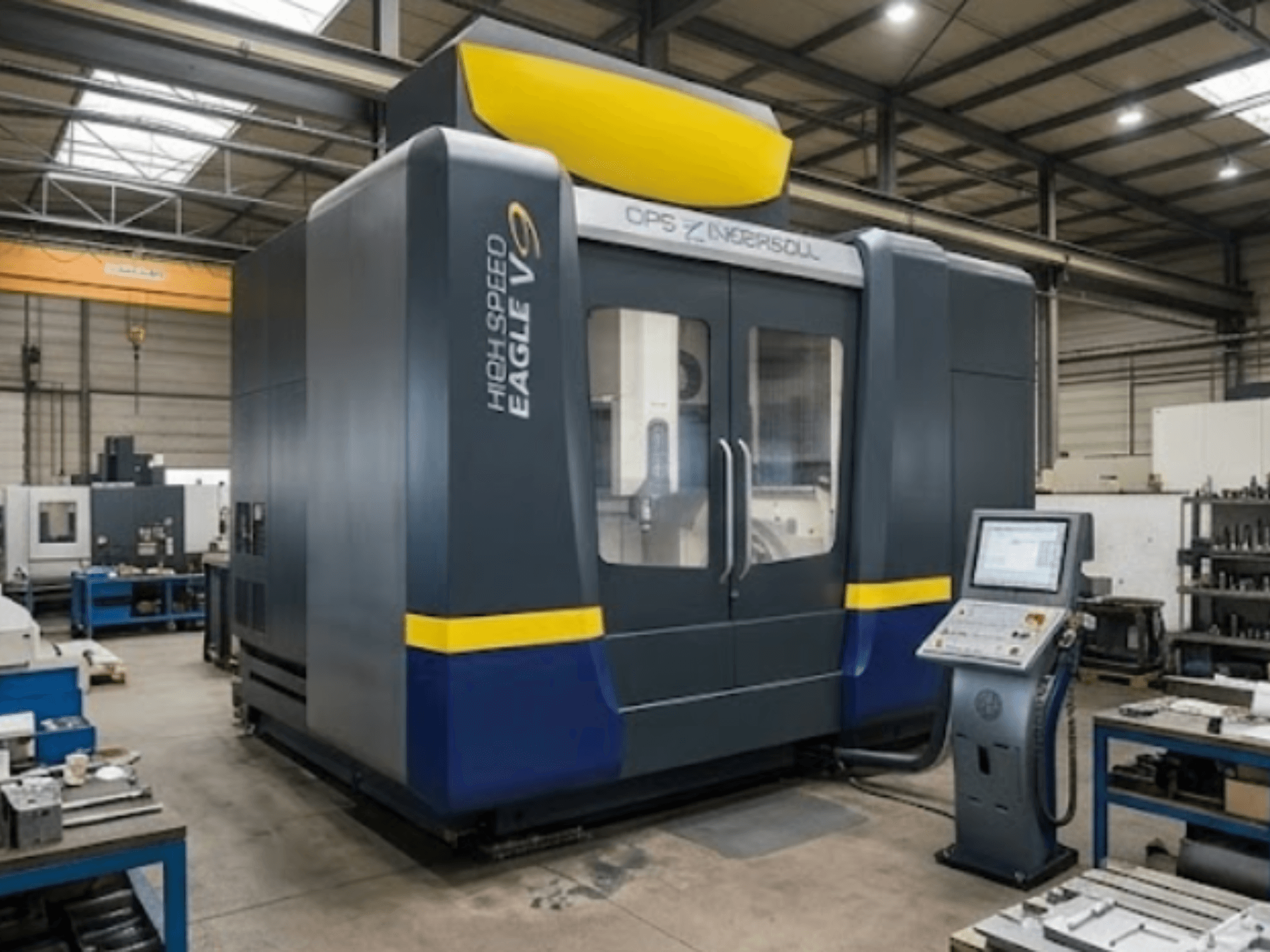

OPS INGERSOLL - Eagle V9DE-MIL-OPS-2014-00001

- Machine Structure: Double gantry drive in X and Y axes, vibration-damping polymer concrete bed with foundation-free 3-point setup

- X-Axis Travel: 800 mm

- Y-Axis Travel: 600 mm

- Z-Axis Travel: 500 mm

- B-Axis Travel: 140° / 60°

- C-Axis Travel: 360°

- B-Axis Speed: 25 rpm

- C-Axis Speed: 100 rpm

- Max. Rapid Traverse Speed: 45 m/min

- Max. Acceleration: 10 m/s²

- Spindle 1 (Standard): High-frequency spindle HSK-A63, 35 kW power, 1 to 18,000 rpm, 83 Nm torque

- Spindle 1 Tool Changer: HSK-A63, 48-fold

- Spindle 2 (Optional Option 5): High-frequency spindle HSK-E50, 17 kW power, 1 to 36,000 rpm

- Spindle 2 Tool Changer: HSK-E50, 72-fold

- Control System: HEIDENHAIN iTNC 530 HSCi

- Table Type: T-slot table (replaced by 4th/5th axis unit if option configured)

- 4th/5th Axis Workpiece Capacity: 500 mm diameter x 500 mm height, max weight 250 kg

- Precision Package 1: Heat exchanger circuit +/- 0.1°C and drive cooling

- Precision Package 2: Position and geometry error compensation X/Y/Z axes

- Precision Package 3 (5-Axis Option): ATDC (Automated Temperature Drift Control), 5-axis compensation, Heidenhain KinematicsOpt with calibration sphere

- Tool Measurement: Blum laser system for tool breakage control and tool length/diameter compensation

- Workpiece Measurement: Infrared touch probe Renishaw

- Lubrication: Minimum quantity lubrication (external spindle), automatic central lubrication for spindle, drive, and guide system

- Automation / Handling System (Option 13): Handling system IMC5 MultiChange light (Year 2004) mounted on right side, RCS standard gripper, 8-fold workpiece magazine

- Electrode Magazine (Option 14): Double electrode magazine Erowa ITS (154-fold)

- Additional Features:

chip box

automatic cutter cleaning with spray agent

HR410 handwheel
