➤ Used Okuma LB 400 CM For Sale | gindumac.com

Show in original language

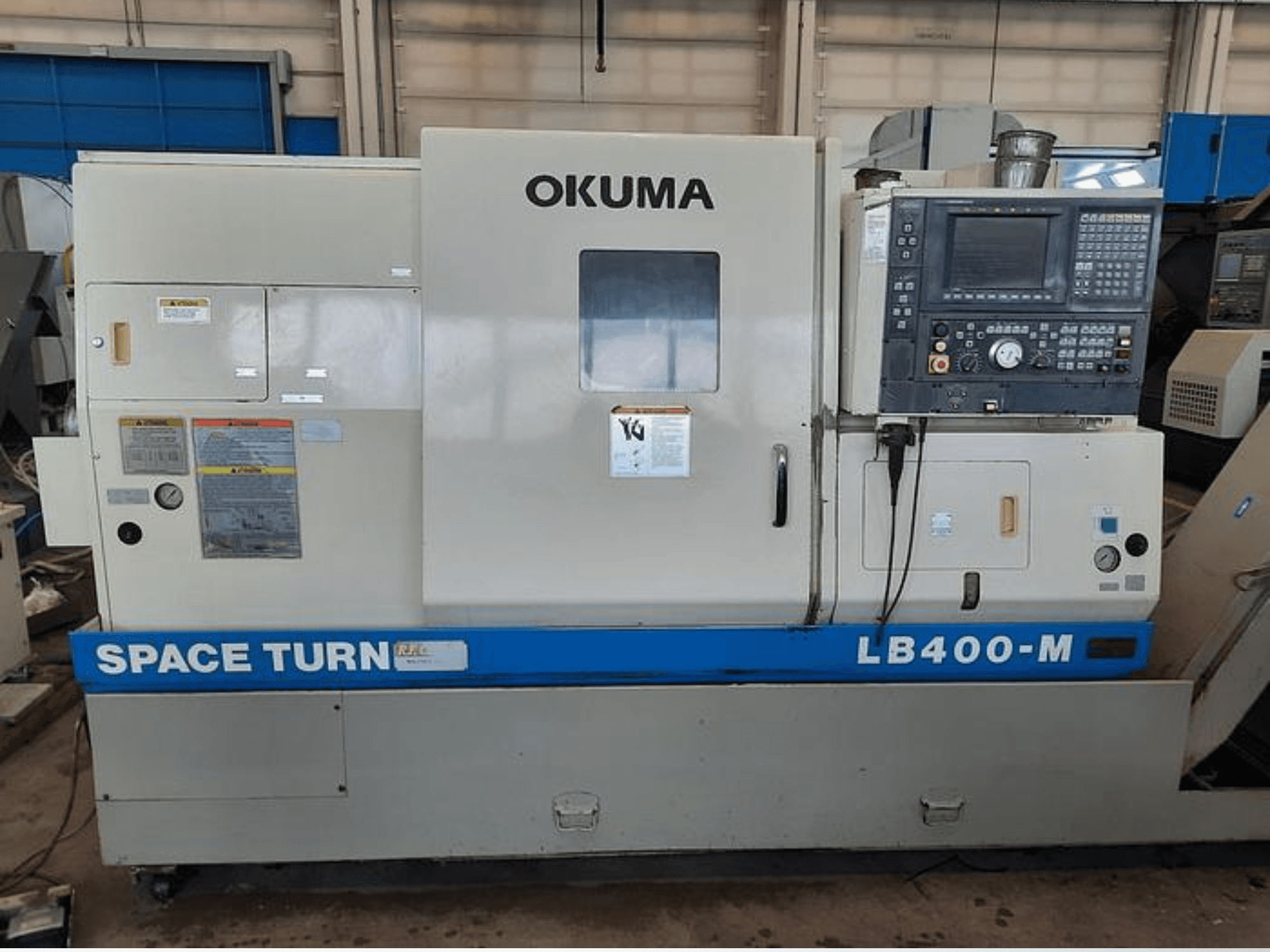

This 3-axis Okuma LB 400 CM horizontal turning machine was manufactured in 2001. It features a maximum turning diameter of 420 mm, a spindle speed range of 28 – 2,800 rpm, and motorized tool stations with speeds up to 3,000 rpm. Ideal for precision turning, it also includes a VDI 40 turret with 12 positions. If you are looking to get high-quality turning capabilities, consider the Okuma LB 400 CM machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2001
MODEL: LB 400 CM
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Okuma LB 400 CM

Dimensions

Machine Depth: 1900 mm
Machine Height: 1885 mm
Machine Length: 2700 mm
Machine Weight: 5500 kg

Movement

X-axis Travel: 300 mm
Z-axis Travel: 675 mm

Additional Information

Spindle Speed: 28 – 2800 rpm
Spindle Power: 30 / 22 kW
Spindle Taper: ASA 11
Bar Passage Diameter: 95 mm
Rapid Traverse X/Z: 20 / 25 m/min
Distance Between Centers: 675 mm
Maximum Swing Over Bed: 620 mm
Maximum Swing Between Centers: 480 mm
Maximum Turning Diameter: 420 mm
Maximum Turning Length: 650 mm
Turret Type: VDI 40, 12 positions
Turret Indexing Time: 0.2 sec
Motorized Tool Stations: 12
Motorized Tool Speed: 45 – 3000 rpm
Motorized Tool Power: 5.5 / 3.3 kW
Tailstock Barrel Diameter: 100 mm
Tailstock Travel: 150 mm
Tailstock Taper: CM 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
