Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Okuma - LB 300 MCIT-TUR-OKU-2005-00002
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- OKUMA LB 300 MC Lathe
Show in original language

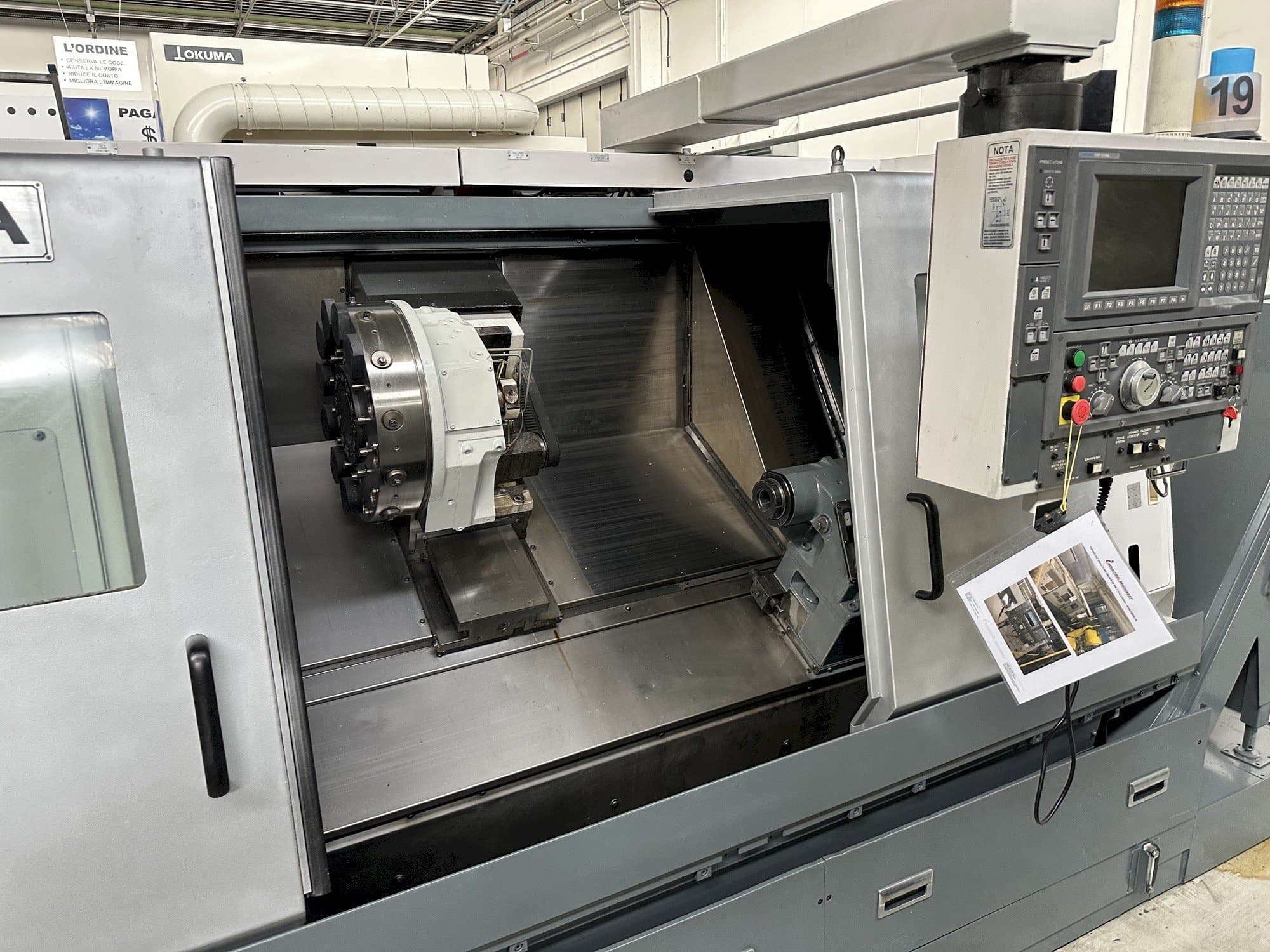

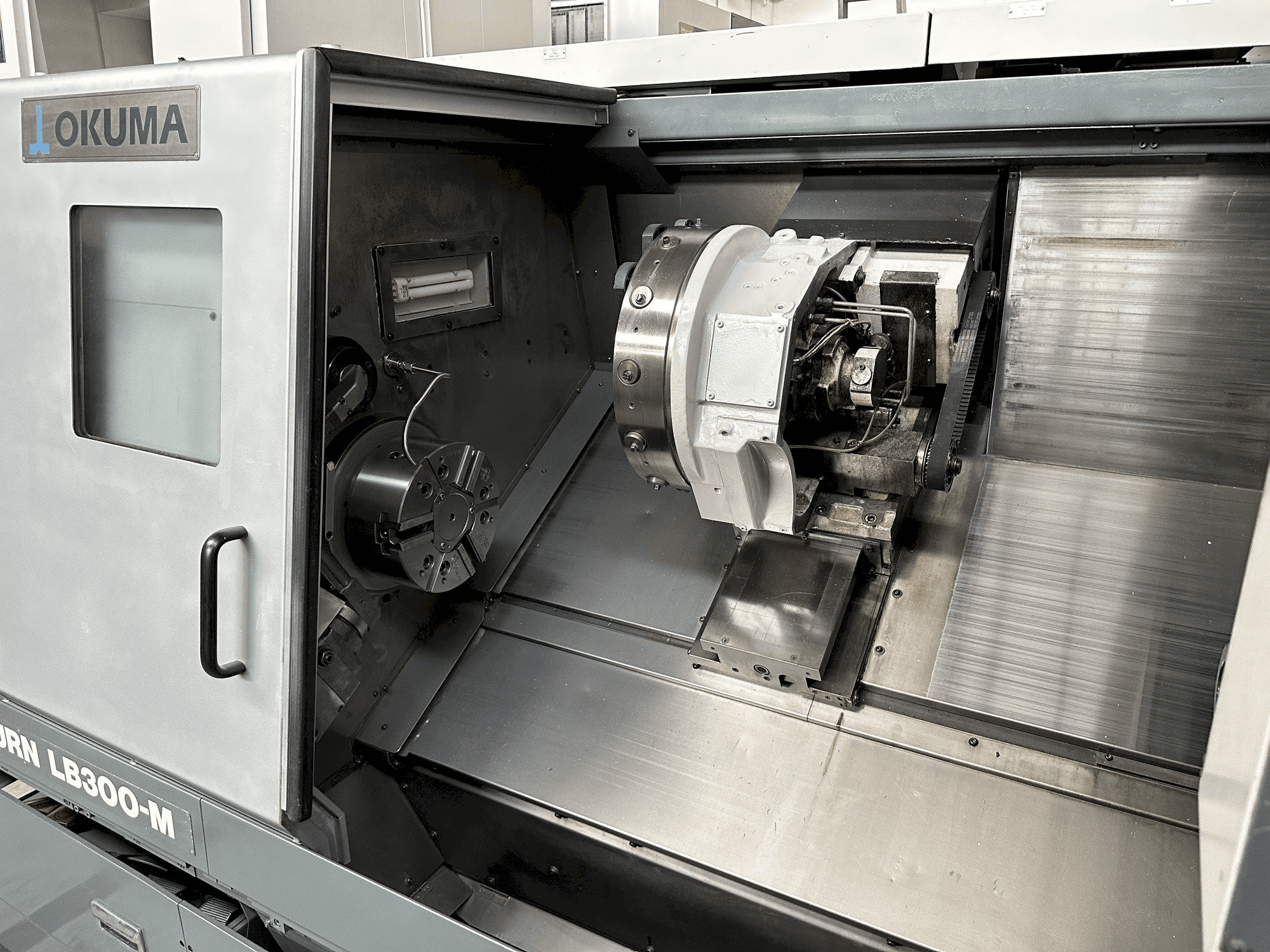

This OKUMA LB 300 MC Lathe was manufactured in the year 2005 in Japan and has 28875 production hours, of which 10369 are spindle hours. It is equipped with an Okuma OSP E 100 L control unit. The machine has a spindle speed of 3800 rpm.
Overview
- brand: Okuma
- year: 2005
- MODEL: LB 300 MC
- production hours: 28875
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LB 300 MC
Control Unit
- Control Brand: OKUMA
- Control Model: OSP E 100 L
Dimensions
- Machine Depth: 1895 mm
- Machine Height: 1925 mm
- Machine Weight: 6000 kg
Movement
- X-axis Travel: 260 mm
- Z-axis Travel: 1020 mm
Technical Specification
- Spindle Power: 2 kW
- Spindle Speed: 3800 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Turning diameter: 340 mm, max. Turning length: 1020 mm
- Turret type 12 pos. Vtbi 40
- Rot. Diam. On bench mm. 530, rot. Diam. On slide mm. 420
- Spindle hole: 80 mm,spindle speed ranges 2 elect.
- Speed feed mm/1' from 45 to: 4500, speed progress rapid mm/1' 25,000
- C axis 360,000 positions
- 12 motorized positions with 45/4500 rpm with 7 kw; tool setting
- Self-centering spindle diameter 250 mm. Autoblok, – n. 2 p/driven tools radial + n. 2 axial – predisposed for robots
- 2 automatic doors, spindle air blow
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
