Okuma - LB 25 IIIT-TUR-OKU-1995-00001

Name: Okuma LB 25 II
Brand: Okuma
SKU: IT-TUR-OKU-1995-00001
Price: 19395 GBP
Availability: InStock

£ 19,395

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LB 25 II For Sale | gindumac.com

Show in original language

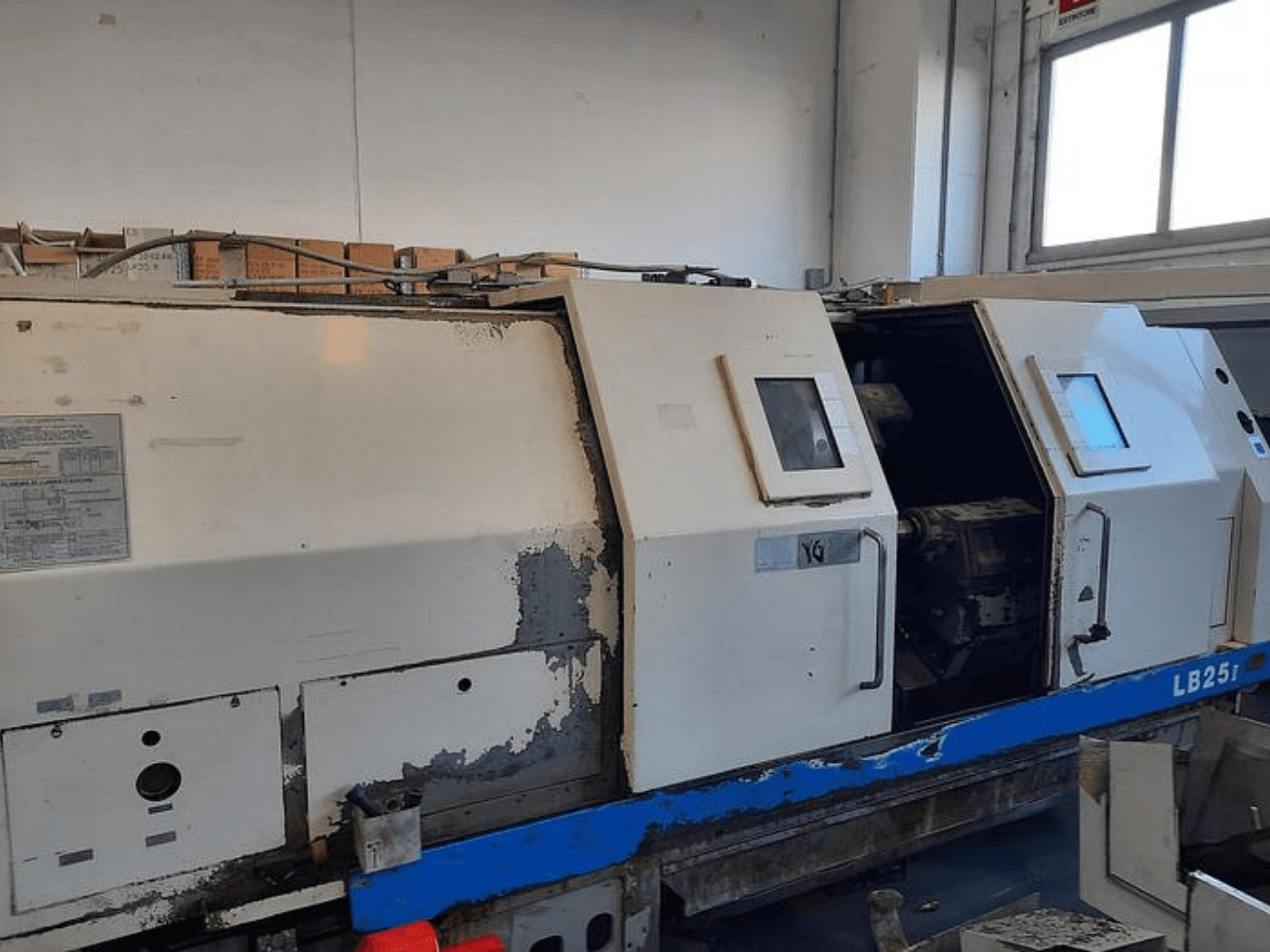

This Okuma LB 25 II was manufactured in 1995. It features a maximum turning diameter of 400 mm, turning length of 1,250 mm, and a swing diameter of 550 mm. The spindle supports speeds up to 3,800 rpm with a power of 26 kW. It includes a 12 station tool turret and a tailstock with an MT5 taper. Consider the opportunity to buy this Okuma LB 25 II horizontal turning machine. Contact us for more information.

Overview

brand: Okuma
year: 1995
MODEL: LB 25 II
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - Okuma LB 25 II

Dimensions

Machine Height: 11700 mm

Movement

Number of Axes: 2
X-axis Travel: 230 mm

Technical Specification

Spindle Power: 26 kW
Spindle Speed: 3800 RPM
Taper Size: VDI 40

Additional Information

Distance between centers: 1,250 mm
Maximum turning diameter: 400 mm
Maximum turning length: 1,250 mm
Maximum swing diameter: 550 mm
Rapid traverse X-axis: 20,000 mm/min
Rapid traverse Z-axis: 25,000 mm/min
Incremental axis resolution X/Z: 0.001 – 1.000 mm
Spindle type: ASA 11
Autocentring chuck: 400 mm
Bar passage diameter: 91 mm
Tool stations: 12
Tailstock taper: MT5
Machine footprint: 4,865 × 2,620 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
