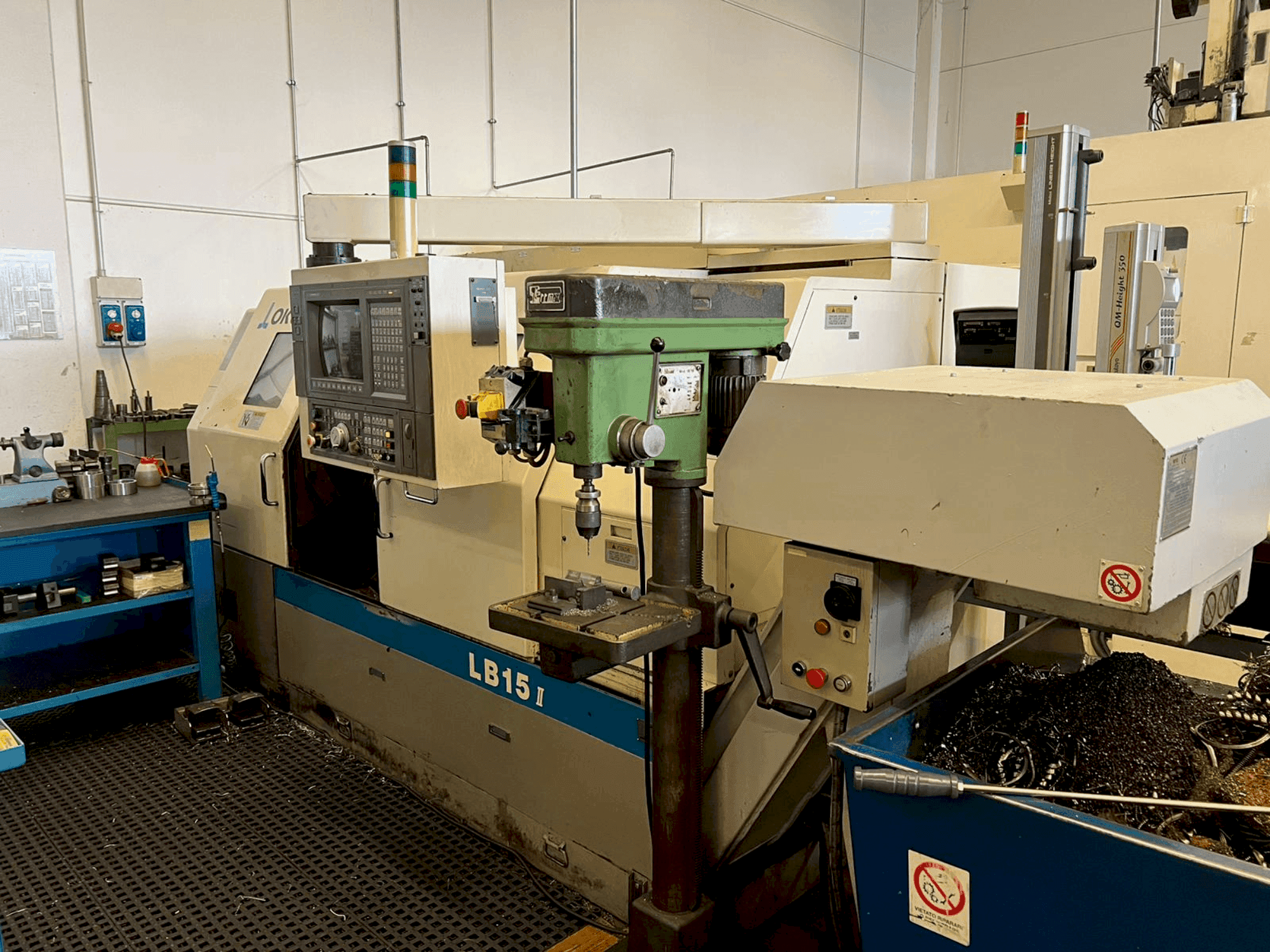

Front view of Okuma LB 15-II M  machine

Okuma - LB 15-II MIT-TUR-OKU-1998-00004

£ 16,750
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Okuma LB 15-II M horizontal turning machine was manufactured in 1995. It features an OSP 7000 L control, a 12-station tool holder, hydraulic tailstock, and a chip removal system. The machine supports a maximum turning diameter of Ø 340 mm and a distance between centers of 1020 mm. It's equipped with a spindle speed up to 3500 rpm and a rapid feed rate on the Z axis of 20,000 mm/min. For more information about this horizontal turning machine, please reach out to us.

Overview

  • brand: Okuma
  • year: 1995
  • MODEL: LB 15-II M
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: OKUMA

Technical Information - Okuma LB 15-II M

General Data

  • Measurements width: 1895 MM
  • Measurements depth: 3485 MM
  • Measurements height: 2030 MM
  • Machine weight: 5900 KG

Control Unit

  • Brand: OKUMA
  • Model: OSP 7000 L

Main drive

  • Spindle speed range: 45 - 3500 1/MIN
  • Spindle motor power: 15/11 kW - 20/15 hp (20 min/cont.)
  • Number of axis: 3

Movement

  • X-AXIS Movement: 260 mm
  • X-AXIS Working Feed: 0.001 - 1,000,000 mm/rev
  • X-AXIS Rapid traverse: 15,000 mm/min
  • Z-AXIS Movement: 1020 mm
  • Z-AXIS Working Feed: 0.001 - 1,000,000 mm/rev
  • Z-AXIS Rapid traverse: 20,000 mm/min
  • C-AXIS Movement: 360° (0.001° unit) MM
  • C-AXIS Working Feed: 200 min⁻¹

Workpiece

  • Workpiece drm: 530 mm
  • Workpiece x: 1000 mm

    Additional Equipment

    • - Self-centering: 250 mm SMW AUTOBLOK
    • - Tool Presetting
    • - 12-station Tool Holder
    • - Hydraulic Tailstock
    • - Chip Removal System
    • - Lighting System
    • - ll necessary documentation: Operating and Maintenance Manual, Programming Manual, Electrical Schematics Manual

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - C-axis rapid feed rate: 200 min⁻¹
        • - Simultaneous tri-axial control (x, z, and c axes)
        • - Linear interpolation and circular interpolation
        • - Speed control: direct sb control with 4 digits
        • - Manual intervention mechanism: adjustable from 50 to 200%
        • - Various drilling and cutting cycles with repeat function
        • - Tailstock spindle diameter: 90 mm
        • - Conical hole of tailstock spindle: cm5
        • - Tailstock spindle travel: 120 mm
        • - Power supply voltage: 400 v - 50 hz
      • Qualitative Machine Benefits:
        • - Machine has always been maintained by the manufacturer and is in excellent working condition

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
