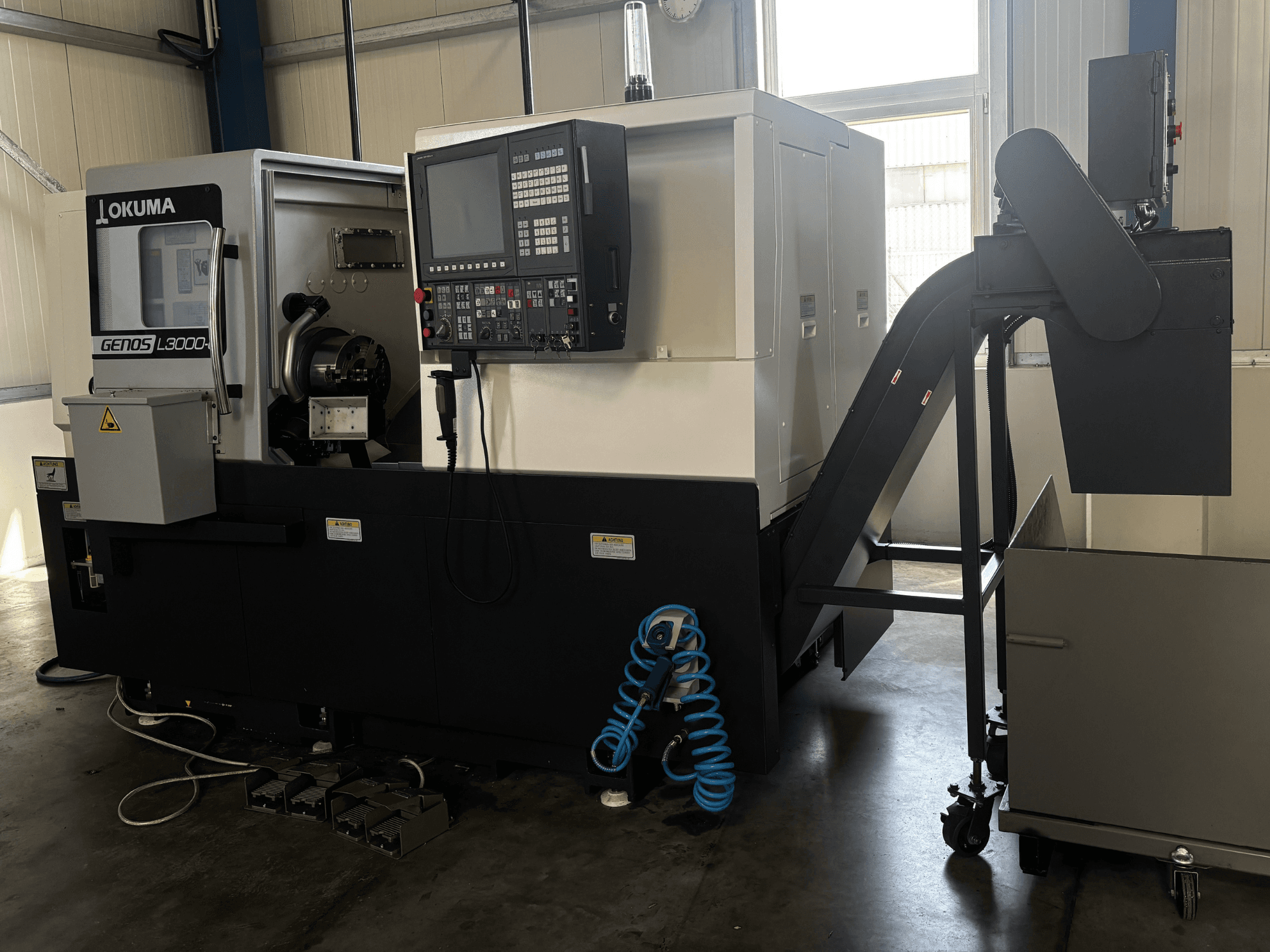

Okuma - GENOS L3000-e (Mx450)AT-TUR-OKU-2022-00001

- Operating Hours: 521 hours

- Spindle Running Time: 347 hours

- Control Unit: OSP-P300LA-e / OSP P300L-R-TD Kit

- Main Spindle Motor Power: 22 kW

- Main Spindle Speed: 3,800 rpm

- Chuck: 10" Hollow clamping chuck (250 mm) Type N210A8

- Spindle Bore: 80 mm

- Spindle Nose: A8

- Turning Diameter (VDI Turret): 300 mm

- Max. Turning Length (VDI Turret): 450 mm

- X-Axis Travel: 235 mm

- Z-Axis Travel: 520 mm

- C-Axis Range: 360° (0.001° resolution)

- Rapid Feedrate (X / Z): 25,000 / 30,000 mm/min

- Tool Turret: V12 Radial Turret with driven tool stations (VDI40)

- Turret Stations: 12 (all 12 can be driven)

- Driven Tools Power / Torque / Speed: 7 kW / 23.7 Nm / 4,500 rpm

- Tailstock: NC Tailstock (MT5 taper, 5.0 kN thrust force)

- Supply Voltage: 400 V

- Phase: 3 P

- Frequency: 50/60 Hz

- Rated Capacity: 28.6 kVA

- Full Load Current: 41.2 A

- Largest Motor Rating: 96 A

- Short Circuit Ratings: 2.5 kA

- Machine Dimensions (without chip conveyor): 2,545 mm x 1,870 mm x 2,057 mm

- Optional Equipment & Components:

* V12 radial turret for milling function

* Chip conveyor with side discharge

* Grundfos high-pressure pump (0.8 kW)

* Touch Setter M (Tool presetter)

* Tool carrier VDI40

* Real 3D graphics simulation & One Touch IGF dialog programming

* 1 set of soft jaws & 1 set of hard jaws

* 3 pcs. Boring bar holders

* 3 pcs. External turning holders

* 2 pcs. Face turning holders

* 8 pcs. Reduction sleeves (2x 16, 20, 25, 32 mm)

* 1 pc. Reduction sleeve MK02

* Parts catcher (max. material dim. D51mm x 150mm, max. weight 2.3kg)

* Bar feeder interface

* Grippex bar gripper (40mm shank diameter, gripping range 3-60mm)

* Hand wash gun set (incl. pump, spiral hose, switch)

* Transformer
