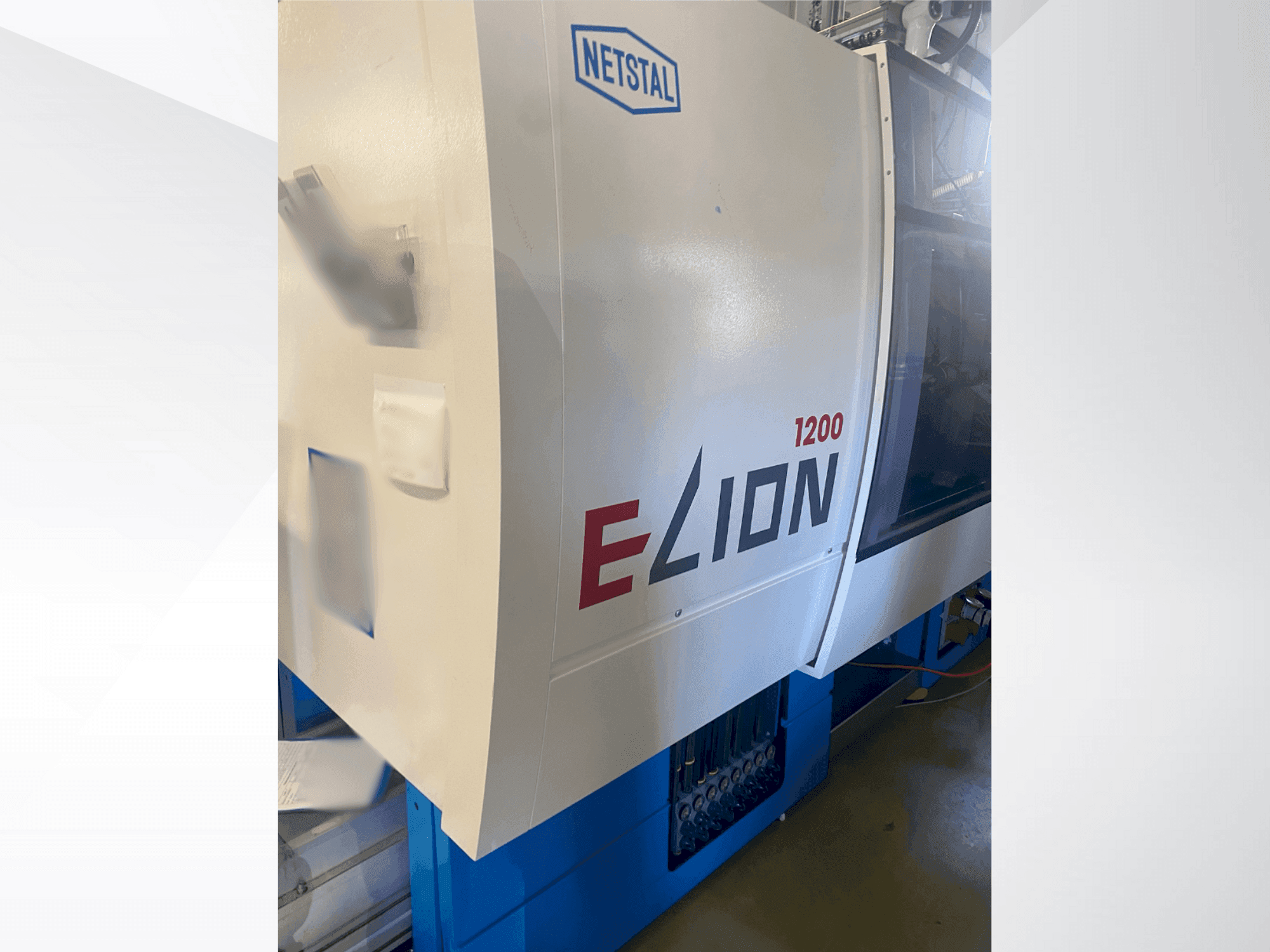

Front view of Netstal ELION 1200-270 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Netstal ELION 1200-270

Photo Gallery

Netstal - ELION 1200-270CH-INJ-NET-2005-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Netstal ELION 1200-270 For Sale | gindumac.com

Show in original language

This Netstal ELION 1200-270 was manufactured in 2005. A robust hydraulic injection moulding machine, it features a closing force of 1200 KN and a screw diameter of 32 mm. It offers a maximum shot weight of 98.8 grams and an impressive injection pressure of 2350 bar. Ideal for precision molding with a dry cycle stroke of 322 mm. A great opportunity to buy this Netstal ELION 1200-270 hydraulic injection moulding machine. Contact us for further details regarding this machine.

Overview

brand: Netstal
year: 2005
MODEL: ELION 1200-270
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine

Technical Information - Netstal ELION 1200-270

General Data

Measurements width: 1780 MM
Measurements depth: 4966 MM
Measurements height: 2044 MM
Machine weight: 9050 KG

Injection Unit

Screw diameter: 32 mm
Shot weight: 98.8 g (ps)
Injection pressure: 2350 bar
Heating capacity: 17.7 kW

Clamping unit

Clamping force: 1200 kN
Opening stroke: 440 mm
Distance between bars: 460 x 460 mm
Mould height min: 250 mm
Mould height max: 550 mm
Ejector stroke: 120 mm
Ejector force for / back: 33 kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Mold installation height ii: 450 – 750 mm
Max mold weight: 1556 kg
Max retraction force: 33 kn
Dry cycle stroke: 1. 3 - 322 seconds per mm
Nozzle contact force: 25 / 50 kn
Nozzle lift-off stroke: 510 mm

Technical Machine Benefits

Max metering stroke: 128 mm
Max shot volume: 102. 9 cm³
Standard injection flow rate: 201. 1 cm³/s
Power injection flow rate: 361. 9 cm³/s
Max injection speed standard/power: 250 / 450 mm/s
Max screw speed force/speed/master: 400 / 530 / 550 rpm
Max torque force: 480 nm
Max torque speed: 330 nm
Max torque master: 480 nm
Opening force: 1200 kn

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
