➤ Used Arburg 270 C For Sale | gindumac.com

Show in original language

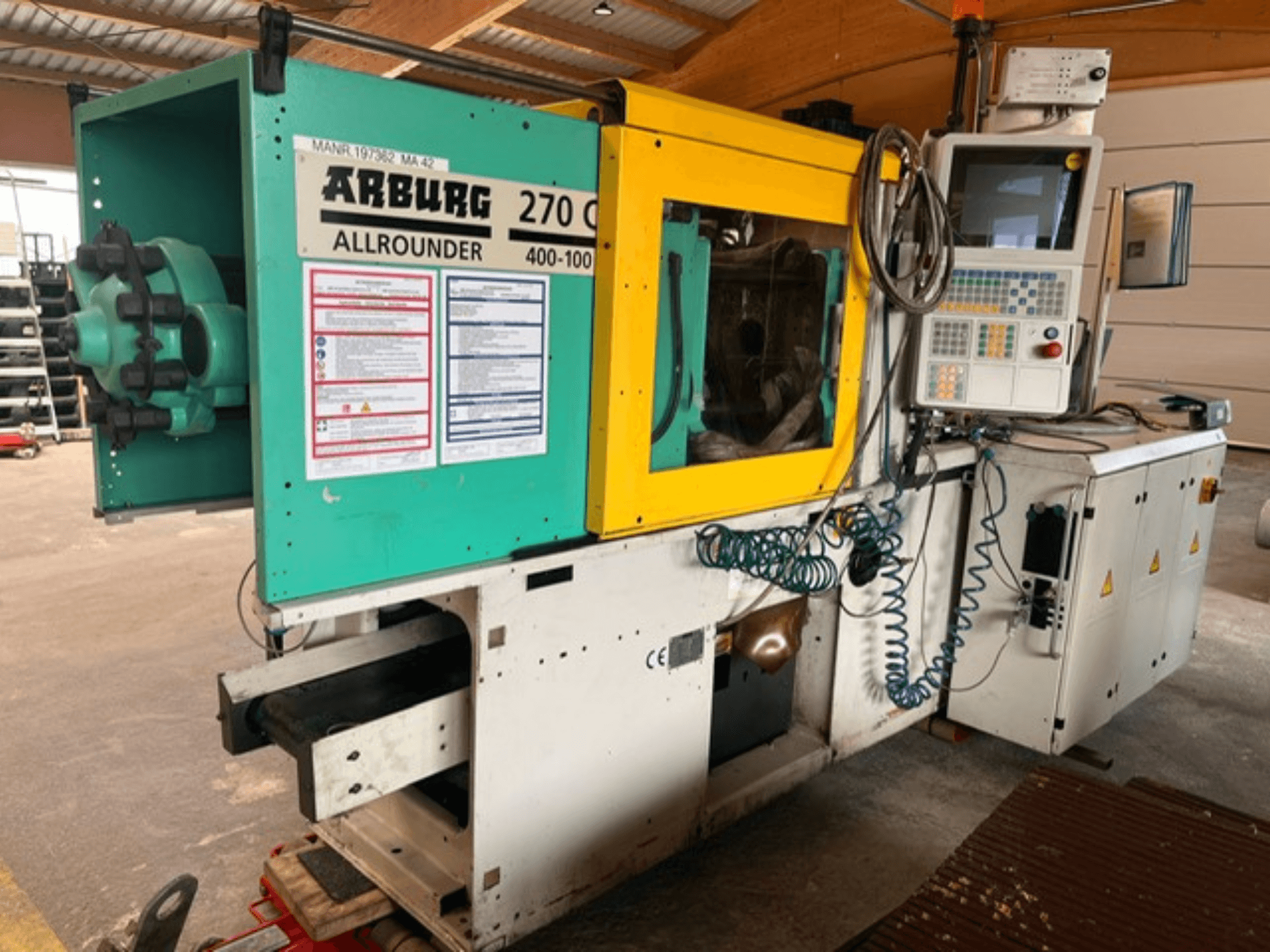

This 3-axis Arburg 270 C hydraulic injection moulding machine was manufactured in 2005. It features a total connected load of 54 kW and an integrated part discharge conveyor belt for efficient operation. The machine is CE marked and includes a Selogica control panel for user-friendly operation. If you are looking to get high-quality injection moulding capabilities, consider the Arburg 270 C machine we have for sale. Contact us for further details.

Overview

brand: Arburg
year: 2005
MODEL: 270 C
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine

Technical Information - Arburg 270 C

Technical Specification

Clamping Force: 400 kN

Additional Information

- Model: ALLROUNDER 270 C 400 - 100

- Operating Voltage: 400 V 3~ 50 Hz

- Control Voltage: 230 V ~ 50 Hz / 24 V DC

- Motor Rated Current: 59 A

- Heating Rated Current: 31 A

- Total Rated Current: 90 A

- Total Connected Load: 54 kW

- Control System: Selogica Control Panel

- Additional Equipment: Integrated part discharge conveyor belt

- Space Requirement / Footprint: 3.2 qm

- Total Power Requirement: 15 kW

- Lubricating Oil Type: Hyspin SP32 (Hazard class A2)

- Oil Capacity: 160 l

- Standards Compliance: CE Marked

- Equipment: Integrated conveyor belt, control panel terminal

- Optional: A cooling system and a second machine are available for an additional charge.

- Until now, both machines have been running on the same cooling system.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
