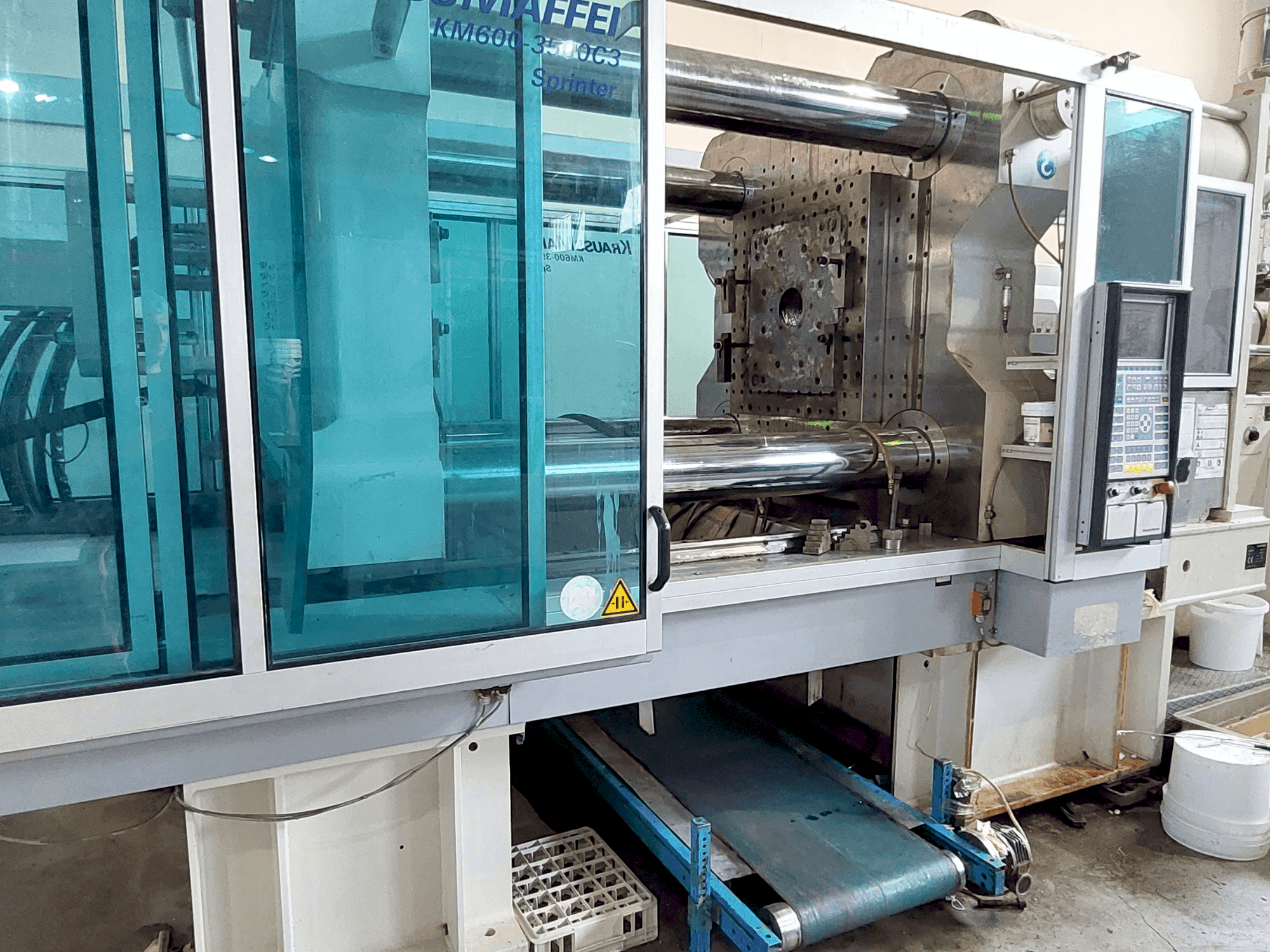

This Krauss Maffei 600 - 3500 C3 hydraulic injection moulding machine was manufactured in 2006. It features a tie bar distance of 1000 x 930 mm and an opening stroke of 1150 mm. Equipped with 1 core valve, 3 air valves, and a screw diameter of 80 mm, it also includes an EU 12 connection for robot integration. For more information about this hydraulic injection moulding machine, please reach out to us.
Overview
- brand: Krauss Maffei
- year: 2006
- MODEL: 600 - 3500 C3
- application type: Injection Moulding
- Location: Serbia
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
Technical Information - Krauss Maffei 600 - 3500 C3
General Data
- Measurements width: 2650 mm
- Measurements depth: 9360 mm
- Measurements height: 2430 mm
- Machine weight: 43400Kg
Injection Unit
- Screw diameter: 80 mm
Clamping unit
- Opening stroke: 1150 mm
- Distance between bars: 1000 x 930 mm
Additional Equipment
- - Core Valve: 1
- - Air Valves: 3
- - EU 12 for Robot Connection: Yes
- - Attached you will find some drawings with fundament and platens.
Additional Information
- Technical Machine Benefits:
- - Closing unit: · platen size 1510 x 1370mm · between tie bars 1000 x 930mm · oppening stroke 1150mm · min. Mold size 600mm · total open space 1750mm · ejector stroke 250mm
- - Injection unit: · sp 3500 with screw diameter 80 · l/d 25. 9 · injection pressure 2205 bar · volume stroke 1543 cm3 · max. Shot weight ps 1404g (around 1110g pp)
- - Instaled power: · main motor 160kw · servo motor for dosing 70kw (for paralel operations) · heating power 57kw
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
