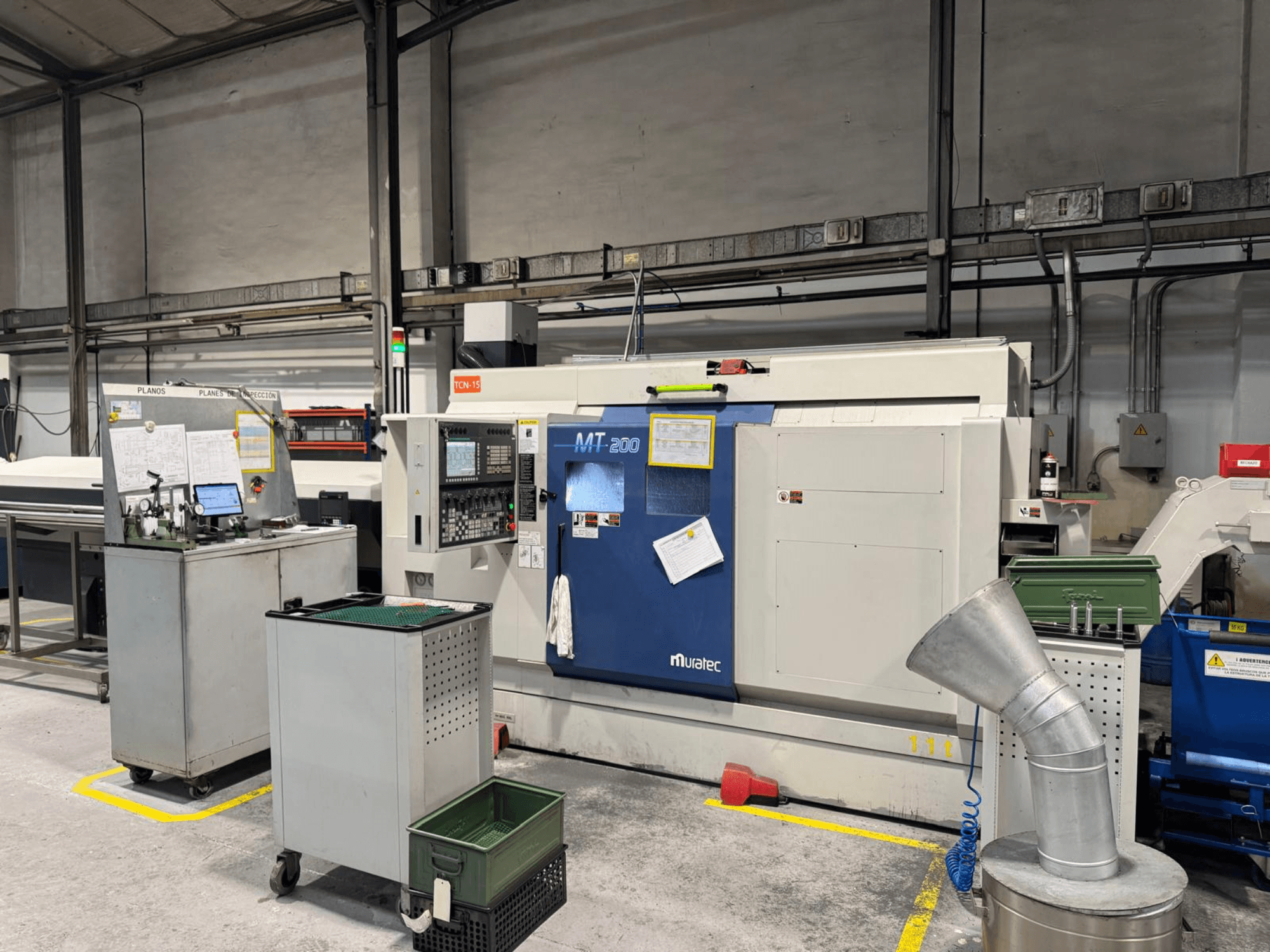

This 9-axis Muratec MT200 multi-spindle turning machine was manufactured in 2019. It features a maximum bar capacity of 65 mm and a chuck size of 210 mm. The machine includes an impressive maximum feed speed of 24 m/min on the X-axis and 36 m/min on the Z-axis. If you are looking to get high-quality turning capabilities, consider the Muratec MT200 machine we have for sale. Contact us for further details.
Overview
- brand: Muratec
- year: 2019
- MODEL: MT200
- application type: Turning
- Location: Spain
- machine type: Multi-Spindle Turning Machine
Technical Information - Muratec MT200
Movement
- Number of Axes: 9
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 65 mm
- Spindle Speed: 4000 RPM
Additional Information
Chuck size: 210 mm (8 inch)
Maximum swing: 205 mm (15 stations) / 228 mm (12 stations)
Maximum bar capacity: 65 mm (standard) / 80 mm (option)
Turret stations: 15 (upper and right) / 12 (lower)
Bar diameter: 65 mm (Standard) / 80 mm (Option)
Axis stroke (2-turret):
Upper turret: X 220 mm, Z 770 mm, Y +/- 40 mm
Lower turret: X 200 mm, Z 770 mm, Y +/- 40 mm
Right spindle (Zs): 880 mm
Maximum feed speed:
X axis: 24 m/min
Z axis: 36 m/min
Y axis: 12 m/min
Live tooling motor: 14.0 kW max (4.8 kW continuous)
Live tooling max speed: 4500 rpm
Spindle positioning: C axis control (+/- 0.015 degrees)
Additional equipment
Gantry loader capacity: 140 mm x 105 mm (3 jaw), up to 8.0 kg x 2 (option)
Parts catcher capacity: 65 mm x 160 mm, 2.5 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
