DOOSAN - Puma TT 2500 SYRS-TUR-DOO-2006-00001

Name: DOOSAN Puma TT 2500 SY
Brand: DOOSAN
SKU: RS-TUR-DOO-2006-00001
Price: 35917 GBP
Availability: InStock

£ 35,917

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma TT 2500 SY For Sale | gindumac.com

Show in original language

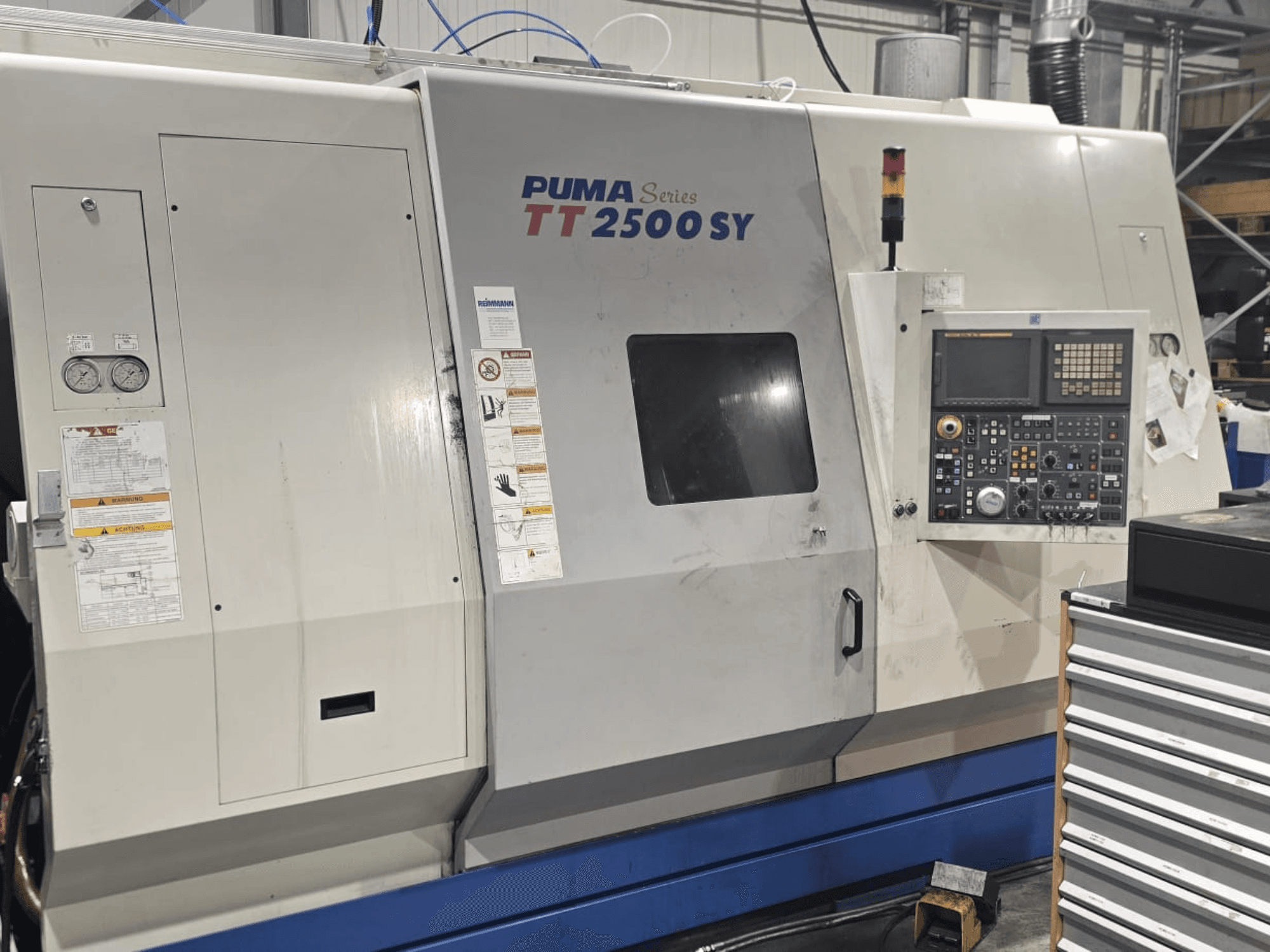

This 6-axis DOOSAN Puma TT 2500 SY was manufactured in 2006. It is a multi-spindle turning machine featuring twin spindles and twin turrets, equipped with a Fanuc 18i-TB control. Key specifications include a maximum turning diameter of 330 mm, turning length up to 500 mm, and bar capacity of 76 mm. Main spindle speed reaches 3500 RPM, while the sub-spindle can go up to 6000 RPM. If you are looking to get high quality turning capabilities consider the DOOSAN Puma TT 2500 SY machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2006
MODEL: Puma TT 2500 SY
application type: Turning
Location: Serbia
machine type: Multi-Spindle Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Puma TT 2500 SY

Control Unit

Control Brand: FANUC

Movement

Number of Axes: 6
X-axis Travel: 250 mm
Y-axis Travel: 50 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 3600 RPM

Additional Information

Max turning diameter: 330 mm (12.99 in); upper turret: 390 mm
Max turning length: 500 mm (19.6 in)
Bar capacity (main spindle): 76 mm (2.99 in)
Travels: X 250 mm (9.84 in), Y ±50 mm (±1.97 in), Z 580 mm (22.8 in)
Sub spindle speed: 6000 rpm
Sub spindle motor power: 7.5 / 11 kW
Notes: Series introduced mid-2000s

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
