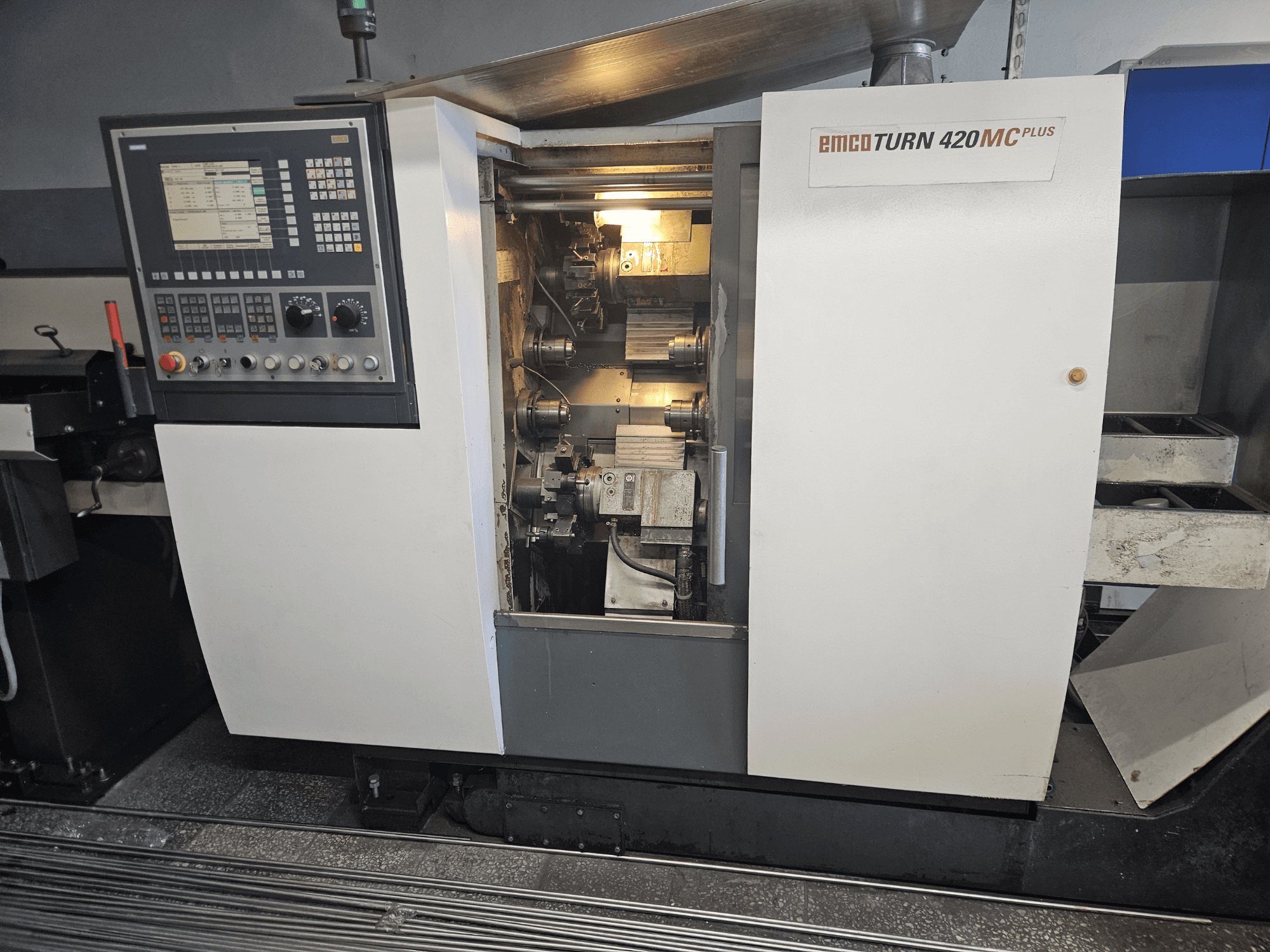

This 4-axis EMCO Turn 420 MC Plus was manufactured in 2005. It features a maximum turning diameter of 100 mm and a maximum part length of 600 mm. The machine is equipped with a powerful spindle speed range of 0–5000 rpm and a tool changer with 24 stations. If you are looking to get high-quality turning capabilities, consider the EMCO Turn 420 MC Plus multi-spindle turning machine we have for sale. Contact us for further details.
Overview
- brand: EMCO
- year: 2005
- MODEL: Turn 420 MC Plus
- application type: Turning
- Location: Poland
- machine type: Multi-Spindle Turning Machine
- control unit brand: SIEMENS
Technical Information - EMCO Turn 420 MC Plus
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D with EMCO specials
Dimensions
- Machine Height: 2200 mm
- Machine Weight: 2900 kg
- Machine Width: 2200 mm
Movement
- Number of Axes: 4
- X-axis Travel: 78 mm
- Y-axis Travel: 210 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Max. Bar Diameter: 26 mm
- Spindle Speed: 5000 RPM
Additional Information
Condition: Very good; connected and ready for testing
Tech specs:
Swing above slide: 160 mm
Main spindle to counter-spindle: 408 mm
Max. turning diameter: 100 mm
Max. part length: 600 mm
Max. bar-stock diameter: 26 mm
Travel:
X/Z: 78 mm
Main spindle:
Max. torque: 38 Nm
Spindle adapter: 70 h5
Spindle bearing (front ID): 60 mm
Spindle bore: 38 mm
Counter-spindle:
Speed range: 0–5000 rpm
Torque: 38 Nm
Spindle adapter: 70 h5
Spindle bearing (ID): 60 mm
Clamp length (Ø26 mm): approx. 100 mm
Travel (Z2): 233 mm
C-axis:
Resolution: 0.001°
Rapid traverse: 1000 rpm
Positioning: 3°
Drive power:
Power: 9 kW
Tool changer:
Tool stations: 2 × 12
VDI shaft: VDI 16
Tool size (square): 16 × 16 mm
Boring bar diameter: 25 mm
Indexing time: 0.4 sec
Driven tools:
Speed range: 0–5000 rpm
Max. torque: 3 Nm
Max. power: 1.6 kW
Number of tools: 2 × 4
Feed drives:
Rapid traverse X/Z; X1/Z1: 12/20 m/min
Feed force X: 3000 N
Feed force Z: 3000 N
Acceleration time: 0.1 sec
Coolant system:
Tank capacity: 200 L
Pump power: 0.57 kW
Power consumption:
Connected load: 15 kVA
Supply pressure: 6 bar
Supply rate: 300 L/h
Dimensions:
Center height (top/bottom): 1179 / 1030 mm
Footprint (W × D): 2200 × 1386 mm
Additional equipment
Set of accessories and tool holders included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
