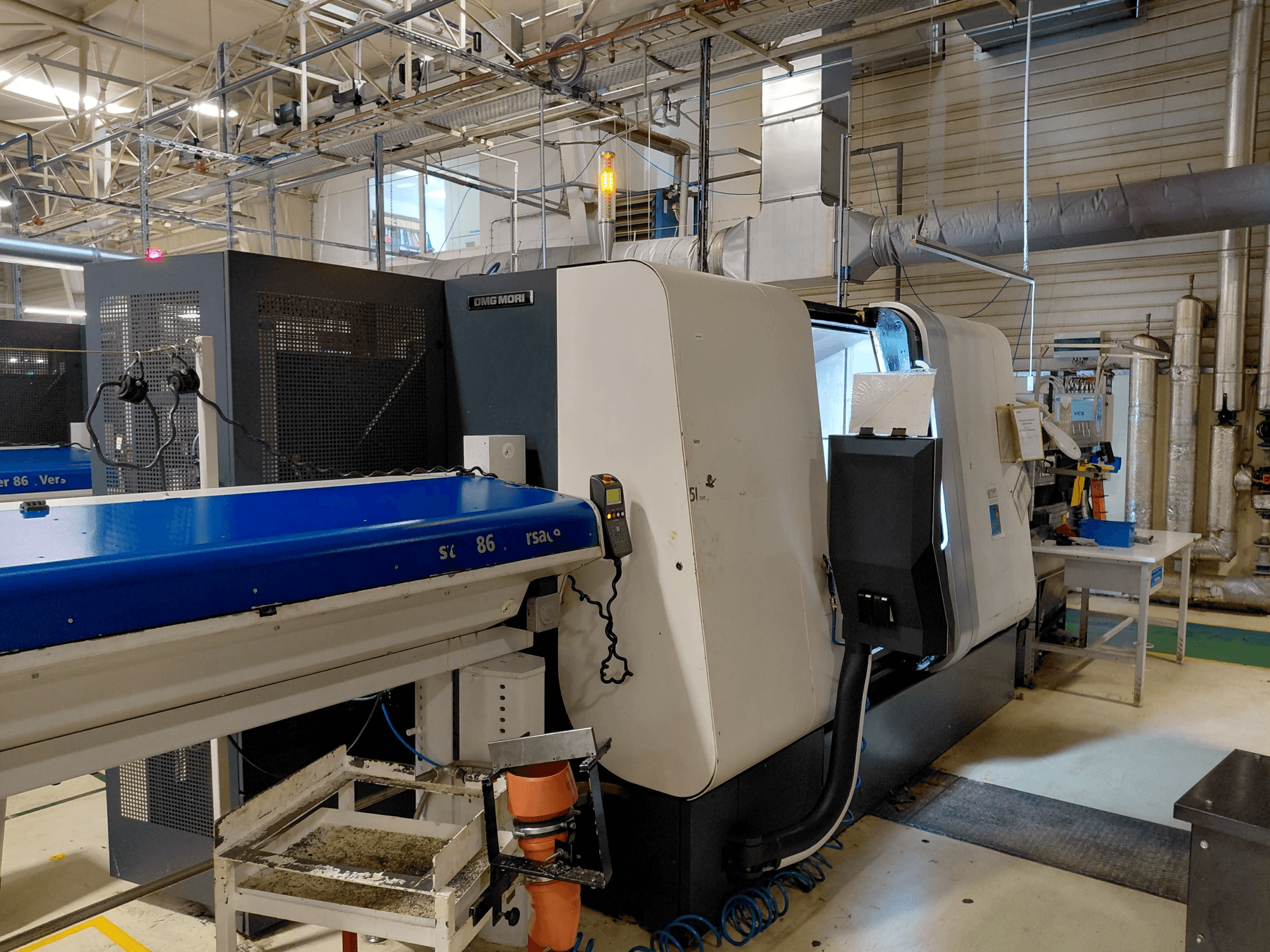

DMG MORI - Sprint 65 linearCZ-TUR-DMG-2015-00001

Control system: CNC 310 is

Total hours: 61295 h

Operating hours: 42222 h

Main spindle power 20/25 kW

Counter spindle power 17 kW

Max. main spindle speed: 5000 rpm

Max. counter spindle speed: 5000 rpm

Max. main spindle bar diameter: 65 mm

Max. counter spindle bar diameter: 45 (65) mm

CNC CONTROLLED AXES

Stroke X1 165 mm

Rapid speed X1 30 m/min

Acceleration X1 5 m/s2

Stroke Z1 678 mm

Rapid speed Z1 30 m/min

Acceleration Z1 5 m/s2

Stroke Y1 80 (+50/-30) mm

Rapid speed Y1 30 m/min

Acceleration Y1 5 m/s2

Stroke X2 165 mm

Rapid speed X2 30 m/min

Acceleration X2 5 m/s2

Stroke Z2 640 mm

Rapid speed Z2 30 m/min

Acceleration Z2 5 m/s2

Stroke W2 690 mm

Rapid speed W2 30 m/min

Acceleration W2 5 m/s2

Number of turrets 2

Number of rotating tools each station 12 all driven positions

Tool system VDI 30

Max driven tool speed 4.000 rpm

Approx. coolant tank capacity 650 l

Coolant pump max.capacity (per each turret) 20 l/min

Pump pressure 7 bar

Power supply 91 kVA

LxWxH of the machine 4.500x1.990x2.300 mm

Approx. machine weight 9.500 kg

IEMCA MASTER 865 MP 43 L (4m) bar feeder

Base machine configuration:

- Drive for slide 1 and 2 (all 12 pos.)

- C-axis for main and counter spindle

- Y-axis for slide 1

- Swarf conveyor belt type

- Counterspindle collet cleaning with coolant

- Workpiece unloading including belt

- Mechanical preparation for oil mist filter

- Electrical and software interface for bar loader

- Angular synchronism between main and counter spindle

- Automatic machine shut down

- 2 additional on/off outputs (4 M-functions)

- Rigid tapping

- Piece and time counter

- Software for polygonal turning for slide 1 and 2

- Constant cutting speed

- Helical interpolation for slide 1

- Spindle speed control

- Quadruple warning light

- Cooling device for electrical cabinet

Added options:

I-V50011 Collet chuck Type "MPF 65/140" without axial feed for main spindle max. diameter: 65mm.

Clamping elements and other equipment:

I-V50025 Manual collet changer type "SACO MPT65/140 and MPF65/140"

I-V50092 Differential pressure for counterspindle, possibility of setting two different clamping pressures.

I-V50083 1 set of soft jaws for chuck type "SMW 175-BBD"

I-V50080 Chuck type "SMW 175-BBD" For counter spindle, including adapter for adapting the spindle

I-V60050 Tool holder for drilling tools with internal cooling and cylindrical shank Ø 32mm,with clamping shank according to DIN 69880 (VDI 30) - 4pcs

I-V60010 Radial tool holder for external machining type C1 with clamping shank according to DIN 69880 (VDI 30) - 5pcs

Control system options:

I-V12060 Tool wear monitoring system Monitor for CNC FANUC

I-V12070 Sister tool selection system for Tool Monitor for CNC FANUC

Hydraulic and filtration equipment:

I-V40045 External flushing of jaws/collets with coolant on main spindle and counter spindle

Special options

SK001 Special clamping device with mandrel for counter spindle product HAINBUCH AXFIX 811 including 2 collets

Various new spare parts are included.
