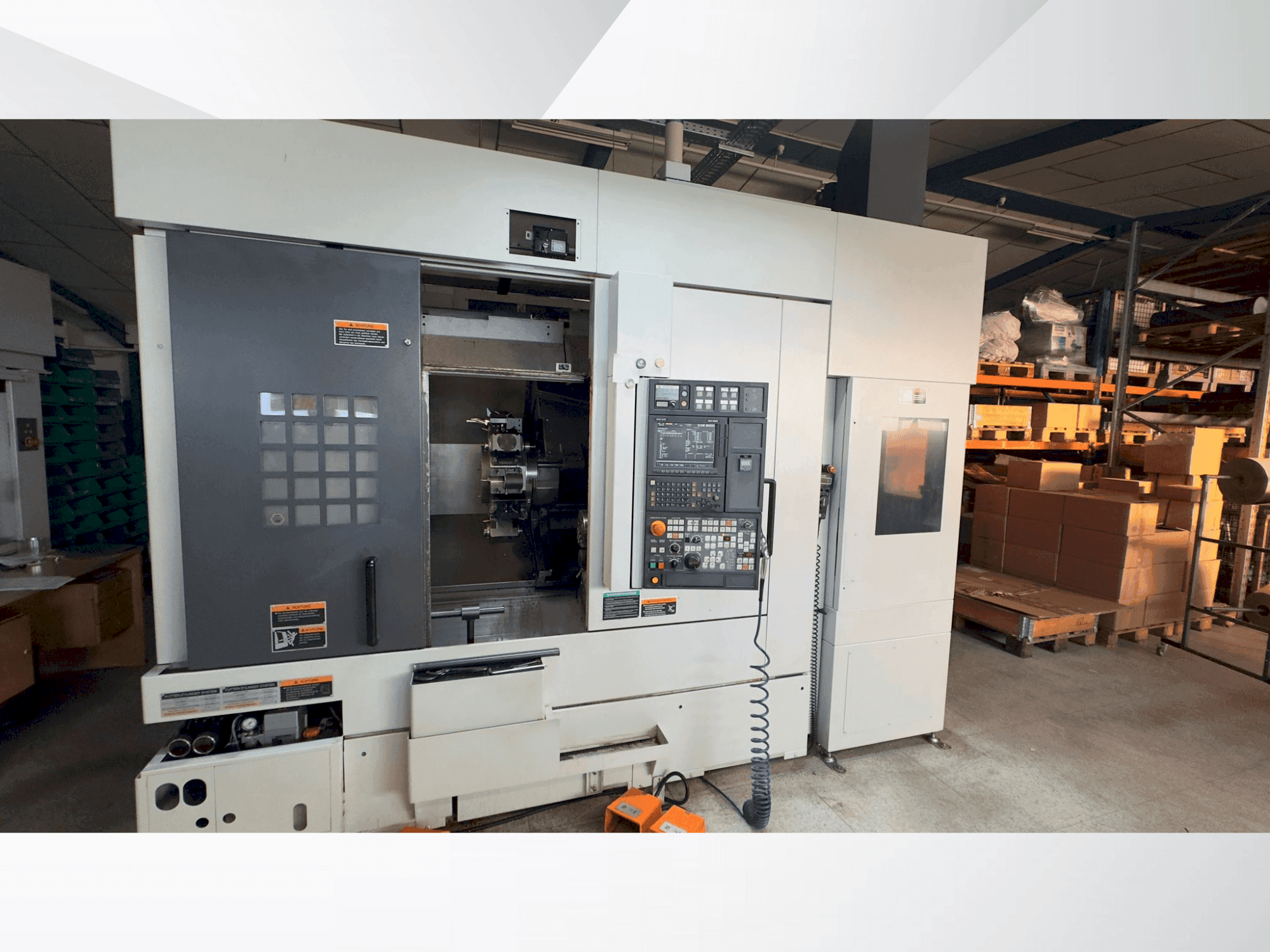

This 4-axis MORI SEIKI NL 2000 SY /500 turn-mill centre was manufactured in 2007. Ideal for precision machining, it features a robust design and advanced control system. If you are looking to get high quality turning and milling capabilities consider the MORI SEIKI NL 2000 SY /500 machine we have for sale. Contact us for more information.
Overview
- brand: MORI SEIKI
- year: 2007
- MODEL: NL 2000 SY /500
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
Technical Information - MORI SEIKI NL 2000 SY /500
Dimensions
- Machine Depth: 2695 mm
- Machine Height: 2120 mm
- Machine Weight: 5800 kg
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 590 mm
Technical Specification
- Max. Workpiece Diameter: 356 mm
- Spindle Power: 15 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Gantry loader for automatic loading and unloading
Machine Benefits
Qualitative Machine Benefits
- Feed motor power: x/y/b: 2. 0 | z: 3. 5 kw
Technical Machine Benefits
- Standard turning diameter: 275 mm
- Max. Turning length: 510 mm
- Max. Bar capacity: 65 mm
- Number of tool stations: 12 (10)
- Shank height for square tool: 25 mm
- Boring bar tool shank: main spindle: max. 50 mm / sub-spindle max. 32 mm
- Turret switching time: 0. 25 s
- Spindle nose: main spindle: jis a2-6 / sub-spindle: jis a2-5
- Spindle bearing (inner diameter): main spindle: 120 mm / sub-spindle: 85 mm
- Drive motor for driven tools: 5. 5/5. 5/3. 7 kw
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
