MORI SEIKI - NL 2500 SYES-TUR-MOR-2009-00002

£ 76,786
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

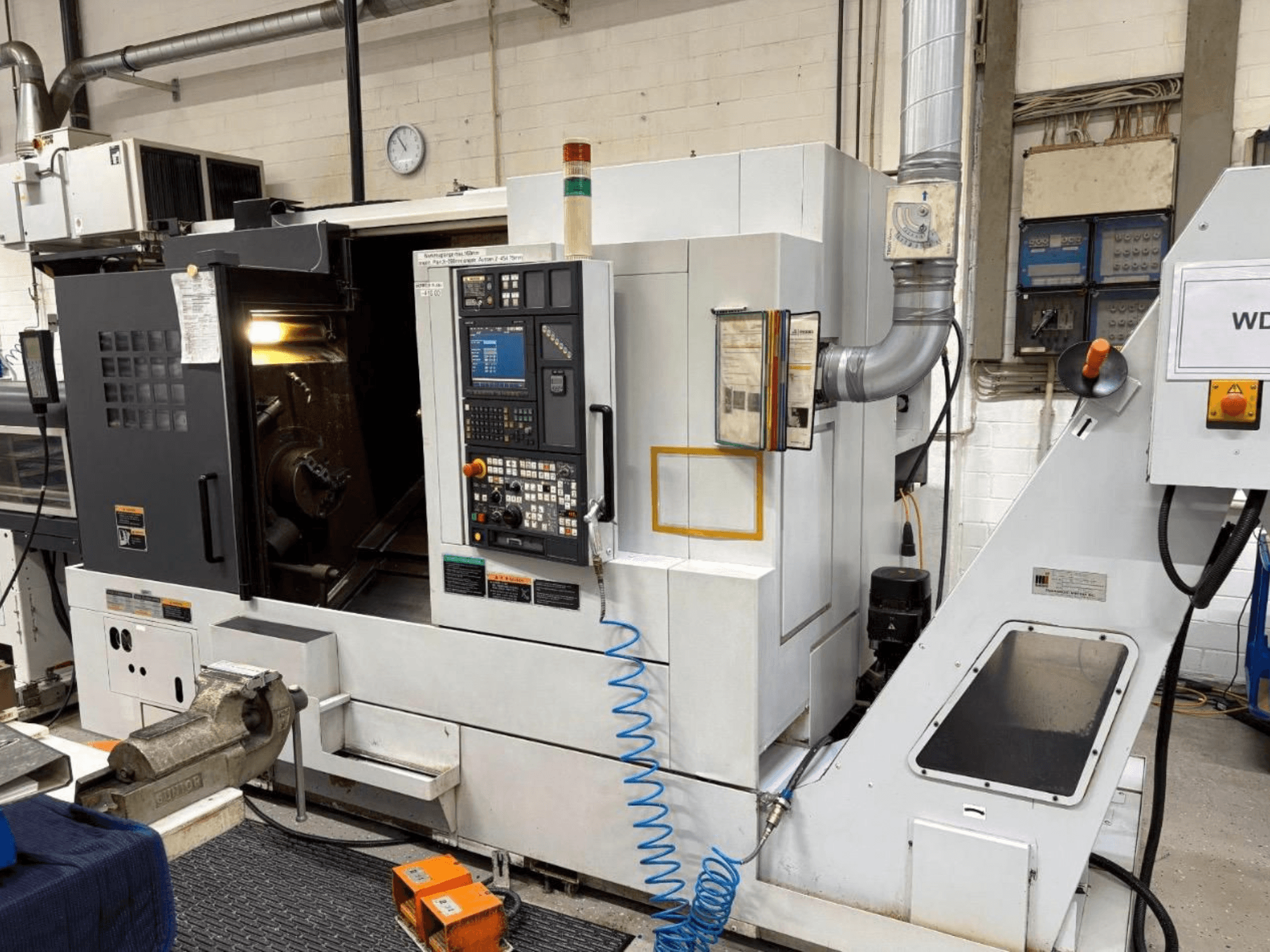

This 5-axis MORI SEIKI NL 2500 SY was manufactured in 2009. It features a maximum spindle speed of 4,000 rpm, a Y-axis travel of ±60 mm, and a Z-axis travel of 795 mm. The machine is equipped with a robust turret capacity of 12 stations and offers simultaneous turning and milling capabilities. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NL 2500 SY turn-mill centre we have for sale. Contact us for further details.

Overview

  • brand: MORI SEIKI
  • year: 2009
  • MODEL: NL 2500 SY
  • application type: Turning
  • Location: Spain
  • machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NL 2500 SY

Dimensions

  • Machine Weight: 5800 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 260 mm
  • Y-axis Travel: 120 mm
  • Z-axis Travel: 795 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Spindle Power: 18 kW
  • Spindle Speed: 4000 RPM

Additional Information

  • Rapid traverse rates:

    • X: 30 m/min

    • Z: 30 m/min

    • Y: 10 m/min

  • Main spindle:

    • Spindle nose: A2-8

    • Max bar capacity: 80 mm

    • Chuck: Kitagawa B-210, Ø250 mm

    • C-axis: 360° positioning

  • Sub-spindle:

    • Spindle nose: A2-6

    • Integrated motor power: 15 kW

    • Chuck: Kitagawa B-208, Ø210 mm

    • C-axis: 360° positioning

    • Parts transfer capability: Yes

  • Milling/driven tools:

    • Turret capacity: 12 stations

    • Driven tool stations: 12

    • Driven tool motor power: 5.5 kW

    • Max driven tool speed: 6,000 rpm

    • Direct drive tooling, live tool milling, off-centre machining

  • Turret and tooling:

    • Turret indexing time: 0.2 sec

    • Automatic tool measurement: Dual Renishaw tool measuring arms

  • Mechanical construction:

    • Guideways: Hardened box ways (prismatic) on all axes

    • Spindle drive: Built-in integrated motors

    • Transmission: Direct drive (no belts/gearboxes)

    • Starting torque: 640 Nm

  • CNC control:

    • Control: Mori Seiki MAPPS IV

    • Conversational programming, load monitoring, tool wear/consumption monitoring

  • Cooling and lubrication:

    • Main spindle oil cooler: Daikin

    • Sub-spindle oil cooler: Daikin

  • Connectivity:

    • USB, PCMCIA, RS-232

    • Bar feeder interface: Included

  • Machining capabilities:

    • Simultaneous turning and milling

    • Y-axis machining

    • Polar coordinate interpolation

    • Off-centre drilling and tapping

    • Front and back working with sub-spindle

    • Complete part machining in a single setup

    • Complex multi-axis machining

  • Typical applications:

    • Precision turned components

    • Aerospace parts

    • Automotive components

    • Hydraulic components

    • Medical components

    • General precision engineering

Additional equipment

  • LNS automatic bar feeder, 1.5 m capacity

  • Automatic parts catcher

  • Chip conveyor: Side-mounted hinge belt type

  • Independent chuck foot pedals (main and sub-spindle)

  • Electrical transformer

  • Documentation package:

    • Operation manual

    • Programming manual

    • Parts list

    • Electrical schematics

  • Tool holders: Static and driven tool holders included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
