Miyano BNA-42MSY2
Miyano - BNA-42MSY2
2017
£ 83,350
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Miyano BNA-42MSY2 Lathe

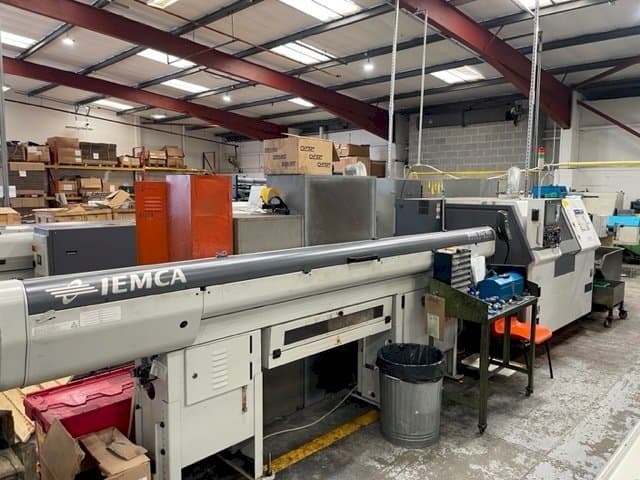

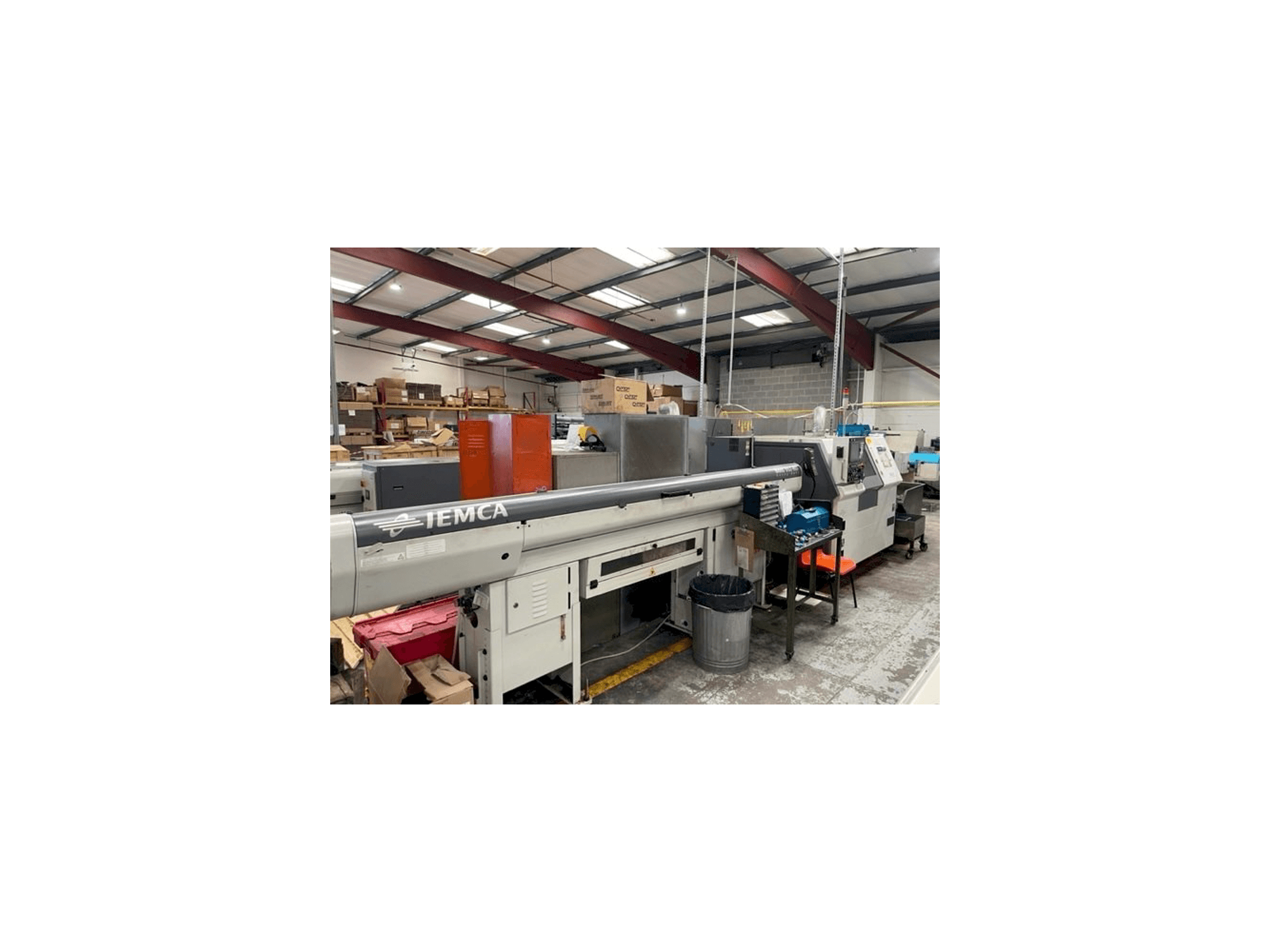

This Miyano BNA-42MSY2 Lathe was manufactured in the year 2017. It is equipped with a Mitsubishi M730VS control unit. The machine has a spindle speed of 6000 rpm.
Overview
- brand: Miyano
- year: 2017
- MODEL: BNA-42MSY2
- application type: Turning
- Location: United Kingdom
- machine type: Lathe
- availability: Immediately
- control unit brand: Mitsubishi
- GINDUMAC ID: GB-TUR-MIY-2017-00001
Technical Information
General Data
- Measurements width: 2388 mm
- Measurements depth: 1450 mm
- Measurements height: 1600 mm
- Machine weight: 3000 kg
Control Unit
- Brand: Mitsubishi
- Model: M730VS
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
Movement
- Y-AXIS Movement: +/- 35 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 8
Additional Information
- Technical Machine Benefits:
- - Distance between spindles: 360 mm
- - Maximum cutting length: 235 mm
- - Maximum cutting diameter: 80 mm
- - Bar capacity: 42 mm
- - Sub spindle b axis movement: 360 mm
- - X1, x2, y, z1, z2: 20 x 12 x 12 x 20 x 20m/minute
- - Spindle motor power: 7. 5/11kw
- - Spindle & sub spindle c axis: 0. 001 degree
- - Sub spindle max speed 5000rpm, power 3. 7/5. 5kw
- - Collet chucks
- Qualitative Machine Benefits:
- - Very good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
