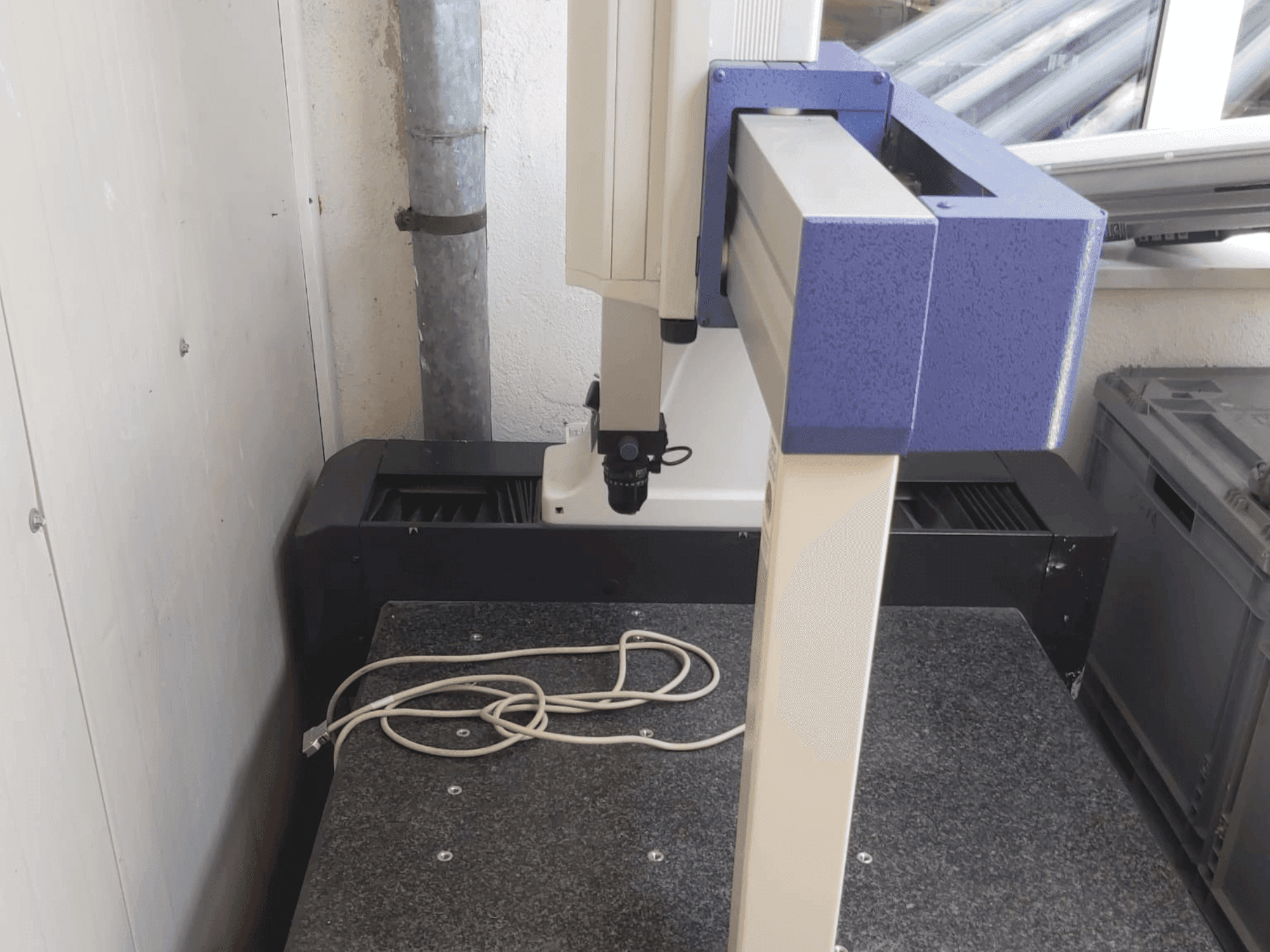

This Mitutoyo Crysta-Plus M443 was manufactured in 2015. It features a measuring range of 400 mm in both X and Y axes, and 300 mm in the Z axis. The granite measuring table ensures stability, and air bearings on all axes provide smooth movement. If you are looking to get high quality measuring capabilities consider the Mitutoyo Crysta-Plus M443 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Mitutoyo
- year: 2015
- MODEL: Crysta-Plus M443
- application type: Measuring
- Location: Romania
- machine type: Coordinate Measuring Machine (CMM)
- availability: Immediately
Technical Information - Mitutoyo Crysta-Plus M443
General Data
- Measurements width: 981 mm
- Measurements depth: 1047 mm
- Measurements height: 1967 mm
- Machine weight: 410 kg
Table
- Table load: 180 kg
Additional Information
- Technical Machine Benefits:
- - Max. Workpiece height: 480 mm
- - No. Of m8 x 1. 25 threaded holes: 13
- - Machine accuracy e = (3. 0 + 4. 0l/1000) µm
- - Probe repeatability r = 4. 0 µm (tp20)
- - Environmental temperature 20 °c ±1 °c
- - Resolution (length measuring system) 0. 5 µm
- - Guidance air bearings on all axes
- - Measuring table material: granite
- - Measuring dimensions: 624 mm × 805 mm
- - Consumption/air pressure: ca. 50 l/min at 0. 35 mpa
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
